Small Gas Powder Coating Oven COLO-0813
group nameGas Powder Coating Oven
-
Min Order1 piece
brand nameCOLO powder coating machine
modelCOLO-0813
payment methodT/T, L/C, MoneyGram
-
update timeTue, 05 Nov 2024 15:49:49 GMT
Paramtents
Delivery Time 7-15 Working Days
Shipping By Sea
Application Metal Finishing Industry
Power LPG/ GAS/ Diesel
Packging & Delivery
Min Order1 piece
Briefing
The small sized powder coating oven can be heated by natural gas/ LPG/ diesel, more energy-saving and environmentally friendly.
Detailed

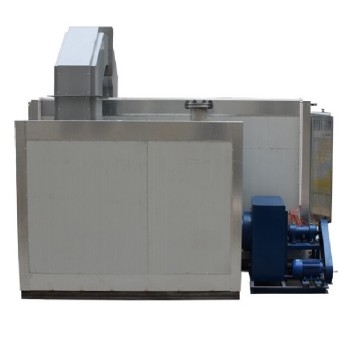

Small Gas Powder Coating Oven COLO-0813
COLO-0813 small powder coating oven applying indirect-fired gas heating system, ensures excellent curing effects and stable quality which is also friendly to environment. Comparing with electric sourced oven, gas furnace leads to remarkably lower long-term running costs especially comparing with those countries whose electricity is expensive.
Product Details
PLC Controller
The electric controller panel controls all functions, it allows to easily set temperature & time as well as displays actual inside temperature to get a wonderful powder coating curing effect.
Powder Coating Oven Trolley
Standardly equipped with two manual trolleys, an inexpensive solution for transporting heavy workparts by using less force. One internal trolley only move in the chamber of oven across the hall that does not pullete the furnace. The external trolley load the internal trolley for outside transportation.
Circulation Fan
1.5kw circulation fan circles the hot air to warm the powder coating oven interior, minimizes temperature difference and guarantee uniform-heated chamber. In order to make parts cure with a quality finish with even gloss and consistent color.
RIELLO Gas Burner
An imported Riello burner takes full utilization of fuels, saving energy at the same time giving much quicker raise to a required temperature. The combustion process is clean and pollution-free.
Powder Coating Oven Material
Interlayer is 100mm thickness rock wool board, maximize the effect of heat preservation.
Inner wall is 1mm heat-resisting galvanized steel.
Outer wall is anti-rust color steel, durable and long lifespan.
Product Parameters
|
Model
|
COLO-0813
|
|
Working Dimension (mm)
|
Width800 * Heght1500 * Depth3000mm
|
Overall Dimension (mm) | Width1200 * Heght1900 * Depth3500mm |
|
Power supply
|
Gas/Diesel/LPG
|
Voltage | 220V/380V(50-60Hz) |
Motor power | 1.5kw |
Warm-up Time | 15-30min (180°C) |
Temperature stability | < ± 3-5°C |
Temperature max. | 250°C |
Circulation/ Air flow | Vertical ,Variable through holes on the walls |
Ventilation performance | 1131-2565m3/h |
Transportation | Trolley |
