Alloy Wheel Powder Coating Oven
group nameElectric Powder Coating Oven
-
Min Order1 piece
brand nameCOLO powder coating machine
modelCOLO-1864
payment methodT/T, L/C, MoneyGram
-
update timeFri, 08 Nov 2024 00:52:18 GMT
Paramtents
Delivery Time 7-15 Working Days
Shipping By Sea
Application Metal Finishing Industry
Packging & Delivery
Min Order1 piece
Briefing
The powder coating oven is designed professionally for the powder curing process after electrostatic spraying, such as wheels.
Detailed

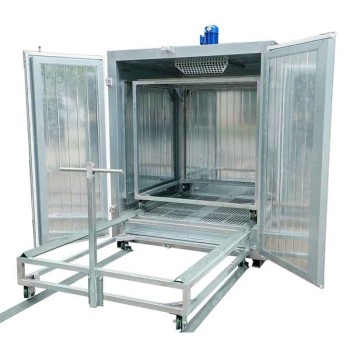

Alloy Wheel Powder Coating Oven
Easy-operated and efficient COLO-1864 powder coating oven, specially designed for wheel curing after powder spraying process. It can be loaded with about 8 pcs of alloy wheels each curing circle. Applies electricity to create energy, offers excellent temperature uniformity which provides you with consistent, high-quality curing results, it provides clean environment and easy operation.
Product Details
PLC Controller
All parameters and functions are set on PLC panel, provides a high precision heating process, such as accurately setting desired temperature & heating time, control the circulation fan. The controller also equipped with audible and visual alarms keys ensures safety operating environment.
Powder Coating Oven Trolley
Standardly equipped with two manual trolleys, an inexpensive solution for transporting heavy workparts by using less force. One internal trolley only move in the chamber of oven across the hall that does not pullete the furnace. The external trolley load the internal trolley for outside transportation.
Circulation Fan
0.75kw circulation fan cycles hot airs in the chamber, minimize temperature difference and guarantee uniform-heated chamber, in order to make parts cure with a quality finish with even gloss and consistent color.
Powder Coating Oven Material
Interlayer is 100mm thickness rock wool board, maximize the effect of heat preservation.
Inner wall is 1mm heat-resisting galvanized steel.
Outer wall is anti-rust color steel, durable and long lifespan.
Product Parameters
|
Model
|
COLO-1864
|
|
Working Dimension (mm)
|
1600width x 1800 height x 1400 depth
|
Overall Dimension (mm) | 1900 width x 2200 height x 1700 depth |
|
Power supply
|
Electric
|
Voltage | 220V/380V(50-60Hz) |
Power supply | Electric/18kw |
Warm-up Time | 15-30min (180°C) |
Temperature stability | < ± 3-5°C |
Temperature max. | 250°C |
Circulation/ Air flow | Vertical ,Variable through holes on the walls |
Ventilation performance | 805-1677m3/h |
Transportation | Trolley |
