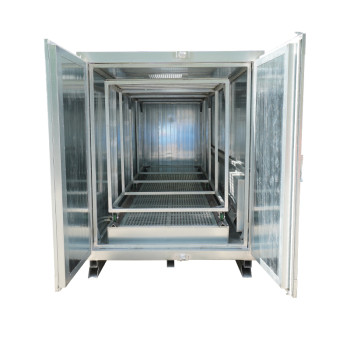

4.5m Length Powder Coating Batch Oven
group nameElectric Powder Coating Oven
-
Min Order1 piece
brand nameCOLO powder coating machine
modelCOLO-1645
payment methodT/T, L/C, MoneyGram
-
update timeThu, 07 Nov 2024 22:35:34 GMT
Paramtents
Delivery Time 7-15 Working Days
Shipping By Sea
Application Metal Finishing Industry
Packging & Delivery
Min Order1 piece
Briefing
The 4.5m powder coating oven is designed for curing bulky parts or a big batch of small-sized parts, such as frames, profiles.
Detailed
4.5m Length Powder Coating Batch Oven
The 4.5 meter length powder curing oven is designed for powder coating bulky parts or a big batch of small-sized parts, such as frames, profiles.
Use electric heating style, powder coating oven always maintain the required temperature with uniform heat distribution through entire chamber, which ensures optimal curing circles without any color difference for the metal surfaces and creates a more clean environment.
Product Details
PLC Controller
All parameters and functions are set on PLC panel, provides a high precision heating process, such as accurately setting desired temperature & heating time, control the circulation fan. The controller also equipped with audible and visual alarms keys ensures safety operating environment.
Circulation Fan
A powerful 3kw circulation fan cycles hot airs in the chamber, minimize temperature difference and guarantee uniform-heated chamber, in order to make parts cure with a quality finish with even gloss and consistent color.
Powder Coating Oven Trolley
Standardly equipped with two manual trolleys, an inexpensive solution for transporting heavy workparts by using less force. One internal trolley only move in the chamber of oven across the hall that does not pullete the furnace. The external trolley load the internal trolley for outside transportation.
Powder Coating Oven Material
Interlayer is 100mm thickness rock wool board, maximize the effect of heat preservation.
Inner wall is 1mm heat-resisting galvanized steel.
Outer wall is anti-rust color steel, durable and long lifespan.
Product Parameters
|
Model
|
COLO-1645
|
|
Working Dimension (mm)
|
Width1500 x Height1650 x Depth4500 mm
|
Overall Dimension (mm) | Width1800 x Height2050 x Depth4800 mm |
|
Power supply
|
Electric
|
Voltage | 220V/380V(50-60Hz) |
Power supply | Electric/54kw |
Warm-up Time | 15-30min (180°C) |
Temperature stability | < ± 3-5°C |
Temperature max. | 250°C |
Circulation/ Air flow | Vertical ,Variable through holes on the walls |
Ventilation performance | 1131-2565m3/h |
Transportation | Trolley |
