Multi Cyclone Powder Coating Spray Booth System
group nameCyclone Powder Coating Booth
-
Min Order1 piece
brand nameCOLO powder coating machine
modelCOLO-Multi Cyclone
payment methodT/T, L/C, MoneyGram
-
update timeFri, 08 Nov 2024 13:51:56 GMT
Paramtents
Delivery Time 30 Working Days
Shipping By Sea
Application Metal Finishing Industry
Packging & Delivery
Min Order1 piece
Briefing
Compact multi cyclone powder coating spray booth system is developed for multi-color opration and quick reliable powder changes.
Detailed
Multi Cyclone Powder Coating Spray Booth System
Multi cyclone booth powder coating spray booth system consists of spray chamber, multicyclone, filter recovery stage, fan motor, whose multi cyclone design maximizes efficiency during color change, minimal powder waste in process at all times due to highest transfer efficiency and air cleaning system, it is ideal for big and continuous powder coating production. Compact structure, multi-cyclone can meet smaller and lower factory size.
Product Details
Powder recovery system
9 units of small cyclone, fast for color change, 9 pcs of high precision cartridge filters for superfine powders collecting. Multi cyclone system ensures powder recovery rate up to 98%, saving color changing time and reduces powder waste. The connection between cyclone and filteration is the air tube.
Overhead Tunnel

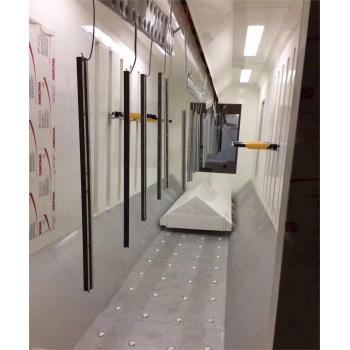

Designed for automatic conveyor systems achieves continuous, uniform and quality powder coating even. Work parts pass through the booth chamber by conveyor driving, achieves uniform and effective powder coating, improve application quality as well as reduce manpower.
Powder Collector Hopper
A collector hopper beneath the cyclone stage, carrying recycling powders, can be transferred to the powder sieving unit of powder management center, reaching for continuous powder feeding.
Product Parameters
|
Model
|
COLO-Multi Cyclone
|
|
Working Dimension (mm)
|
800width x 2000 height x 6000 depth
|
|
Weight
|
4000kg
|
Voltage | 380V/220V. customized as local. |
Power supply | Electric |
Nominal power | 15kw |
Frequency | 50-60Hz |
Filters | Polyester, 16pcs |
Filter cleaning system | Pneumatic |
Booth Material | Wall: Stainless Steel |
Cyclone Material | Stainless Steel |
