Mono Cyclone Powder Coating Booth for Fast Color Change
group nameCyclone Powder Coating Booth
-
Min Order1 piece
brand nameCOLO powder coating machine
modelMono-Cyclone
payment methodT/T, L/C, MoneyGram
-
update timeFri, 08 Nov 2024 11:40:42 GMT
Paramtents
Delivery Time 30 Working Days
Shipping By Sea
Application Metal Finishing Industry
Packging & Delivery
Min Order1 piece
Briefing
Mono cyclone powder coating booth is the optimal choice for fast color change demands in the automatic powder coating line.
Detailed
Mono Cyclone Powder Coating Booth for Fast Color Change
Mono cyclone powder spray booth is the optimal choice for fast color change demands in the automatic powder coating line. Cyclone dust collector is designed to deliver the powder coating industries with most flexible color changing operation, due to the superior efficiency of overspray cleaning and collection.
During powder color change process, this booth system working with the MONO cyclone extraordinary reduces downtime and maximizes working efficiency.
Mono Cyclone Powder Coating Booth Features
1. Cyclone powder booth provides powerful air extraction and equal airflow distribution for perfect powder coating job.
2. Mono cyclone achieves recycling efficiency up to 98%, a great saving of powders, a quick cleaning takes around 15 minutes.
3. With the discharge device of "large-diameter cyclone separator + after filter unit" makes the least powder accumulation and the most environmental-friendly emission.
4. There's air clean system continuously transports over sprayed powder from the booth floor, quickly recycling it back to the powder feed container.
5.Worked with powder coating reciprocator carries auto spray guns for uniform coating job, advanced powder self-recycling feed center ensures maximum utilization of powder and least waste.

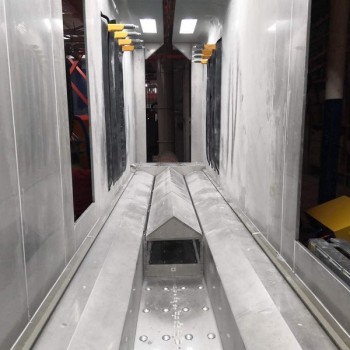

Powder Coating Booth Floor Design
The powder coating booth floor integrated with various air cleaning system. Air-knives are integrated in the side-walls of the stainles steel floor,during operation and cleaning air blasts are periodically released by the air knives, periodically removes the powder accumulated on the booth floor.
The air blastsre move the powder accumulated on the booth floorand push it to the extraction and recovery system. The booth floor remains clean, with just a minimum amount of powder on the booth floor.
Product Parameters
|
Model
|
COLO-Mono Cyclone
|
|
Working Dimension (mm)
|
800width x 2000 height x 6000 depth mm
|
|
Weight
|
4000kg
|
Voltage | 380V/220V. customized as local. |
Power supply | Electric |
Nominal power | 15kw |
Frequency | 50-60Hz |
Filters | Polyester, 32pcs |
Filter cleaning system | Pneumatic |
Booth Material | Wall: Stainless Steel |
Cyclone Material | Stainless Steel |
