Electrostatic Powder Coating Oven for Small Kits COLO-1118
group nameElectric Powder Coating Oven
-
Min Order1 piece
brand nameCOLO powder coating machine
modelCOLO-1118
payment methodT/T, L/C, MoneyGram
-
update timeSat, 21 Sep 2024 13:40:44 GMT
Paramtents
Delivery Time 7-15 Working Days
Shipping By Sea
Application Metal Finishing Industry
Packging & Delivery
Min Order1 piece
Briefing
With working size: 1x1x1.8m, it has enough space for holding batch of small to medium sized parts, such as alloy wheels.
Detailed

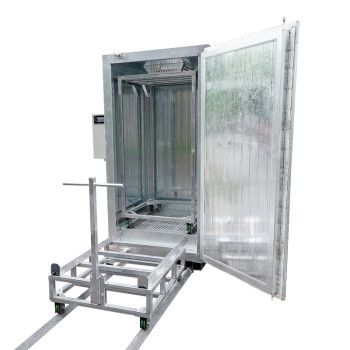

Electrostatic Powder Coating Oven for Small Kits COLO-1118
The electrostatic powder coating oven creates uniform and durable finish thanks to the professional design and high performance components, including 100mm thick rockwool board, circulation fan motor, energy-saving heating elements, easy-to-use PLC controller, etc. The COLO-1118 powder coating oven with not large space is an optimal choice for your wheel or other small kits.
Product Details
PLC Controller
The PLC controller panel controls all functions, it allows to easily set temperature & time as well as displays actual inside temperature to get a wonderful powder coating curing effect.
Powder Coating Oven Trolley
Standardly equipped with two manual trolleys, an inexpensive solution for transporting heavy workparts by using less force. One internal trolley only move in the chamber of oven across the hall that does not pullete the furnace. The external trolley load the internal trolley for outside transportation.
Circulation Fan
A powerful circulation fan cycles hot airs in the chamber, minimize temperature difference and guarantee uniform-heated chamber, in order to make parts cure with a quality finish with even gloss and consistent color.
Powder Coating Oven Material
Interlayer is 100mm thickness rock wool board, maximize the effect of heat preservation.
Inner wall is 1mm heat-resisting galvanized steel.
Outer wall is anti-rust color steel, durable and long lifespan.
Product Parameters
|
Model
|
COLO-1118
|
|
Working Dimension (mm)
|
1000width x 1800 height x 1000 depth
|
|
Power supply
|
Electric
|
Voltage | 220V/380V(50-60Hz) |
Power supply | Electric/9kw(1.5kwx6pcs) |
Warm-up Time | 15-30min (180°C) |
Temperature stability | < ± 3-5°C |
Temperature max. | 250°C |
Circulation/ Air flow | Vertical ,Variable through holes on the walls |
Ventilation performance | 805-1677m3/h |
