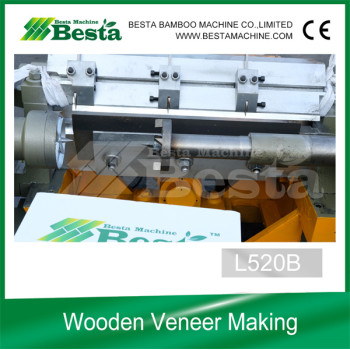

L520B Wood Rotary Cutting Machine, Ice-cream stick machine
group nameWood rotary cutting machine
-
Min Order1 set
brand nameBesta
modelL520B
payment methodT/T
-
update timeSun, 05 Sep 2021 15:00:01 GMT
Paramtents
Name Wood Rotary Cutting Machine
Capacity Process about 2 cubic meter to 2.5 cubic meter woo
Application 1 ice cream stick production line
Application 2 tongue depressor stick line
Application3 ice spoon production line
Packing Plywood Case
Payment T/T in advance
Packging & Delivery
Weight2400.00kg / set
Min Order1 set
Briefing
Detailed
Heavy Wood Rotary Cutting Machine
Technical Data
**Capacity:
It can rotary cutting wood about 2.5 to 3 cubic meters per hour
Power: 15.5 KW
Processing Length: Max. 520MM
The diameter of the Clamp: Max. 780MM
The main axis rotating speed: 240R/MIN
Machine Size: 2500MM*2400MM*1300MM
Machine Weight: 2200 KGS
Our Machine Advantage
For our rotary machine, we improved a lot. The Max. Diameter of the wood we can process is 780mm. while other company max. Diameter is about 330mm. our machine also have good stability, the precision difference is 0.05mm. While other company is about 0.15mm. The rotation speed of our machine can reach 240 R/MIN while other company’s machine is about 163 R/MIN
Usually, the blade we equipped for customer is for processing wood max.480mm length processing.
Whole Production line (From wood-->dried ice-cream stick)
VIDEO LINK:
https://..........com/watch?v=Ewu1LddQplY
https://youtu.be/4whpwpPsVb8
<div style="position:relative;height:0;padding-bottom:56.25%"><iframe src="https://..........com/embed/4whpwpPsVb8?ecver=2" width="640" height="360" frameborder="0" style="position:absolute;width:70%;height:70%;left:0" allowfullscreen></iframe></div>
The process of wood rotary cutting
