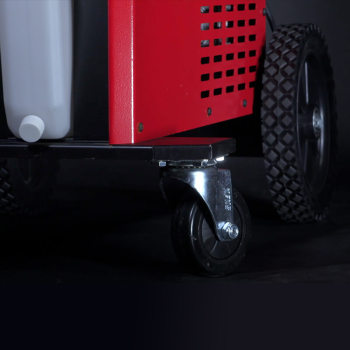

inverter argon tig welder ac dc MASTERTIG-320CT
group nameAll products
-
Min Order1 piece
brand nameTOPWELL
modelMaster TIG-320CT
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeFri, 08 Nov 2024 14:19:09 GMT
Paramtents
Rated Input Voltage 3PH ~ 400V ±15%
Rated Output 320A/22.8V
Open Circuit Voltage 70V~80V
Max. Load Power Capacity 9.13KVA
Warranty 1 year warranty
Weight 75KG
Packging & Delivery
Size99cm x 48cm x 126cm
Weight95.00kg / piece
Min Order1 piece
Briefing
inverter argon tig welder ac dc TIG welding machine mix TIG Welding Machine MASTERTIG-320CT
Detailed
DETAILS
Total Solution of TIG welding
AC/DC TIG & MIX TIG
MASTERTIG-320CT
DC TIG - features the Pulse function, it precisely controls the welding arc, heat input and penetratoin.
AC TIG - with 2 kinds of AC waveshapes(square wave and sin wave), and 3 kinds of AC waveshape controls(Balance, Frequency and Amplitude).
MIX TIG- has both AC current and DC current in one duty cycle, better arc concentration and deeper penetration.
Reliable and Powerful Design - 320A@100% duty cycle, capable for Light Industrial jobs.
High Efficiency TIG Welding
This is a three-phase TIG welder equipped with the latest IGBT modules. It also features an integrated cooling unit that provides efficient cooling for liquid-cooled torches in high-load production welding environments. The shape of the arc, weld penetration, cleaning effects and other characteristics are precisely controlled to ensure that the weld quality is always high.
High Efficiency TIG Welding
Maximum output is up to 320A. It is capable of fast welding of thin metals and continuous welding of thick metals.
Mild steel 12mm V groove, 5 layers;
Layer 1: 300A， Layer 2: 300A，Layer 3: 280A;
Layer 4: 280A， Layer 5: 260A;
Unique MIX TIG
· Deeper penetration
· Substantially reduce the tungsten consumption
Control Panel Description
1. Welding Process
DC TIG/AC TIG/MIX TIG/DC MMA
2. Pulser Control
3. AC Waveshape Types
Advanced Squarewave
Sin Wave
4. MIX TIG
5. AC Waveshape
AC Frequency Range 20Hz~200Hz
AC Clean Width (AC Balance) +40~-40
AC Clean Ratio (ACBias) % +30~-50
AC Frequency control
Controls the width of the arc cone. Increasing the AC Frequency provides a more focused arc with increased directional control.
Note: Decreasing the AC Frequency softens the arc and broadens the weld puddle for a wider weld bead.
AC Balance Control
Controls arc cleaning action. Adjusting the % EN of the AC wave controls the width of the etching zone surrounding the weld.
Note: Set the AC Balance control for adequate arc cleaning action at the sides and in front of the weld puddle. AC Balance should be fine tuned according to how heavy or thick the oxides are.
Amplitude Control
Adjusts the ratio of EN to EP amperage to precisely control heat input to the work and the electrode.
Note: EN amperage controls the level of penetration, while EP amperage dramatically effects the arc cleaning action along with the AC Balance control.
VIDEO
SPECIFICATIONS
Machines
|
Product Name
|
MasterTIG-320CT
|
|
Machines Processes
|
Stick (SMAW)
TIG (GMAW) Pulsed TIG (GTAW-P) |
Product Weights & Dimensions
|
Dimensions(L*W*H)
|
960x420x900mm
|
|
Net Weight
|
80KG
|
Basic Specification
|
Input Voltage
|
3PH ~ 400V ±15%
|
|
Input Power
|
TIG: 9.12KVA MMA: 10.38KVA |
|
Output Range
|
TIG: 20A/10.8V~320A/22.8V MMA: 20A/20.8V~250A/30V |
|
Rated Output(40℃) 100%
|
TIG: 320A/22.8V MMA: 250A/30V |
Polarity | AC/DC |
