Powerful Inox Gouge 160MAX: High-Definition Plasma Gouging System for Weld Repairing and Root Cleaning
group namePlasma Gouging
-
Min Order1 piece
brand nameTOPWELL
modelInox Gouge 160MAX
payment methodWestern Union, T/T
-
update timeFri, 08 Nov 2024 17:49:37 GMT
Paramtents
Input Voltage 380V/440V, 3PH, 50/60Hz
Duty Cycle Rating 40℃(105℉) 160A@100%
Max. Load Power Capacity 40.0KVA
Packging & Delivery
Size75cm x 36cm x 71cm
Weight130.00kg / piece
Min Order1 piece
Briefing
Your Ultimate High-Definition Plasma Gouging System for Weld Repair and Root Cleaning.
Detailed
DETAILS

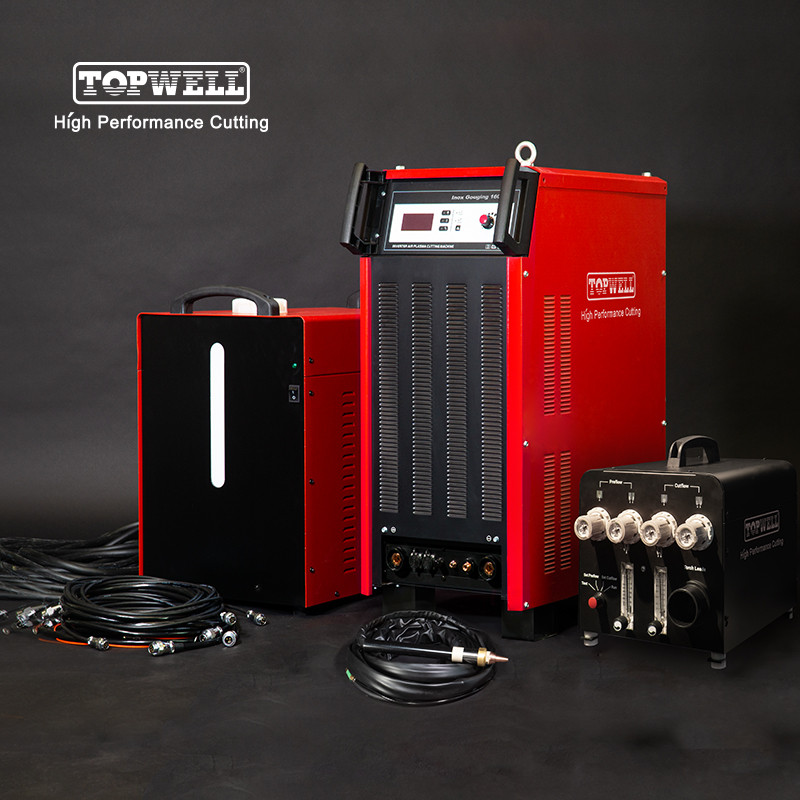

Inox Gouge 160MAX
Compare to the conventional plasma gouging process, the Inox Gouge 160MAX as a high-definition plasma gouging system, achieved more special advantages:
• Multi gas console: make the best applications for any kind metals;
• The best solution for nickle-based alloys;
• Extra high productivity;
• Smooth, clean, consistent gouging without any carburization problems;
• Ready to weld;
• Suitable for manual or mechanized operation methods.
Here is our Inox Gouge 160MAX video
Typical Application
Weld Repairing
Removal of welding imperfections
(cracks, slag inclusions, dents, etc.)
Root Cleaning
root cleaning of finished welds from the reverse side.
MORE FEATURES
Side Blowing
Unique side blowing technology provide good track of gouge process,better control of gouging depth and width, which improve gouging efficiency.
• Good Track Of Gouge Process;
• Protect Consumables Lifetime;
• High Effective-deeper Wider.
Long-life consumables
• Refined torch body structure with extra cooling efficiency;
• Automatic torch protection;
• Automatic ramp-down error protection.
Widely used in shipyard, pressure vessel, electric equipment and other steel structure industries
Capacity
|
System
|
Inox Gouge 160MAX
|
|
|
Speed
|
760-1900mm/min
|
|
|
Standoff
|
9.5-18mm |
|
|
Angle |
30-45°
|
|
Process gases by material (gouging/shield) Operating temperature | Carbon Steel Stainless Steel Aluminum | O2/Air H35/N2 H35/N2 |
Process amps(gouging) | Not all process available for all materials | 30-160A |
VIDEO
SPECIFICATIONS
Machines
|
Product Name
|
Inox Gouge 160MAX
|
Product Weights & Dimensions
|
Dimensions(L*W*H)
|
650x350x840mm |
|
Net Weight
|
130KG
|
Basic Specification
|
Input Voltage
|
380V/400V, 3PH, 50/60Hz
|
|
Input Power
|
40.0KVA
|
|
Rated Output Voltage
|
200VDC
|
|
Max Output Current
|
160A
|
Open Circuit Voltage (OCV) | 430VDC |
Operating Temperature | -10℃~40℃ |
Duty Cycle Rating 40℃(105℉) | 100%@160A |
Torch | TPG160 INOX |
