E580514 SCN-A5-FLT15.0-Z05-0H1-R Touch Screen Glass

group nameFor ELO Touch Panel with 4 / 5 Wires
Min Order1 piece
brand nameVICPAS
modelE580514 SCN-A5-FLT15.0-Z05-0H1-R
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
update timeSun, 03 Nov 2024 01:20:59 GMT

contact supplier

Paramtents

Size 15 Inch
Shipping 2-4 workdays
Warranty 365 days
Name E580514 SCN-A5-FLT15.0-Z05-0H1-R Touch Screen Glass

Packging & Delivery

Min Order1 piece

Briefing

E580514 SCN-A5-FLT15.0-Z05-0H1-R Touch Screen Glass. It is brand new and good quality with a year warranty.

Detailed

E580514 SCN-A5-FLT15.0-Z05-0H1-R Touch Screen Glass repair

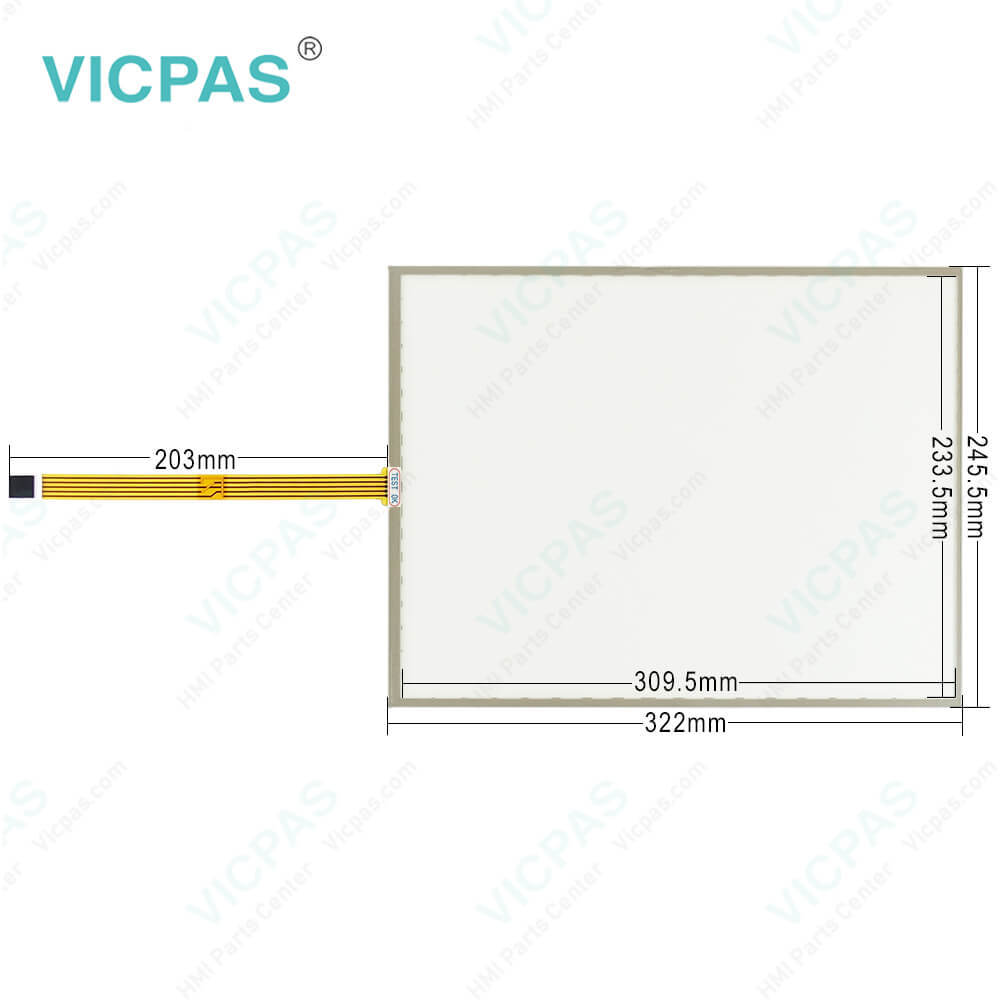

E580514 SCN-A5-FLT15.0-Z05-0H1-R touchscreen size: 15 inch, other custom size is 3.0'' to 24'' . E580514 SCN-A5-FLT15.0-Z05-0H1-R touch membrane adopt to panel display device. E580514 SCN-A5-FLT15.0-Z05-0H1-R touch screen display light transmission: 80%(Meet ASTM D1003). E580514 SCN-A5-FLT15.0-Z05-0H1-R touchscreen temperature operating range: -10°C ~ 60°C. E580514 SCN-A5-FLT15.0-Z05-0H1-R touch panel temperature storage range: -20°C ~ 70°C. E580514 SCN-A5-FLT15.0-Z05-0H1-R touch screen tablet resistance: 300Ω < X Axis < 900Ω, 200Ω < Y Axis < 800Ω (Varies with different size). E580514 SCN-A5-FLT15.0-Z05-0H1-R HMI touch glass operation system including: Linux / DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS etc.

Contact VICPAS for A Discount

Product Details:

Size : 15 inch;
Shipping : 2~3 Workdays
Warranty : 365 Days
Surface Hardness : 3H
Circuit Rating : 5VDC @ 35mA
Light Transmission : Film + Film 77%, Film + Glass 83%

* Electrical
Contact Bounce : <10ms
Rersolution : 4096 x 4096
Linearity : 1.5%(<1.0% by Request)
Life Expectancy : > 35 million touch on single point
