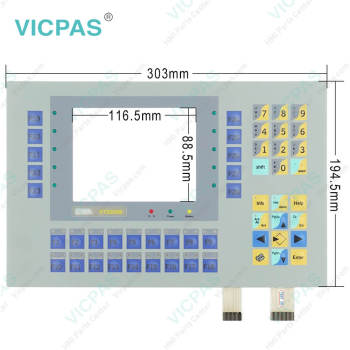

Membrane keyboard for ESA VT320W AP000 Replacement
group nameVT Text & Graphic
-
Min Order1 piece
brand nameVICPAS
modelVT320W AP000
payment methodWestern Union, T/T, PayPal, T/T ,Credit Card, Western Union
-
update timeFri, 08 Nov 2024 14:44:28 GMT
Paramtents
Brand ESA
Warranty 180 Days
Product Line VT Text
Supply VT320W Membrane Keypad
Packging & Delivery
Min Order1 piece
Briefing
Detailed
ESA TEXT HMI VT320W VT320WAP000 Membrane Keyboard Replacement
Order each part separately is available
ESA VT320W AP000 Graphic LCD16 colors STN 320x240 (5.7”) - 52 keys Interfaces: MSP, ASP - Project: 512 KB - Recipes: 128 KB
ESA VIDEO TERMINAL (VT) is a device that allows the user to control orsimply monitor a productive process. It can send commands using configuredby the user; it can send data determining the process on hand andcan display information deriving from the productive process. The informationcan be in the form of an Alarm, an Information (Info-) Message or inbinary data format.
VICPAS supply ESA TEXT HMI VT320W membrane switch with 6 months warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the ESA VT320WAP000 HMI Parts.
| Brand: | ESA |
| Display Type: | Graphic LCD 16 colors STN |
| Resolution: | 320x240 |
| Warranty: | 6-Months Warranty |
| Product Line: | VT TEXT |
| Display Type: | TEXT LCD |
| Display area size: | 4.55x3.43 |
| Columns by Rows: | Depending on used Font |
| Size: | 5.7" |
| Part Number: | VT320WAP000 |
Related ESA VT320W Part No. :
| ESA VT320W | Description | Inventory status |
| VT320WA0000 | ESA Text HMI VT320W VT320WA0000 Membrane Keypad Replacement | In Stock |
| VT320WAP000 | Membrane keyboard for ESA VT320W AP000 Replacement | In Stock |
| ESA VT TEXT | Description | Inventory status |
ESA VT320W Operator Panel HMI Manuals PDF Download:
FAQ:
Question: How to adjust the contrast on the ESA VT320W Display?
Answer:To improve the quality of the representation on the display it may be necessaryto adjust its contrast. This can be done by rotating the trimmer (C) atthe back of the VT ; turn it (using a small screwdriveror a trimmer tool) in one direction and, if the display quality worsens,turn it the other way.
Question: What is the VT320W Termination of CAN line?
Answer:The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:
• Make sure the device is not connected to the power supply.
• Remove the cover.
• Identify the jumper unit J2.
• Position the jumper between pins 2 and 3 (line terminated).
• Replace the back cover.
• Reconnect the power supply.
Question: What is ESA VT320W mebrane keyboard HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
T320WAP000V320WAP000
VT20WAP000
VT30WAP000
VT32WAP000
