group nameSimatic KP Series
Min Order1 piece
brand nameVICPAS
model6AV3688-3AY36-0AX0 6AV3688-3XY38-3AX0
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
update timeTue, 05 Nov 2024 13:28:43 GMT
Type Resistance touch screen
Warranty 180 Days
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX

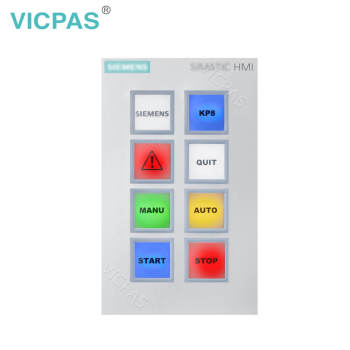

Name 6AV3688-3AY36-0AX0 6AV3688-3XY38-3AX0 Membrane Key
Min Order1 piece
The 6AV3688-3AY36-0AX0 6AV3688-3XY38-3AX0 Membrane Switch Keypad HMI device shows you operating states of a plant. You can actively control a running production process based on this information.
The 6AV3688-3AY36-0AX0 6AV3688-3XY38-3AX0 Keypad Membrane Switches HMI device is designed for mounting in control panels, and replaces keys and LEDs that are individually mounted. The 6AV3688-3AY36-0AX0 6AV3688-3XY38-3AX0 HMI device is connected via PROFINET to a SIMATIC controller.
The 6AV3 688-3AY36-0AX0 6AV3 688-3XY38-3AX0 Membrane Keypad Overlay HMI device is parameterized for immediate use. In comparison to conventional wiring, substantially less time is needed for commissioning and the device provides increased security against failure during runtime.
The KP8 and the KP8F are intended for installation in the following extension units:
● Extension Unit 15", Order number 6AV7674-0KG00-0AA0
● Extension Unit 19" left, order number 6AV7674-0KH00-0AA0
● Extension Unit 19" right, order number 6AV7674-0KJ00-0AA0
VICPAS supply 6AV36883AY360AX0 6AV36883XY383AX0 Siemens KP8 membrane switch, Power Connector, Main Board, Mounting Clips and Plastic Shell with 6 months warranty and support Urgent Worldwide Shipping.
The table below describes the parameters of the 6AV3688-3AY36-0AX0 6AV3688-3XY38-3AX0 Siemens KP8 series HMI Parts.
Ambient Temperature: | 0 °C ~ 55 °C |
Product Type: | KP8 |
Membrane keyboard: | Yes |
Product Line: | Siemens KP8 series |
Warranty: | 6 mouths Warranty |
Function Keys: | 8 |
Rated value (DC) | 24 V |
Short-stroke Keys: | 8 |
Mounting Position: | vertical |
Mounting Type: | Mounting clip |
Related Siemens KP8 Series Part No. :
Siemens KP8 Series | Description | Inventory status |
6AG1688-3AF37-2AX0 | Siemens KP8 Series Membrane Keypad Overlay Repair | Available Now |
6AG1688-3AY36-2AX0 | SIMATIC HMI KP8 Membrane Keyboard Replacement | In Stock |
6AG1688-3XY38-2AX0 | Siemens KP8 Series Membrane Keypad Switch Repair | In Stock |
6AV3688-3AF37-0AX0 | SIMATIC HMI KP8 HMI Keypad Membrane Switch Replacement | In Stock |
6AV3688-3AY36-0AX0 | SIMATIC HMI KP8 Membrane Switch Keypad Replacement | Available Now |
6AV3688-3XY38-3AX0 | SIMATIC HMI KP8 Membrane Keyboard Keypad Repair | In Stock |
SIMATIC HMI KP8 | Description | Inventory status |
Question: 6AV3688-3AY36-0AX0 6AV3688-3XY38-3AX0 Mounting position
Answer: Select one of the approved mounting positions for your HMI device. The following figure shows the front and side view of the permitted mounting positions using the KP8(F) as an example; it applies to the KP32F in the same way.
Question: What is the 6AV3 688-3AY36-0AX0 6AV3 688-3XY38-3AX0 Siemens KP8 series HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Question: How to install SIMATIC KP8 6AV3688-3AY36-0AX0 6AV3688-3XY38-3AX0 Labeling keys?
Answer: The following figure shows the KP8F as an example.
When installed, the labeling strips can be inserted if the mounting has a material thickness of < 3.5 mm. With larger material thicknesses, the disassembly of the 6AV3688-3AY36-0AX0 6AV3688-3XY38-3AX0 Keyboard membrane HMI device is required if a labeling strip should be changed.
