Beijer HMI X2 pro 4 630000105 Touch Panel Repair
group nameX2 Series HMI
-
Min Order1 piece
brand nameVICPAS
modelX2 pro4
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
-
update timeFri, 08 Nov 2024 05:39:39 GMT
Paramtents
Brand Beijer
Warranty 365 Days
Product Line X2 pro
Resolution 480x272 pixels

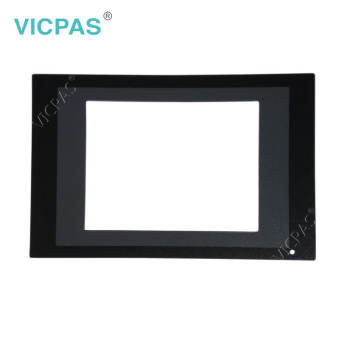

Supply Beijer X2 pro 4 Touch Screen and Overlay
Part Number 630000105
Packging & Delivery
Min Order1 piece
Briefing
Detailed
Beijer HMI X2 Pro 4 630000105 Touchscreen Repair Replacement
Beijer X2 Pro 4 630000105 5 INCH HMI with iX runtime HMI Repair kit
• 480 × 272 pixel (16:9)
• TFT-LCD touch screen
• 1.5 GB application memory
• Ethernet 1x100 Mbit
• -10°C to +60°C operating temperature
• CE, FCC, KCC, UL approvals
• DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals
X2 pro includes a wide range of high performance industrial panels from ultra-compact 4-inch to 21-inch panels designed for demanding applications. All with the high performance of powerful ARM Cortex-A9 processors, the latest screen technology and a wide range of connectivity options to cover all your automation needs.
VICPAS supply Beijer X2 pro 4 Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 630000105 Beijer X2 Pro 4 HMI Parts.
| Brand: | Beijer |
| Part number: | 630000105 |
| Size: | 4.3 INCH |
| Warranty: | 365 Days Warranty |
| Product Line: | X2 Pro 4 |
| Size diagonal: | 480x272 pixel |
| Display type: | TFT-LCD |
| Touch type: | Resistive |
| Input voltage: | 20 - 30 V DC |
| Power: | 12W |
Beijer X2 Pro 4 Touch Panel HMI Manuals PDF Download:
FAQ:
Question: How to install the Beijer X2 Pro 4 Touch Panel?
Answer:1. Unpack and check the delivery. If damage is found, notify the supplier.
2. To cut a correct opening for the operator panel, use the cut out dimensionsin the outline drawing. Aseparate cut out drawing is available for download from theBeijer Electronics web site. Formore information, see sections Operator Panel Drawings andTechnicalData.
3. Install the operator panel into the cutout.
4. Secure the operator panel in position by screwing the slotted thumb screwclockwise, allowing the built-in bracket toflipout and tightenagainst thecabinet
5. Secure the operator panel in position using the built-in brackets or screws,depending on the panel type.
6. In caseswhere the front panel seal (IP54 or greater, NEMA-4X) is critical,a torquewrench shouldbeused to ensure all screws are torquedwithinthespecification above
Question: Why the Beijer X2 Pro 4 HMI have the chemical resistance?
Answer:Autoflex EBA180L covers the overlay surrounding the screen.
Question: What is Beijer X2 Pro 4 Touchscreen and Overlay HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
6000010563000105
63000105
63000105
63000105
