6ES7635-2EB00-0AE3 C7-635 Touch Screen Membrane Switch Shell

group nameSimatic C7 Series
Min Order1 piece
brand nameVICPAS
model6ES7635-2EB00-0AE3
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union
update timeFri, 08 Nov 2024 23:56:16 GMT

contact supplier

Paramtents

Brand Siemens
Warranty 365 Days
Product Line Siemens C7 series
Width 257.5mm
Height 229mm
Supply Siemens C7 series Touchscreen Front Overlay
model 6ES7635-2EB00-0AE3

Packging & Delivery

Min Order1 piece

Briefing

6ES7635-2EB00-0AE3 Siemens Simatic HMI C7 635 membrane keyboard. 365 Days Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

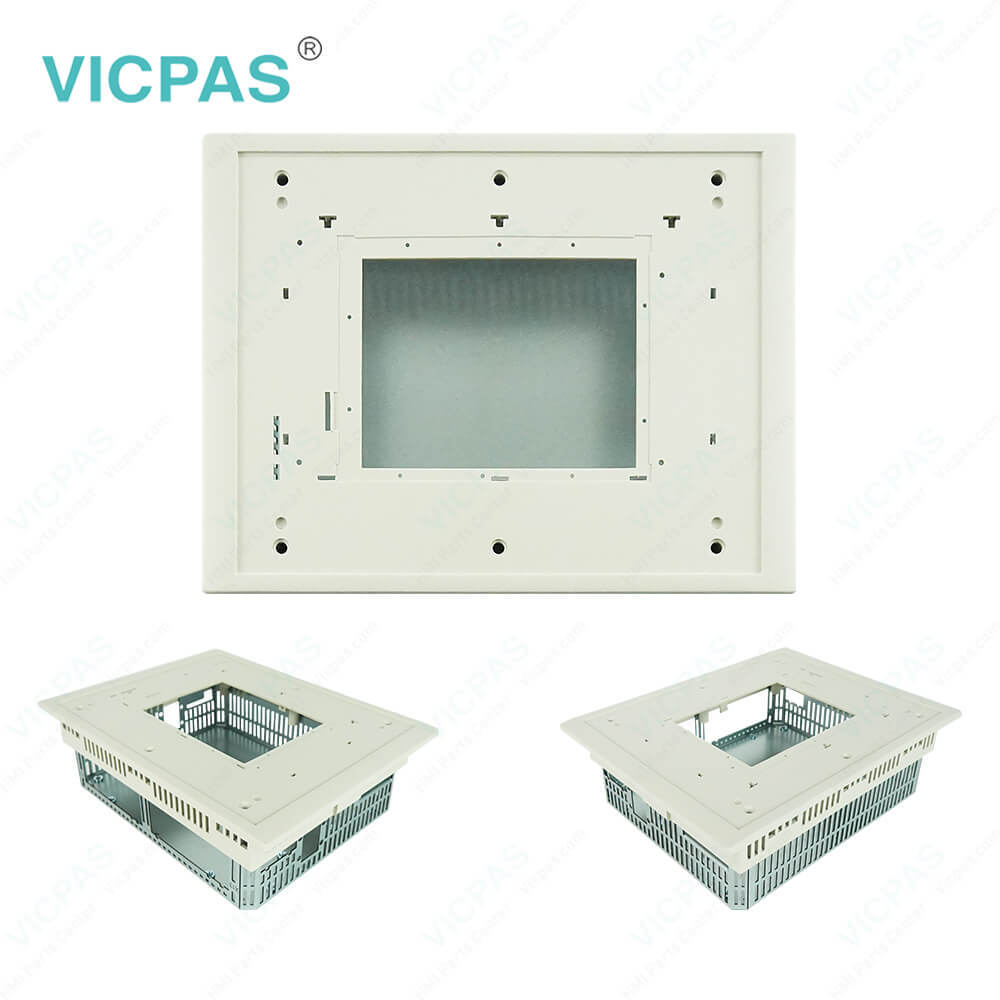

6ES7635-2EB00-0AE3 Siemens SIMATIC HMI C7-635 Touchscreen Protective Film LCD Screen Plastic Shell Repair Replacement

Order each part separately is available

6ES7635-2EB00-0AE3 Siemens SIMATIC HMI C7-635 Touchscreen, Protective Film, LCD Screen, Plastic Shell, Mounting Clips, Gasket and Power Supply Connector Repair Replacement

6ES7635-2EB00-0AE3 SIMATIC C7-635 TOUCH, COMPACT UNIT WITH INTEGRATED COMPONENTS: S7-300 CPU314C-2 DP AND TP170B, 24 DI, 16 DO, 5 AI, 2 AO

The SIMATIC C7-635 consists of the following components::
• SIMATIC S7 314C-2 DP CPU
• SIMATIC touch panel TP170 B or operator panel OP170 B

The 6ES7635-2EB00-0AE3 touch panel and the operator panel of the C7-635 are based on the standardWindows CE operating system. You can visually display operating modes, current process values, and faults. You can also make entries on the C7-635. Simple machine diagnostic functions are also possible.

You can also incorporate your own graphics, digital pictures, and scanned images into your project. Moreover, you can represent elements such as temperature variations graphically using bar graphs and diagrams.

VICPAS supply 6ES7635-2EB00-0AE3 Siemens C7 635 membrane switch, touch screen, LCD display, Gasket, Mounting Clips and Power Supply Connector and enclosure with 365 days warranty and support Urgent Worldwide Shipping.

Contact Best Price

Specifications:

The table below describes the parameters of the 6ES7635-2EB00-0AE3 Siemens c7-635 HMI Parts.

Part Number :	6ES7635-2EB00-0AE3
Firmware version:	V2.0.12
Programming:	STEP 7 V5.2 + SP1
Warranty:	6-Months Warranty
Product Line:	Siemens c7-635

Rated value (DC):	24 V
Number of digital outputs:	16
Design as touch screen:	YES
Keyboard fonts:	US English
Interface type:	Integrated RS 485 interface

Related Siemens Simatic C7-635 Part No. :

Siemens C7-635	Description	Inventory status
6ES7635-2EC00-0AE3	SIMATIC C7-635 KEYS	In Stock
6ES7635-2EC01-0AE3	SIMATIC C7-635 KEYS	In Stock
6ES7635-2EC02-0AE3	SIMATIC C7-635 KEYS	Available Now
6ES7635-2SE00-0AE3	SIMATIC C7-635 KEYS	In Stock
6AG1635-2EC02-4AE3	SIPLUS C7-635 KEY	In Stock
6AG1635-2SB02-4AC0	SIPLUS C7-635 KEY GEA LS2	Available Now
6AG1935-2SB00-4AC0	SIPLUS C7-635 KEY GEA	In Stock
6ES7635-2EB00-0AE3	SIMATIC C7-635 TOUCH	Available Now
6ES7635-2EB01-0AE3	SIMATIC C7-635 TOUCH	In Stock
6ES7635-2EB02-0AE3	SIMATIC C7-635 TOUCH	Available Now
6ES7635-3SE00-0AE3	SIMATIC C7-635 TOUCH	In Stock
SIMATIC C7 635	Description	Inventory status

Siemens C7 635 series HMI Manuals PDF Download:

6ES7635-2EB00-0AE3 SIMATIC HMI c7 635 datasheet pdf

Siemens Simatic c7-635 series HMI operator panel keypad manual

FAQ:

Question: What should we know when programing??

Answer:You program the C7-635 Touch with STEP 7 as of V 5.2 + Service Pack 1 +Hardware Update C7-635 Touch V2.0.
You program the C7-635 Key with STEP 7 as of V 5.2 + Service Pack 1 +Hardware Update C7-635 Key V2.0.

Question: How to install 6ES7635-2EB00-0AE3 Simatic c7-635 ?

Answer:1.C7-635 Touch:Make a cutout in the control cabinet door(dimensions 231+1.0 x 183+1.0 mm).
C7-635 Key:Make a cutout in the control cabinet door(dimensions 231+1.0 x 257+1.0 mm).
2.Ensure that no Compact Flash Card (CF Card) is inserted into the C7-635.The CF Card protrudes from the C7-635 and could be damaged when thedevice is installed.
3.Place the C7-635 in the prepared cutout in the control cabinet door. Ensurethat the gasket is applied evenly to the metal plate.
4.Guide the fastening hooks of the provided mounting supports (for theC7-635 Touch, 8 mounting supports; for the C7-635 Key, 10 mountingsupports) into the intended recesses in the C7-635 housing. Figure 3-2provides an example of the mechanical fastening of the C7-635 Touch.
5.Using a screwdriver, tighten the C7-635 evenly and crosswise from behindin the control cabinet door until the front panel of the C7-635 rests on thecontrol cabinet door. Situate the device so that there is even spacing onall sides between the housing and the cutout section

Question: What is the 6ES7635-2EB00-0AE3 Siemens C7-635 mebrane switch and shell HMI parts price?

Answer: Submit a fast quote, send VICPAS an email for best price.
