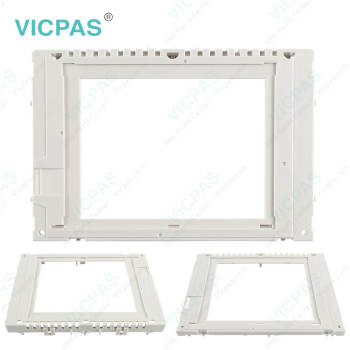

6AV6545-0BC15-2AX0 Siemens SIMATIC HMI TP170B Touchscreen

group nameTouch Panel
Min Order1 piece
brand nameVICPAS
model6AV6545-0BC15-2AX0
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
update timeFri, 08 Nov 2024 22:32:57 GMT

contact supplier

Paramtents

Warranty 365 Days
Brand Siemens
Product Line TP170
Supply Siemens TP170 HMI Touch Panel And Protecitve film
Size 5.7 inch
model 6AV6545-0BC15-2AX0
Parts Touch Screen LCD Display Plastic Case

Packging & Delivery

Min Order1 piece

Briefing

Siemens SIMATIC HMI TP170a Touch Panel, Overlay and LCD Display. 365-day Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

6AV6545-0BC15-2AX0 Siemens SIMATIC HMI TP170 Touch Screen Panel, Overlay, Plastic shell, Case Gasket, LCD Gasket, Mounting Clips, LCD Bracket, Power Supply Connector, Screws and LCD Display Repair

Order each part separately is available

6AV6545-0BC15-2AX0 Siemens SIMATIC HMI TP170 Touch Screen Panel, Overlay, Plastic shell, Power Supply Connector, Mounting Clips, LCD Gasket, Case Gasket, LCD Bracket, Screws and LCD Display Repair Replacement

6AV6545-0BC15-2AX0 SIMATIC Touch Panel TP170B Color STN-Color-Display MPI/PROFIBUS DP interface Printer/RS232 interface Slot for CF card configurable with ProTool/Lite as of Version V5.2+SP2

The SIMATIC Touch Panel TP 170B color panel from the SIPLUS extreme product range is available for substitution of the affected SIPLUS TP 170B color panel for applications under harsh ambient conditions. A SIPLUS version for use at extended temperature ranges is presently not available.SIPLUS extreme is the product family with ruggedized and refined components on the basis of SIMATIC standard products.

TP 170b Features
● 5.7" STN display; resolution of 320 x 240 pixels
● Rugged and compact; shallow mounting depth of 45 mm (device dimensions compatible to the TP 070)
● Multi-Master communication for the integration into networks
● Onboard MPI/PPI
● Alarm system with freely definable alarm classes and alarm history
● Password system
● Alarm indicator for displaying machine and system states
● 5 Languages (can be switched online), including Asian and Cyrillic
● Short configuration and commissioning times
● Service-friendly due to maintenance-free construction and long life of the display backlight

VICPAS supply 6AV6545-0BC15-2AX0 Siemens TP170 touch panel, Overlay, LCD Bracket, Mounting Clips, Power Supply Connector, LCD Gasket, Case Gasket, Screws, Plastic Housing and LCD display. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.

Contact Best Price

Specifications:

The table below describes the parameters of the 6AV6545-0BC15-2AX0 Siemens TP170 HMI Parts.

Part Number :	6AV6545-0BC15-2AX0
Size	5.7"
Display	STN Display (LCD)
Warranty:	365 days Warranty
Product Line:	Siemens TP170

Resolution:	320 x 240;
Color Depth:	4 Blue Levels
Touchscreen:	Analog/resistive
MTBF of Backlight:	approx. 50,000 h
PLC Connection:	SIMATIC S7-200

Related Simatic TP170 Part No. :

Siemens TP170	Description	Inventory status
6AV6640-0CA01-0AX0	TP170 MICRO	In Stock
6AG1545-0BC15-2AX0	SIPLUS HMI TP170B COLOR	In Stock
6AV6545-0BA15-2AX0	TP170A TOUCH PANEL BLUE MODE STN-DISPLAY	In Stock
6AV6545-0BB15-2AX0	TP170 TOUCH PANEL	In Stock
6AV6545-0BC15-2AX0	TP170 TOUCH PANEL	In Stock
SIMATIC HMI TP170	Description	Inventory status

Siemens TP170 HMI Manuals PDF Download:

6AV6545-0BC15-2AX0 Siemens TP170 datasheet pdf

Siemens Simatic TP170 Panel manual

FAQ:

Question:How to install the TP170 HMI device?

Answer:To complete the installation, four spring terminals are required from the accessories for the TP 170micro, TP 170A and TP 170B and six spring terminals are required for the OP 170B. The installation seal must be mounted on the HMI device. If the installation seal is damaged, order a replacement.

Question: Which software options are available for the Siemens TP170?

Answer:WinCC Flexible/Sm@rtServiceThe Sm@rtService option enables you to access a remote HMI device from theHMI device or PC via Ethernet.

Question: What is the 6AV6545-0BC15-2AX0 Siemens TP170 HMI parts price?

Answer: Submit a fast quote, send VICPAS an email for best price.
