DMC AST-047A070A Touch Screen Panel Glass Original
group nameATP/AST Series
-
Min Order1 piece
brand nameVICPAS
modelAST-047 AST-047A070A
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
-
update timeFri, 08 Nov 2024 22:58:49 GMT
Paramtents
Touch screen panel type Resistance touch screen
Size 4.5 inch
Warranty 365 Days
Shipping 2-3 working Days
Modle AST-047 / AST-047A070A
Tail Length & Position 70mm (Top Side)
External Dimension(E) 111.2 x 88.0mm
Glass Thickness(Total) 1.1mm (1.4mm)
Packging & Delivery
Min Order1 piece
Briefing
Detailed

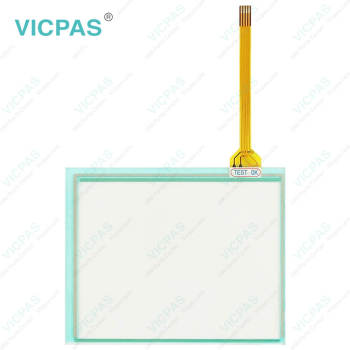

DMC AST-047A070A Touch Screen Panel Glass Original Repair Replacement
VICPAS supply DMC AST-047A070A Touch Screen Panel Glass Original for repair replacement. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.
The AST-047A work Maximum Voltage DC6V with 100mA Top Electrode, Bottom Electrode 100mA, Between the Top and Bottom. The touch screen type is analog resistive 4-wire. Highly durable and versatile. Operation is guaranteed up to as many as 10 million strokes (4-wire type)/ 35 million strokes (5-wire type). DMC AST-047A070A touchscreen panel work Operating Temperature: -20 °C to 70 °C (no condensation), Operating Humidity -20°C to 60°C Less than 90%RH (no condensation) Exceeding 60°C 133.8g/m3 (no condensation).
Specifications:
The table below describes the parameters of the DMC AST-047A070A Touchscreen Panel Glass.
| Part Number : | AST-047A070A |
| Manufacturer: | DMC |
| Screen diagonal | 4.7 in |
| Warranty: | 365 Days Warranty |
| Interfaces | USB / RS232 |
| Touchpoints: | 1 |
| Glass Strength: | 1.1 mm |
| Technology: | Analog resistive 4-wire |
| Active Area: | 98.0 x 74.0mm |
| Viewing Area Dimension | 100.0 x 76.0mm |
What is 4wire Resistive Touch Screen
A 4wire resistive touch screen is a very simple touch sensor that uses dual layers of a flexible, conductive material that deforms under a touch and the layers make contact, the position of this contact is determined by the change in resistance of the circuits.
A 4wire type resistive uses 4 electrodes, one along each edge, and the touch controller alternates between sensing x and y axis readings using electrodes on opposite sides to carry a voltage difference and one of the adjacent electrodes to sense the touch.
Common misspellings:
AST-047070A
AST-047A70A
AST-047A00A
AST-047A07A
AST-047A070
