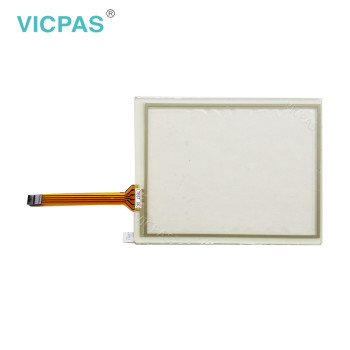

Beijer X2 marine 7 HB Touchscreen 630008705 Replacement
group nameX2 Series HMI
-
Min Order1 piece
brand nameVICPAS
modelX2 marine 7 HB
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
-
update timeFri, 08 Nov 2024 11:30:54 GMT
Paramtents
Brand Beijer
Product Line X2 marine
Warranty 365 Days
Resution 800 × 480 pixel
Part Number 630008705
Packging & Delivery
Min Order1 piece
Briefing
Detailed
Beijer HMI X2 marine 7 HD Touchscreen Repair Replacement
Beijer X2 marine 7 HD 630008705 7 INCH HMI with iX runtime HMI Repair kit
• 800 × 480 pixel (16:9) TFT-LCD touch screen
• 1.5 GB application memory
• Ethernet 2x100 Mbit
• High brightness display and digital outputs
• CE, FCC, KCC, UL approvals
• DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals
X2 marine panels offer user-friendly, reliable operation off-shore, on ships and in other maritime applications. With black frame and nautical society certifications, panels are suitable for mounting on the bridge, in the engine room and inside cabins. X2 marine panels are available with optional high brightness display and integrated CODESYS PLC functionality.
VICPAS supply Beijer X2 marine 7 HD Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 630008705 Beijer X2 marine 7 HD HMI Parts.
| Brand: | Beijer |
| Part number: | 630008705 |
| Size: | 7 INCH |
| Warranty: | 365 Days Warranty |
| Product Line: | X2 marine 7 HD |
| Size diagonal: | 800x480 pixel |
| Display type: | TFT-LCD |
| Housing material: | Plastic (PC+ABS), Gray |
| Input voltage: | 20 - 30 V DC |
| Power: | 6 W |
Beijer X2 marine 7 HD Touch Panel HMI Manuals PDF Download:
FAQ:
Question: How to install the Beijer X2 marine 7 HD Touch Panel?
Answer:1. Unpack and check the delivery. If damage is found, notify the supplier.
2. Place the operator panel on a stable surface during installation. Dropping theoperator panel or letting it fallmay cause damage.
3. To cut a correct opening for the operator panel, use the cut out dimensionsin the outline drawing. Aseparate cut out drawing is available for downloadfrom theBeijer Electronics web site. Formore information, see sectionsOperator PanelDrawings andTechnicalData.
4. Secure the operator panel in position using all the fastening holes and theprovided brackets and screws
5. Connect the cables in the specified order, according to the drawing and stepsbelow.
6. Carefully remove the protective film over the operator panel display, take careto avoid static electricity that could damage the panel.
Question: Why the X2 marine 7 HD HMI have the chemical resistance?
Answer:Autoflex EBcovers the overlay surrounding the screen.
Question: What is Beijer X2 marine 7 HD Touchscreen and Overlay HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
6000870563008705
63008705
63008705
