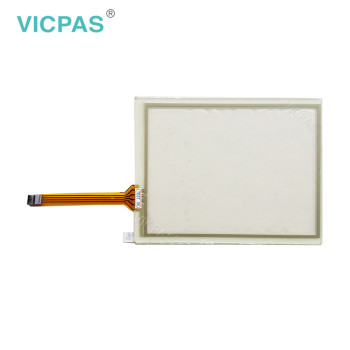

Beijer HMI iX T12C-C20 100-0583 Touchscreen Replacement
group nameiX TxX Operator Panels
-
Min Order1 piece
brand nameVICPAS
modeliX T12C-C20
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
-
update timeFri, 08 Nov 2024 23:58:00 GMT
Paramtents
Brand Beijer
Warranty 365 Days
Product Line iX TxX
Resolution 1280 × 800
Supply Beijer iX T12C-C20 Touchscreen
Part Number 640000202
Size 12 INCH
Packging & Delivery
Min Order1 piece
Briefing
Detailed
Beijer HMI iX T12C-C20 100-0583 Touchscreen Repair Replacement
Beijer iX T12C-C20 100-0583 12 INCH HMI with iX runtime HMI Repair kit
• 12.1" TFT-LCD touch screen
• 1280 × 800 (16:10)
• Application storage 1.4 GB
• Operating temperature -10 to +50 °C
• CE and UL508 approvals
iX TxX operator panelsRanging from 21-inch industrial PCs to ultra-compact 4-inch panels, all models have high performance CPUs and the latest screen technology.
VICPAS supply Beijer iX T12C-C20 Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 100-0583 Beijer iX T12C-C20 HMI Parts.
| Brand: | Beijer |
| Part number: | 100-0583 |
| Size: | 12 INCH |
| Warranty: | 365 Days Warranty |
| Product Line: | iX T12C-C20 |
| Size diagonal: | 1280 × 800 pixel |
| Display type: | TFT-LCD |
| Touch type: | Resistive |
| Input voltage: | 20 - 30 V DC |
| Power: | 12W |
Beijer iX T12C-C20 Touch Panel HMI Manuals PDF Download:
FAQ:
Question: How to ground the iX TxX Series Operator Panel?
Answer:1. Connect a 2.5mm2 wire between the operator panel’s quick-connect plinth and the panel’s chassis, see 2 in drawing above.
2. Connect a 6mm2 or 4mm2 wire or grounding braid between the operator panel’s chassis and the closest grounding point on the door, see 3 in drawing above.
3. Connect a strong but short grounding braid between the door and the devicecabinet, see 4 in drawing above.
4. Twist the cables onto the 24VDCfeed, see 5 in drawing above. Minimumcross-section of the cable is 2.5mm2.2 turns around the ferrite core provide 4 times the suppression of 1 turn.3 turns around the ferrite core provide 9 times the suppression of 1 turn.
Question: Why the Beijer iX T12C-C20 HMI have the chemical resistance?
Answer:Autoflex EBA180L covers the overlay surrounding the screen.
Question: What is Beijer iX T12C-C20 Touchscreen and Overlay HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
00-058310-0583
10-0583
1000583
100-583
