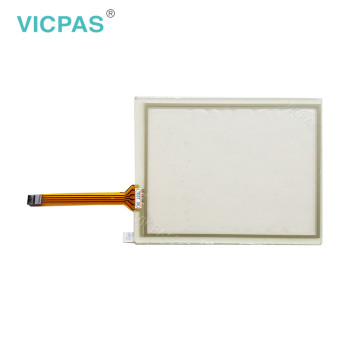

Beijer HMI QTERM A12 317992 Touch Panel Replacement
group nameOther Old Beijer HMI Part
-
Min Order1 piece
brand nameVICPAS
modelQTERM-A12
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
-
update timeFri, 08 Nov 2024 19:37:25 GMT
Paramtents
Brand Beijer
Warranty 365 Days
Product Line QTERM Series
Resolution 800 x 480
Supply QTERM A12 Touchscreen
Part Number 317992
Size 12 INCH
Packging & Delivery
Min Order1 piece
Briefing
Detailed
Beijer HMI QTERM-A12 317992 Touchscreen Repair Replacement
Beijer QTERM-A12 317992 12 INCH HMI with iX runtime HMI Repair kit
QTERM-A12 features a TFT color SVGA (800 x 600 pixels) LCD display that measures308 mm (12.1") diagonally. The display backlight has a typical rating of 450 nit. A clear analog-resistive touch screen covers the entire display area for user input. The touchscreen is a 5-wire architecture offering improved durability and touch endurance. The face ofthe touch screen has an anti-reflective (AR) coating and a hardness of 3H.Two full-speed USB ports are available on the back of the QTERM-A12. These ports can beused to add many other devices, such as a keyboard, mouse or additional mass storage. AddingUSB peripherals that are not self-powered will increase the power consumption of the terminal.
The QTERM line of human machine interfaces (HMIs) and operator interface terminals (OITs) came to Beijer Electronics through its acquisition of QSI Corporation in 2010. The initial QTERMs were produced in the early 1990s, many of these are still operational today. Many of the QTERM models are designed for harsh and in some cases extremely rugged deployments.
VICPAS supply Beijer QTERM-A12 Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 317992 Beijer QTERM-A12 HMI Parts.
| Brand: | Beijer |
| Part number: | 317992 |
| Size: | 12 INCH |
| Warranty: | 365 Days Warranty |
| Product Line: | QTERM-A12 |
| Size diagonal: | 800 × 480 pixel |
| Display type: | TFT-LCD |
| Touch type: | Resistive |
| Input voltage: | 20 - 30 V DC |
| Power: | 12W |
Beijer QTERM-A12 Touch Panel HMI Manuals PDF Download:
FAQ:
Question: How to install the Beijer QTERM-A12 Touch Panel?
Answer:1. Verify that the panel surface around the cutout is clean and free of rough edges. A gasketbuilt into the terminal seals against the panel surface. Dirt or imperfections on the panelmay prevent a proper seal. To achieve a NEMA-4X seal, the panel must maintain a flatnessof no greater than 1 mm overall and no greater than .05 mm/mm locally. Additionally,a Ra surface roughness of 1.6 μm must not be exceeded (standard NEMA-4enclosures).
2.Place the terminal into the panel cutout and verify that the terminal is oriented correctly.The printed labels on the back panel may indicate the orientation. If not, you can determinewhich side should be at the top by the position of the serial port(s) on the back panelas follows:
Landscape:When looking
PortraitWhen looking at the front of the unit, the back panel serial port(s) should be facing left.Refer to Figure 5 for an example of a landscape installation.
3.On the back of the panel, align the terminal mounting ring holes with the mounting studs,and place the mounting ring against the back of the panel.
4. Install nuts and washers (supplied with the terminal) onto each of the four mounting studs.Torque all nuts to 90.4 N cm (8 lbs in) to create a seal between the terminal gasket and thepanel. Avoid overtightening the nuts.
Question: Why the Beijer QTERM-A12 HMI have the chemical resistance?
Answer:Autoflex EBA180L covers the overlay surrounding the screen.
Question: What is Beijer QTERM-A12 Touchscreen and Overlay HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
