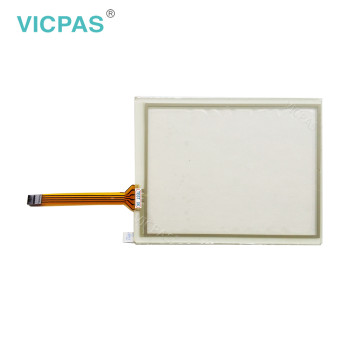

Beijer Electronics HMI EPC TU190-st C2D Touch Panel Replacement
group nameOther Old Beijer HMI Part
-
Min Order1 piece
brand nameVICPAS
modelEPC TU190-st C2D
payment methodWestern Union, T/T, PayPal, Credit Card
-
update timeFri, 08 Nov 2024 19:43:25 GMT
Paramtents
Brand Beijer
Size 19 inch
Product Line EPC series
Resolution 1280 x 1024
Supply EPC TU190-st C2D Touch Screen
Warranty 365 Days
Packging & Delivery
Min Order1 piece
Briefing
Detailed
Beijer HMI EPC TU190-st C2D Touch Panel Repair Replacement
EPC TU190-st C2D C2D 19" Maritime Panel PC, Touch or antireflection glassMarine PCs by Beijer Electronics meet the special requirements essential for shipbuilding with a product range, 8.4" to 26" and certifications by all major nautical associations.The EPC TU190-st C2D C2D features a fully certified marine PC with 19" TFT display and choice between touch screen or antireflection glass, LCD brightness dimmable to zero.
Beijer Electronics EPC series is designed for installation in acontrol cabinet, either as Panel PC in front door or as Box PCinside. EPC series represents a powerful platform for factoryfloor applications and are suitable for demanding visualization orcontrol tasks where sufficient room for plug-in cards is required.These include SCADA software packages, image processing and SQL databases.The industry-friendly touch interface allows youto enter parameters directly on the screen.
It is increasingly used in LAN networks with parent systems,particularly thanks to the fast GBit networks. A multitude ofonboard interfaces and optional fi eldbus connections makethe EPC C2D a multitalent in connection with other controlcomponents.
VICPAS supply Beijer EPC TU190-st C2D Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 100-0583 Beijer EPC TU190-st C2D HMI Parts.
| Brand: | Beijer |
| Part number: | EPC TU190-st C2D |
| Size: | 19 INCH |
| Warranty: | 365 Days Warranty |
| Product Line: | EPC Series |
| Size diagonal: | 1280 x 1024 pixel |
| Display type: | TFT-LCD |
| Touch type: | Resistive touch |
| Degree: | IP65 on the front |
| Keypad / mouse: | 2 x PS/2 |
Beijer EPC TU190-st C2D Touch Panel HMI Manuals PDF Download:
FAQ:
Question: How to ground the EPC Series Operator Panel?
Answer:1. Connect a 2.5mm2 wire between the operator panel’s quick-connect plinth and the panel’s chassis, see 2 in drawing above.
2. Connect a 6mm2 or 4mm2 wire or grounding braid between the operator panel’s chassis and the closest grounding point on the door, see 3 in drawing above.
3. Connect a strong but short grounding braid between the door and the devicecabinet, see 4 in drawing above.
4. Twist the cables onto the 24VDCfeed, see 5 in drawing above. Minimumcross-section of the cable is 2.5mm2.2 turns around the ferrite core provide 4 times the suppression of 1 turn.3 turns around the ferrite core provide 9 times the suppression of 1 turn.
Question: Why the Beijer EPC TU190-st C2D HMI have the chemical resistance?
Answer:Autoflex EBA180L covers the overlay surrounding the screen.
Question: What is Beijer EPC TU190-st C2D Touchscreen and Overlay HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
