ESA Terminals HMI VT565 WA0M00 Touch Screen Replacement
group nameVT Terminal
-
Min Order1 piece
brand nameVICPAS
modelVT565W A0M00
payment methodWestern Union, T/T, PayPal, Credit Card
-
update timeSat, 02 Nov 2024 23:33:04 GMT
Paramtents
Brand ESA
Size 5.7 inch
Warranty 365 Days
Product Line Touch screen terminals
Supply VT565W Touch Screen and Overlay
Packging & Delivery
Min Order1 piece
Briefing
Detailed

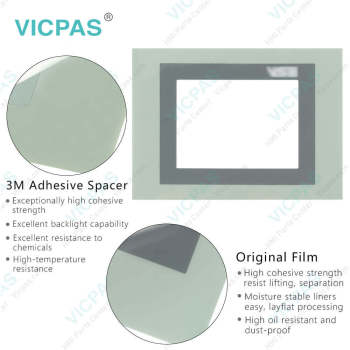

ESA Touch Screen Protective Film VT565W VT565WA0M00 Touch Panel Replacement
Order each part separately is available
VT565 WA0000 Interfaces: MSP, ASP - Project: 1 MB - Recipes: 128 KB (Color
VT565W VT operator terminals ensure maximum availability of drivers and a full coverage of the PLC market and of otherdevices, such as drives, inverters and temperature controllers, including:
•Profibus-DP at 12 Mbit/s (addressing up to 127 terminals)
•Interbus-S at 500 Kbit/s (addressing up to 127 terminals)
•CAN (through built-in port or external adapter)
•Modbus in master and slave mode
•TCP/IP protocol support
ESA VT565W Main characteristics (modeldependant): High value solution formany applications Alarms, passwords, recipes Use of Windows® fonts Importation of graphicimages in any format Moving graphic objects Serial printing Integrated Profibus-DP andCAN Integrated Ethernet 10/100
VICPAS supply ESA Touchscreen Terminal VT565W Touch Panel Protective Film with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the ESA VT565WA0M00 HMI Parts.
| Brand: | ESA |
| Resolution: | 240 x 128 |
| ASP serial port1: | RS232 (8 pin) |
| Warranty: | 6-Months Warranty |
| Product Line: | Touch Terminal |
| Display Type: | Graphic LCD TFT |
| Touch Screen Matrix: | 20x8 |
| Display area size: | 123 x 68 (mm) |
| Size: | 5.7" |
| Part Number: | VT565WA0M00 |
Related ESA VT565W Part No. :
| ESA VT565W | Description | Inventory status |
| VT565WA0M00 | ESA Terminals HMI VT565W APM00 Touchscreen Replacement | In Stock |
| VT565WA0M00 | ESA Terminals HMI VT565 WA0M00 Touch Screen Replacements | In Stock |
| VT565WAP000 | ESA Terminals HMI VT565 WAP000 Touch Panel Replacement | In Stock |
| VT565WA0000 | ESA Terminals HMI VT565 WA0000 Touch Screen Replacement | In Stock |
| ESA VT TEXT | Description | Inventory status |
ESA VT565W Operator Panel HMI Manuals PDF Download:
FAQ:
Question: How to operate the VT565W Terminal with Front Overlay touchscreen?
Answer:To be able to carry out a change in any editable variable field you musttouch the chosen field on the display and a page appears offering theneeded to modify the field.
Question: What is the VT565W Termination of CAN line?
Answer:The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:
• Make sure the device is not connected to the power supply.
• Remove the cover.
• Identify the jumper unit J2.
• Position the jumper between pins 2 and 3 (line terminated).
• Replace the back cover.
• Reconnect the power supply.
Question: What is ESA VT565W Touch Screen and Protective Film HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
