Touch Screen Panel 2711P-T6M20A8 PanelView Plus 6

Order each part separately is available

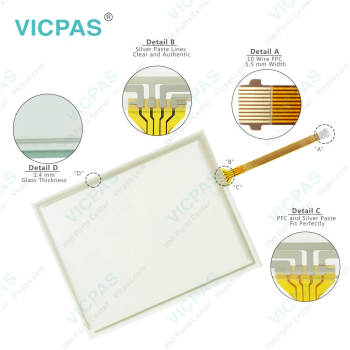

VICPAS supply Panelview Plus 6 2711P-T6M20A8 touchscreen glass, Bracket, Label, Plastic Shell, LCD Display, Gasket, Sticker and Mounting Levers for repair replacement, make the HMI running. We provide a 1-year warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing. The Allen-Bradley 2711P-T6M20A8 PanelView terminal is effective in performance at a temperature range of 32 - 122°F and a storage temperature of -13 – 158°F. It measures 111 x 84 mm in dimensions.

The 2711P-T6M20A8 is one of Allen-Bradley’s PanelView terminals. It can control and communicate with other devices. It has a compact 5.7-inch stainless steel grayscale display. The 2711P-T6M20A8's touchscreen is analog-resistive and it can be operated with a finger or plastic stylus with a minimum tip radius of 1.3 millimeters.

The 2711P-T6M20A8 also comes with Ethernet, RS-232, and USB communication ports and electrical isolation to prevent the port from damage due to short circuits and bad connections. The 2711P-T6M20A8 runs on 85 to 264 Volts AC at 47 to 63 Hertz. For normal operation, this product should run at a temperature between 0 and 55 degrees Celsius. When the product is not in operation, the temperature should not be higher than 70 degrees Celsius and not less than -25 degrees Celsius.
