6AV6545-0AA15-2AX0 Touch Panel TP070 Plastic Case Repair
group nameTouch Panel
-
Min Order1 piece
brand nameVICPAS
model6AV6 545-0AA15-2AX0
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
-
update timeFri, 08 Nov 2024 21:42:53 GMT
Paramtents
Touch screen tapes Resistance touch screen
panel repair replacement panel HMI replacement repair
Size 5.7 inch
Modle 6AV6 545-0AA15-2AX0
Brand Siemens Simatic HMI
Warranty 365 days
Line TP070 Touch Panel
Parts supply touchscreen, lcd display, plastic case shell
Packging & Delivery
Min Order1 piece
Briefing
Detailed

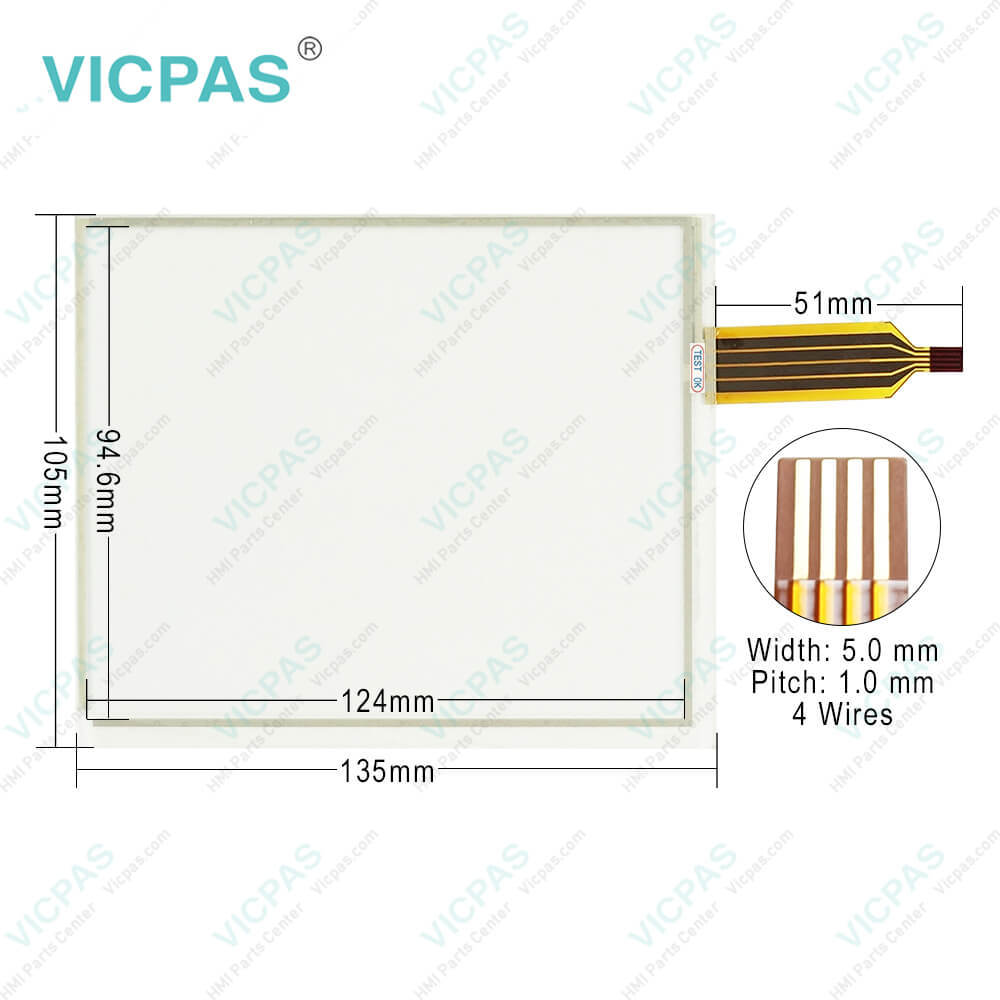

6AV6545-0AA15-2AX0 Siemens SIMATIC HMI TP070 Touch Screen Panel, Plastic shell and LCD Display Repair Replacement
Order each part separately is available
6AV6545-0AA15-2AX0 SIMATIC Touch Panel TP070 display Color STN-Color-Display MPI/PROFIBUS DP interface Printer/RS232 interface Slot for CF card configurable with ProTool/Lite as of Version V5.2+SP2
TP 070 Features
● 5.7" STN display; resolution of 320 x 240 pixels
● Rugged and compact; shallow mounting depth of 45 mm (device dimensions compatible to the TP 070)
● Multi-Master communication for the integration into networks
● Onboard MPI/PPI
● Alarm system with freely definable alarm classes and alarm history
● Password system
● Alarm indicator for displaying machine and system states
● 5 Languages (can be switched online), including Asian and Cyrillic
● Short configuration and commissioning times
● Service-friendly due to maintenance-free construction and long life of the display backlight
The SIMATIC Touch Panel TP 070B color panel from the SIPLUS extreme product range is available for substitution of the affected SIPLUS TP 070 color panel for applications under harsh ambient conditions. A SIPLUS version for use at extended temperature ranges is presently not available.SIPLUS extreme is the product family with ruggedized and refined components on the basis of SIMATIC standard products.
VICPAS supply 6AV6 545-0AA15-2AX0 Siemens TP070 touch panel, Overlay and LCD display. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 6AV6545-0AA15-2AX0 Siemens TP070 HMI Parts.
| Part Number : | 6AV6545-0AA15-2AX0 |
| Size | 5.7" |
| Display | STN Display (LCD) |
| Warranty: | 365 days Warranty |
| Product Line: | Siemens TP070 |
| Resolution: | 320 x 240; |
| Color Depth: | 4 Blue Levels |
| Touchscreen: | Analog/resistive |
| MTBF of Backlight: | approx. 50,000 h |
| PLC Connection: | SIMATIC S7-200 |
Related Simatic TP070 Part No. :
| Siemens 070 | Description | Inventory status |
| 6AV6545-0AA10-0XA0 | TP070 MICRO | In Stock |
| 6AV6545-0AA15-2AX0 | SIPLUS HMI TP070 | In Stock |
| SIMATIC HMI TP070 | Description | Inventory status |
Siemens TP070 HMI Manuals PDF Download:
FAQ:
Question:How to install the TP070 HMI device?
Answer:To complete the installation, four spring terminals are required from the accessories for the TP 070micro. The installation seal must be mounted on the HMI device. If the installation seal is damaged, order a replacement.
Question: Which software options are available for the Siemens 6AV6545-0AA15-2AX0 TP070?
Answer:WinCC Flexible/Sm@rtServiceThe Sm@rtService option enables you to access a remote HMI device from theHMI device or PC via Ethernet.
Question: What is the 6AV6 545-0AA15-2AX0 Siemens TP070 HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
AV6545-0AA15-2AX06V6545-0AA15-2AX0
6A6545-0AA15-2AX0
6AV545-0AA15-2AX0
6AV645-0AA15-2AX0
6AV655-0AA15-2AX0
6AV654-0AA15-2AX0
6AV65450AA15-2AX0
6AV6545-AA15-2AX0
6AV6545-0A15-2AX0
