2711P-RDB10CM Touch Screen Panel Membrane Keypad Repair
group nameDisplay Modules
-
Min Order1 piece
brand nameVICPAS
model2711P-RDB10CM
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
-
update timeFri, 08 Nov 2024 21:34:31 GMT
Paramtents
Brand Allen Bradley
Warranty 365 Days
Product Line PanelView Plus
Size 10.4 Inch
Supply PanelView Plus Terminal Part Repair
Parts 2711P-RDB10CM Touch Screen Housing Membrane Keypad
Packging & Delivery
Min Order1 piece
Briefing
Detailed

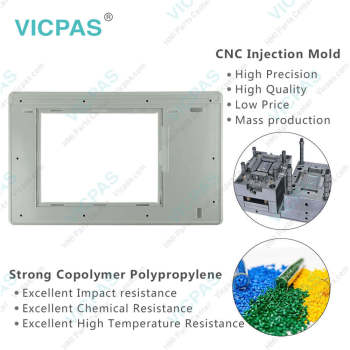

2711P-RDB10CM PanelView Plus Touch Screen Panel Glass, Membrane Keypad Switch, LCD Display, Plastic Enclosure, Mounting Clips, Label, Gasket Repair Replacement
Order each part separately is available
VICPAS supply Panelview Plus 2711P-RDB10CM membrane keypad, switch touchscreen, LCD Screen, Plastic Cover Body, Mounting Clips, Label, Gasket for repair replacement, make the HMI running. We provide a 365 days VICPAS warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing.
The 2711P-RDB10CM is a PanelView Plus display module from Rockwell Automation/Allen-Bradley. The module provides a touchscreen (resistive) and keypad options for inputting commands and doing other functions. The vibration acceleration for the 2711P-RDB10CM stands at 2 G with a maximum peak-to-peak vibration displacement of 0.012 millimeters. The display module can accommodate an operating vibration frequency of 500 Hertz. The display module is also software-configurable using the FactoryTalk View Studio machine edition software. When the 2711P-RDB10CM is in operation, it can withstand a shock acceleration of 15 G with the shock lasting for 11 milliseconds.
PanelView Plus display module can be interfaced with RS-232 and Ethernet networks through the available onboard communication ports. For monitoring, the 2711P-RDB10CM supports the real-time monitoring of connected terminals through a web browser. Where context-sensitive operator support is needed, the 2711P-RDB10CM has a built-in PDF viewer. The 2711P-RDB10CM also features a built-in USB port and an SD card slot.
Specifications:
The table below describes the parameters of the 2711P-RDB10CM PanelView Plus Touchscreen Panel Membrane Keypad.
| Part Number: | 2711P-RDB10CM |
| Product Line: | PanelView Plus |
| Screen Diagonal: | 10.4 in |
| Warranty: | 365 Days Warranty |
| Input Power: | 24 VDC |
| Software: | FactoryTalk View Machine Edition |
| Mounting Position: | vertical |
| Input Type: | Touchscreen/Keypad |
| Communication: | ControlNet |
| Backlight: | 2711P-RL7C |
Related PanelView Plus Series Part No. :
| PanelView Plus HMI | Description | Inventory status |
| 2711P-RDT10CM | Display Module Touch Screen Glass Front Overlay Plastic Case Replacement | In Stock |
| 2711P-RDB10C | Allen Bradley Panel Plus Rockwell Membrane Keypad Touchscreen Panel Housing | Available Now |
| 2711P-RDB10CM | Allen Bradley Panel View Plus HMI Keypad Touch Screen Panel Plastic Case | Available Now |
| 2711P-RDK12C | Allen Bradley Rockwell PanelView Plus Membrane Keyboard Replacement | In Stock |
| 2711P-RDK12CK | Allen Bradley PanelView Plus Terminals Keypad Repair Replacement Kit | In Stock |
| 2711P-RDT12C | PanelView Plus Rockwell Protective Film HMI Touch Screen Panel | Available Now |
| 2711P-RDT12CK | Allen Bradley Display Module Front Overlay Touch Screen Replacement | In Stock |
| 2711P-RDT12H | PanelView Plus Touchscreen Membrane Protective Film Repair | Available Now |
| 2711P-RDT12AG | Allen Bradley Panel View Plus Rockwell HMI Terminal Touch Screen Front Overlay | In Stock |
| 2711P-RDB12C | AB Display Module Touch Screen Panel Glass Membrane Keypad Keyboard | Available Now |
| AB Display Module | Description | Inventory status |
Allen Bradley Panelview Plus Terminals 2711P-RDB10CM User Manual
FAQ:
Question:Does Allen Bradley 2711P-RDB10CM have extended features?
Answer:This PanelView Plus 2711P-RDB10CM does not have extended features.
Question: What is the voltage rating of the 2711P-RDB10CM Allen Bradley ?
Answer:The 2711P-RDB10CM has a voltage rating of 85 to 264 Volts AC.
Question: What is the 2711P-RDB10CM PanelView Plus Membrane Keypad price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Question:What are about Allen Bradley PanelView Plus Terminals?
Answer:PanelView Plus is ideal for applications with a need to observe, change, and display information graphically. This allows operators to quickly understand the status of their application. PanelView Plus is programmed with RSView Studio Machine Edition. It combines the most beneficial features from the well-known Allen-Bradley PanelView Standard and PanelView HMI products, as well as adding new functionality.
Question:How to connect Allen Bradley PanelView Plus DC power?
Answer:Follow these steps to connect the terminal DC power.
1. Verify that the terminal is not connected to a power source.
2. Secure the DC power wires to the terminal block.
Follow the markings on the terminal blocks and the terminal for proper connections.
3. Secure the earth/ground wire to the earth/ground terminal screw at the bottom of the display.
Common misspellings:
2711PRDB10CM
27l1P-RDB10CM
271lP-RDB10CM
2711P-RDB1oCM
2711P-RDBl0CM
