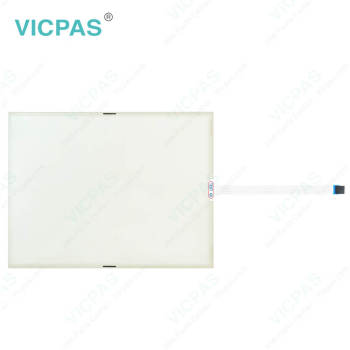

B&R 4PP220.1505-K03 HMI Touch Glass
group namePower Panel 100/200
-
Min Order1 piece
brand nameVICPAS
model4PP220.1505-K03
payment methodWestern Union, T/T, PayPal, Credit Card
-
update timeFri, 08 Nov 2024 14:13:32 GMT
Paramtents
Brand B&R
Size 15 inch
Warranty 1 Year VICPAS Warranty
Model B&R Power Panel 200 4PP220.1505-K03
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Packging & Delivery
Min Order1 piece
Briefing
Detailed
B&R Power Panel 200 4PP220.1505-K03 Touch Panel Repair Replacement
Order each part separately is available
Depending on the variant, the devices have a 5.7" QVGA touch screen available in color or black/white, a 10.4" VGA, a 12.1" SVGA, or a 15" XGA touch screen in color. In addition, there re horizontally or vertically formatted devices available (numeric and alphanumeric keys, with/without legend strips) for all display sizes (exception: 12.1" SVGA - only available without keys and with touch screen).
The 3-pin socket required for the supply voltage connection is not included in delivery. This can be ordered from B&R using the model number 0TB103.9 (screw clamps) or 0TB103.91 (cage clamps). The cable required for the connection must be supplied by the customer. The supply voltage is internally protected so that the device cannot be damaged if there is an overload or if the voltage supply is connected incorrectly. Pin assignments can be found either in the following table or printed on the Power Panel plate or device label.
Specifications:
The table below describes the parameters of the 4PP220.1505-K03 Power Panel 200 Touchscreen Panel.
| Part Number : | 4PP220.1505-K03 |
| Product Line: | Power Panel 200 |
| Screen diagonal | 15 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Touchscreen |
| Serial interface Type: | RS232 |
| Storage | -20 to 70°C |
Related Power Panel 200 Series Part No. :
| Power Panel 200 | Description | Inventory status |
| 4PP281.1043-75 | B&R Power Panel 200 Membrane Keyboard Keypad | In Stock |
| 4PP281.1043-B5 | PP200 B and R Membrane Keypad Switch Repair | Available Now |
| 4PP282.1043-75 | B&R Power Panel 200 Operator Panel Keypad | In Stock |
| 4PP282.1043-B5 | B and R Power Panel 200 Operator Keyboard Repair | In Stock |
| 4PP28X.1043 | Power Panel 200 B&R HMI Touch Screen Organizer | In Stock |
| 4PP250.1214-K01 | B and R Power Panel 200 Touch Panel Glass Repair | In Stock |
| 4PP220.1505-75 | PP200 B&R Touch Screen Panel Front Overlay Keyboard Membrane | Available Now |
| 4PP220.1505-B5 | Power Panel 200 B&R Touch Membrane Protective Film Switch Membrane | In Stock |
| 4PP220.1505-K03 | B and R Power Panel 200 Touch Digitizer Glass | Available Now |
| 4PP251.1505-75 | Power Panel 200 B&R HMI Membrane Keyboard Keypad | In Stock |
| 4PP251.1505-B5 | B and R Power Panel 200 Operator Panel Keypad Repair | In Stock |
| 4PP280.1505-75 | PP200 B&R Touch Screen Organizer Front Overlay Keyboard Membrane | Available Now |
| 4PP280.1505-B5 | B&R PP200 Touch Screen Tablet Front Overlay Membrane Keypad | In Stock |
| 4PP281.1505-75 | B&R Power Panel 200 Membrane Keypad Switch | In Stock |
| 4PP281.1505-B5 | Power Panel 200 B and R Membrane Keyboard Keypad | Available Now |
| B and R PP200 | Description | Inventory status |
FAQ:
Question: How can the Automation Panel B&R 4PP220.1505-K03 service life of the backlight be extended?
Answer:
• By setting the display brightness to the lowest value that is still comfortable for the eyes
• By using dark images
• By reducing the brightness by 50%, which can result in an approximately 50% increase in the half-brightness time
Question: How to clean the B&R Power Panel 200 4PP220.1505-K03 Terminal Devices?
Answer:
This device should be cleaned with a moist cloth. The cloth should be moistened with water and detergent, a screen cleaning agent or alcohol (ethanol). The cleaning agent should be applied to the cloth beforehand, not sprayed directly on the device! Aggressive solvents, chemicals, scouring agents, pressurized air or steam jets should never be used.
