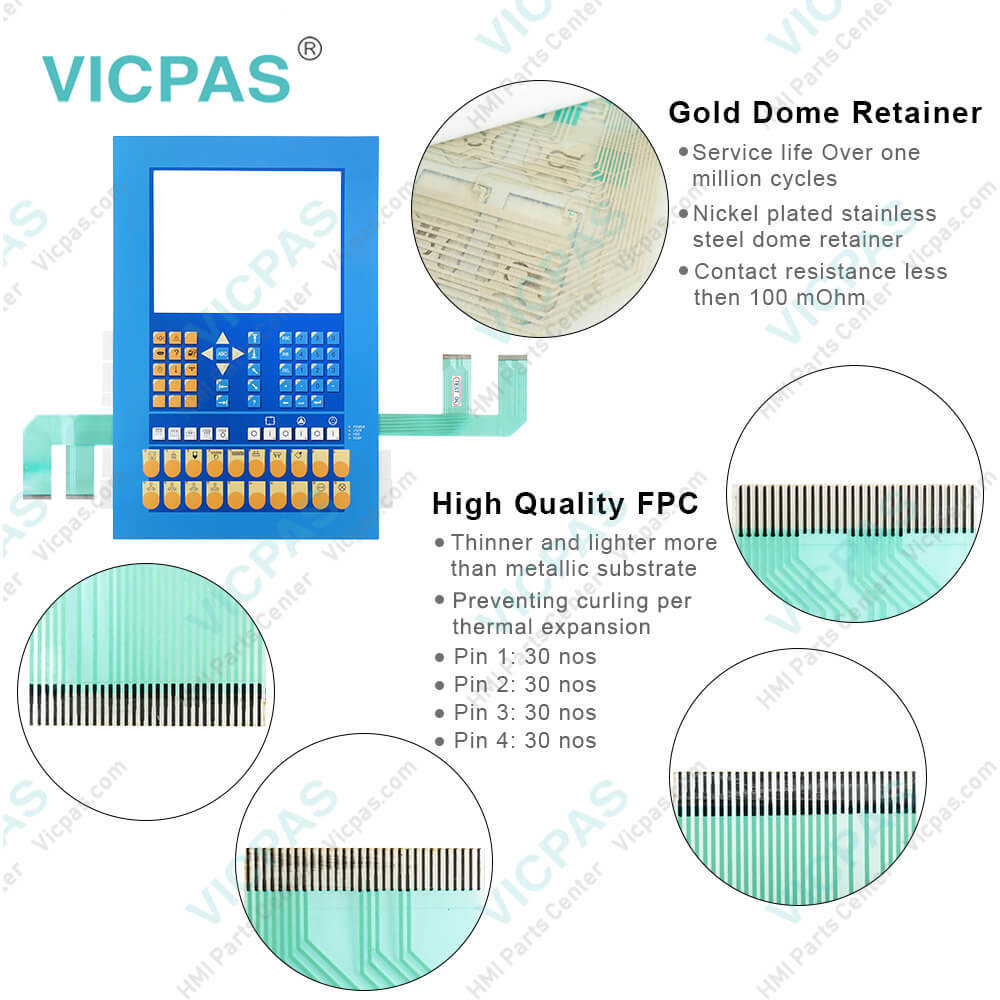

B&R 5D5212.20 Provit 5200 Membrane Keyboard Keypad
group nameProvit 2000/5000
-
Min Order1 piece
brand nameVICPAS
model5D5212.20
payment methodWestern Union, T/T, PayPal, Credit Card
-
update timeFri, 08 Nov 2024 14:02:24 GMT
Paramtents
Brand B&R
Warranty 1 Year VICPAS Warranty
Model B&R Provit 5200 5D5212.20
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Packging & Delivery
Min Order1 piece
Briefing
Detailed
B&R Provit 5200 5D5212.20 Operator Panel Keypad Repair Replacement
The B&R Provit 5200 5D5212.20 lithium battery (3 V, 950 mAh) keeps the CMOS memory and real-time clock running when the supply voltage for the B&R Provit 5200 5D5212-20 IPC has been switched off. The buffer duration of the battery is at least 4 years (at 50°C, 8.5 mA current requirements of the supplied components and a self-discharge of 40%). The B&R Provit 5200 5D5212.20 reset button is accessible through a small hole near the external floppy disk drive interface. In order to avoid accidental activation, a B&R Provit 5200 5D5212.20 reset can only be triggered with a pointed object.
The B&R Provit 5200 5D5212-20 MTC is responsible for the following tasks and components:
• AT PS/2 keyboard
• Panelware keypad modules
• Acquisition of operating data (controller and display unit)
• Temperature monitoring with fan regulation
• Qualitative evaluation of the condition of the battery (good/bad)
Specifications:
The table below describes the parameters of the 5D5212.20 Provit 5200 Membrane Keypad Switch.
| Part Number : | 5D5212.20 |
| Product Line: | Provit 5200 |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Keypad |
| Serial interface Type: | RS232 |
Related Provit Series Part No. :
| B&R Provit | Description | Inventory status |
| 5D9200.01 | B&R Provit 9000 Touch Digitizer Glass | In Stock |
| 5D5200.13 | Provit 5200 B and R Touch Screen Panel | Available Now |
| 5D5200.33 | B&R Provit 5200 HMI Touch Glass Repair | In Stock |
| 5D5200.35 | Provit 5200 B and R Touch Digitizer Glass | Available Now |
| 5D5201.11 | Provit 5200 B and R Touch Screen Monitor | In Stock |
| 5D5212.20 | B&R Provit 5200 Membrane Keyboard Keypad | In Stock |
| 5D5212.24 | B&R Provit 5200 Touch Screen Glass Repair | In Stock |
| 5D5500.59 | B and R Provit 5500 HMI Keypad Membrane Repair | Available Now |
| 5D5501.07 | B&R Provit 5500 Membrane Keypad Switch | Available Now |
| 5D5600.06 | Provit 5600 B&R Keyboard Membrane | In Stock |
| B and R Provit | Description | Inventory status |
FAQ:
Question:How to change the B&R Provit 5200 5D5212.20 Battery?
Answer:
1. Disconnect the power supply
2. Touch the housing or ground connection (not the power supply!) in order to discharge any electrostatic charge from your body.
3. Remove the battery compartment cover.
4. Remove the battery by pulling the removal strip (do not use - pliers or uninsulated tools! --> risk of short circuiting).
5. The battery should not be held by its ends. Insulated tweezers may also be used for removing the battery.
6. Insert the new battery with correct polarity. The removal strip should be protruding from the battery holder and the "+" side of the battery should be facing downward. To be able to remove the battery again, the removal strip must protrude from the upper side of the battery.
7. Now wrap the end of the removal strip over the top of the battery and insert it underneath the battery so that it does not protrude from the battery holder.
8. Replace cover.
9. Reconnect the power supply.
10. Set the date and time
Question: What is the B&R Provit 5200 5D5212.20 Membrane Keypad Switch price?
Answer: Submit a fast quote, send VICPAS an email for best price.
