B&R 5AP1120.1044-C02 Touch Digitizer Glass
group nameAutomation Panel
-
Min Order1 piece
brand nameVICPAS
model5AP1120.1044-C02
payment methodWestern Union, T/T, PayPal, Credit Card
-
update timeFri, 08 Nov 2024 14:03:18 GMT
Paramtents
Touch screen panel type Resistance touch screen
Size 10.4 inch
Brand B&R
Warranty 1 Year VICPAS Warranty
Model B&R Automation Panel 1000 5AP1120.1044-C02
Shipping DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Packging & Delivery
Min Order1 piece
Briefing
Detailed

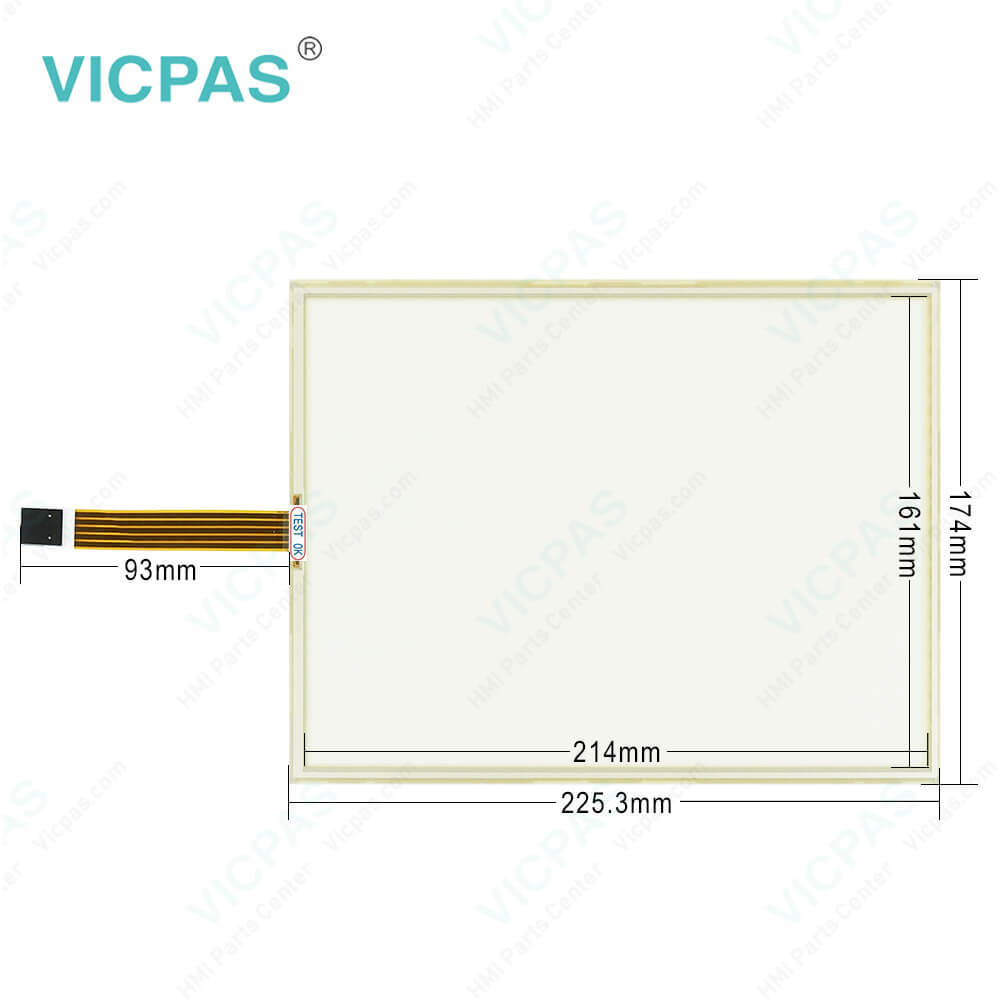

B&R Automation Panel 1000 5AP1120.1044-C02 Touch Panel Repair Replacement
Order each part separately is available
AP1000 5AP1120.1044-C02 panels form the basis for the Automation Panel 1000, Panel PC 900, Panel PC 2100, Panel PC 2200 and Panel PC 3100 system families. Different display diagonals and touch screen technologies as well as panels with touch screen and keys are available. The 5AP1120.1044-C02 panels are installed using retaining clips or clamping blocks. Panels 5AP1120.1044-C02 can only be operated as a complete system in combination with a link module (Automation Panel 1000) or CPU board and system unit (Panel PC).
5AP1120.1044-C02 Link modules have various graphics interfaces and connections. An Automation Panel 5AP1120.1044-C02 is put together by installing a link module onto a panel. Automation Panel 1000 devices with 10.4", 12.1" (4:3 format only), 15" (4:3 format only) and 19" diagonals are equipped with a front USB 2.0 interface. The 5AP1120.1044-C02 USB In interface is a USB 2.0 type B interface that is used to transfer USB data. It must be connected to a USB interface on the output device (e.g. B&R industrial PC) if DVI operation or SDL operation with a USB type A/B cable was chosen as the transfer method. If the Automation Panel 1000 5AP1120.1044-C02 interface is connected to an output device (e.g. B&R industrial PC), then USB 2.0 transfer rates are possible on the USB1 and USB2 interfaces.
Specifications:
The table below describes the parameters of the 5AP1120.1044-C02 Automation Panel 1000 Touchscreen Panel.
| Part Number : | 5AP1120.1044-C02 |
| Product Line: | Automation Panel 1000 |
| Screen diagonal | 10.4 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Touchscreen |
| Serial interface Type: | RS232 |
| Storage | -20 to 50°C |
Related Automation Panel 1000 Series Part No. :
| Automation Panel 1000 | Description | Inventory status |
| 5AP1120.0573-000 | B&R Automation Panel 1000 Touch Screen | In Stock |
| 5AP1151.0573-000 | B&R AP1000 Membrane Switch Touch Panel Repair | In Stock |
| 5AP1120.0702-000 | B and R Automation Panel 1000 Touchscreen | Available Now |
| 5AP1120.0702-I00 | B&R Automation Panel 1000 Touch Screen Glass | Available Now |
| 5AP1120.101E-000 | Automation Panel 1000 HMI Touch Screen Panel | In Stock |
| 5AP1120.1043-000 | B&R Automation Panel 1000 Touch Digitizer Glass | In Stock |
| 5AP1120.1043-C01 | B&R AP1000 Front overlay Touch Screen Monitor | In Stock |
| 5AP1120.1043-C04 | AP1000 B and R HMI Panel Glass Replacement | Available Now |
| 5AP1120.1044-C02 | B&R Automation Panel 1000 Touch Screen Monitor | In Stock |
| 5AP1125.1043-I00 | Automation Panel 1000 B and R HMI Touch Screen | Available Now |
| 5AP1125.1044-I00 | B&R Automation Panel 1000 Touch Screen Panel | In Stock |
| 5AP1180.1043-000 | B&R Automation Panel 1000 Touch Digitizer Repair | In Stock |
| B and R AP 1000 | Description | Inventory status |
B&R Automation Panel 1000 Manuals PDF Download:
FAQ:
Question: What causes Automation Panel 1000 B&R 5AP1120.1044-C02 screen burn-in?
Answer:
• Static images
• No screensaver
• Sharp transitions in contrast (e.g. black/white)
• High ambient temperatures
• Operation outside of specifications
Question:How can the B&R AP1000 5AP1120.1044-C02 service life of the backlight be extended?
Answer:
• By setting the display brightness to the lowest value that is still comfortable for the eyes
• By using dark images
• By reducing the brightness by 50%, which can result in an approximately 50% increase in the half-brightness time
Common misspellings:
5AP1120.144-C02
5A1120.1044-C02
5AP1120.0144-C02
5AP1120.1044-CO2
5AP11220.1044-C02
