6AV6643-5CB00-0ND1 Siemen MP277 8 Touch Overlay

group nameSimatic Multi Panel
Min Order1 piece
brand nameVICPAS
model6AV6643-5CB00-0ND1
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
update timeTue, 05 Nov 2024 14:45:01 GMT

contact supplier

Paramtents

Warranty 365 Days
Brand Siemens
Product Line MP 277 8
Supply Siemens MP277 8 HMI Touch Panel Protective Film
Size 8.4 inch
model 6AV6643-5CB00-0ND1

Packging & Delivery

Min Order1 piece

Briefing

Siemens Simatic Muti Panel MP277-8 touchscreen Overlay LCD Case. 365-day Warranty-Fully Tested-Factory Prices-Fast Shipping.

Detailed

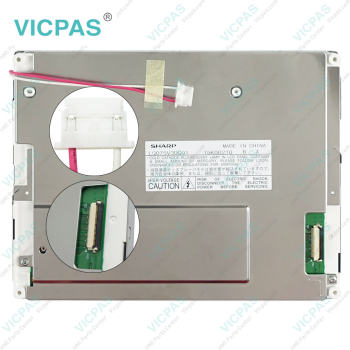

6AV6643-5CB00-0ND1 Siemens SIMATIC HMI Multi Panel MP277 8 Touchscreen Panel Glass Overlay LCD Display Plastic Case Repair Replacement

Order each part separately is available

6AV6643-5CB00-0ND1 Siemens SIMATIC HMI Multi Panel MP277 8 Touchscreen Panel Glass, Overlay, LCD Display, Plastic Case, Power Supply Connector, Mounting Clips, Case Gasket, Screws, LCD Gasket Repair Replacement

The MP277-8 6AV6643-5CB00-0ND1 touch screen of the HMI device can be cleaned when it is switched on and a project is running. An operating element must be available in the project with which the clean screen can be called. Once the clean screen is activated, touch screen operation is locked for a configured period of time. The time the touch screen is locked can be set between 5 and 30 seconds. The time remaining for the lockout is indicated by a progress bar.

If the MP277-8 6AV6643-5CB00-0ND1 connection cable of the HMI device is disconnected from the connection box, the LEDs F2, F4, F6, F8 and F10 indicate the charge status of the bridging battery. The MP277-8 6AV6643-5CB00-0ND1 LED for function key F1 also lights up for max. 9.5 minutes. This duration applies to a 100% charge status. The duration reduces as the charge reduces. The LED F1 flashes for 30 seconds. The MP277-8 6AV6643-5CB00-0ND1 HMI device then switches off. Runtime is terminated.

The MP277-8 6AV6643-5CB00-0ND1 converter is required for the connection of controllers of other manufacturers. Connect the RS 422 to RS 232 converter to the RS 422 / RS 485 interface. The converter converts the input signals to RS-232 signals.

VICPAS supply 6AV6643-5CB00-0ND1 Siemens MP 277 8 HMI Case, touch panel, LCD Gasket, Power Supply Connector, Case Gasket, Mounting Clips, Screws and overlay. All of them with VICPAS 365-day warranty and support Urgent Worldwide Shipping.

Contact Best Price

Specifications:

The table below describes the parameters of the 6AV6643-5CB00-0ND1 Siemens MP277 HMI Parts.

Part Number :	6AV6643-5CB00-0ND1
Screen diagonal:	8.4 in
Design of display:	TFT
Warranty:	365 days Warranty
Product Line:	Siemens MP277 8

Active power input, typ.:	36 W
MTBF backlighting (at 25 °C):	50 000 h
Number of colors:	65 536
Mounting position:	vertical
Type of supply voltage	DC

Related Simatic MP277 8 Part No. :

Siemens Mutil Panel MP277 8	Description	Inventory status
6AV6643-0CB01-1AX0	MP277 8" TOUCH	In Stock
6AV6643-0CB01-1AX1	SIMATIC MP 277 8" TOUCH	Available Now
6AV6643-0CB01-1AX2	SIMATIC MP 277 8" TOUCH	In Stock
6AV6643-0CB01-1AX5	MP 277 8	In Stock
6AV6643-5CB00-0ND1	SIMATIC MP 277 8" Touch Multi Panel	In Stock
6AV6643-5CB10-0HW0	SIMATIC MP 277 8″ TOUCH MULTI PANEL	Available Now
6AV6652-3MB01-0AA0	SIMATIC Multi Panel MP277-8	Available Now
6AV6652-3MC01-1AA0	SIMATIC MP277-8	Available Now
SIMATIC Mutil Panel	Description	Inventory status

Siemens MP277 HMI Manuals PDF Download:

Siemens HMI MP277-8 6AV6643-5CB00-0ND1 Operating Instructions

Siemens Simatic MP277 Panel manual

Siemens Simatic MP 277 8 Touch manual

FAQ:

Question: How to set the MP277-8 6AV6643-5CB00-0ND1 device name of the HMI device?

Answer:1. Enter the device name for the HMI device in the "Device name" text box.
2. Enter a description for the HMI device in the "Device description" text box.
3. Confirm your entries.
The dialog box and the screen keyboard are closed.
The device name for the HMI device is now set.

Question: What is the dimension of Siemens MP277 8 6AV6643-5CB00-0ND1 touch panel?

Answer:The Siemens MP277 8 TouchScreen is 8.4-inch. It is 153.7 millimeter long and 115.8 millimeters wide.

Question: How to setting the Siemens MP277-8 HMI 6AV6643-5CB00-0ND1's Date and Time?

Answer:
1. Select the appropriate time zone for the HMI device in the "Time Zone" selection box.
How to setting the Siemens MP277-8 HMI 6AV6643-5CB00-0ND1's Date and Time?
2. Touch the "Apply" button to confirm your entry.The time of day shown in the "Current Time" field is adjusted correspondingly to the selected time zone.
3. Set the date in the selection box.
4. Set the current time of day in the "Current Time" text box.
5. If you want to switch from standard time to daylight saving time, select the "Daylight saving time currently in effect" check box.When you press the "Apply" button, the time is brought forward by one hour.
6. If you want to switch from daylight saving time to standard time, deactivate the "Daylight saving time currently in effect" check box.When you press the "Apply" button, the time is brought back by one hour.
7. Confirm your entries.The dialog box closes.The settings for the date and time of day have now been changed.
