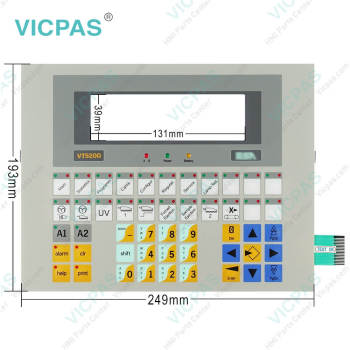

ESA Text HMI VT520G000 Membrane Keypad Replacement
group nameVT Text & Graphic
-
Min Order1 piece
brand nameVICPAS
modelVT520G000
payment methodWestern Union, T/T, PayPal, T/T ,Credit Card, Western Union
-
update timeFri, 08 Nov 2024 11:35:03 GMT
Paramtents
Brand ESA
Warranty 180 Days
Product Line VT Text
Supply VT520G Membrane Keypad
Packging & Delivery
Min Order1 piece
Briefing
Detailed
ESA TEXT HMI VT520G VT520G000 Membrane Keyboard Replacement
VT520G000 with graphic LCDdisplay, 256 colors, 30 rows by80 characters, VGA (640 x 480),MSP (RS232/422/485/TTY), ASP(RS232/485), LPT (Centronics), 2,3MB project, clock, 256 KB recipes, 74operative keys (28 function keys, 16customizable)
ESA VIDEO TERMINAL (VT) is a device that allows the user to control orsimply monitor a productive process. It can send commands using configuredby the user; it can send data determining the process on hand andcan display information deriving from the productive process. The informationcan be in the form of an Alarm, an Information (Info-) Message or inbinary data format.
VICPAS supply ESA TEXT HMI VT520G membrane switch with 6 months warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the ESA VT520G000 HMI Parts.
| Brand: | ESA |
| Display Type: | Graphic LCD 256 colors TFT |
| Resolution: | 640 x 480 |
| Warranty: | 6-Months Warranty |
| Product Line: | VT TEXT |
| Display Backlight: | CCFL |
| Display area size: | 211,2 x 158 |
| Columns by Rows: | Depending on used Font |
| Function key LEDs: | 46 |
| Part Number: | VT520G000 |
ESA VT520G Operator Panel HMI Manuals PDF Download:
FAQ:
Question: How to adjust the contrast on the ESA VT520G Display?
Answer:To improve the quality of the representation on the display it may be necessaryto adjust its contrast. This can be done by rotating the trimmer (C) atthe back of the VT ; turn it (using a small screwdriveror a trimmer tool) in one direction and, if the display quality worsens,turn it the other way.
Question: What is the VT520G000 Termination of CAN line?
Answer:The VT VT520G000 in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:
• Make sure the device is not connected to the power supply.
• Remove the cover.
• Identify the jumper unit J2.
• Position the jumper between pins 2 and 3 (line terminated).
• Replace the back cover.
• Reconnect the power supply.
Question: What is ESA VT520G VT520G000 mebrane keyboard HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
VT520000VT520G00
VT52OG000
VT502G000
VT5200G000
