ESA Terminals HMI HCJ 015.8120.906.0 Touch Screen
group nameVT Terminal
-
Min Order1 kilogram
brand nameVICPAS
modelHCJ 015.8120.906.0
payment methodWestern Union, T/T, PayPal, Credit Card
-
update timeSun, 03 Nov 2024 01:24:47 GMT
Paramtents
Brand ESA
Size 12.1 inch
Warranty 365 Days
Product Line Touch screen terminals
Supply HCJ 015.8120.906.0 Touch Screen
Packging & Delivery
Min Order1 kilogram
Briefing
Detailed

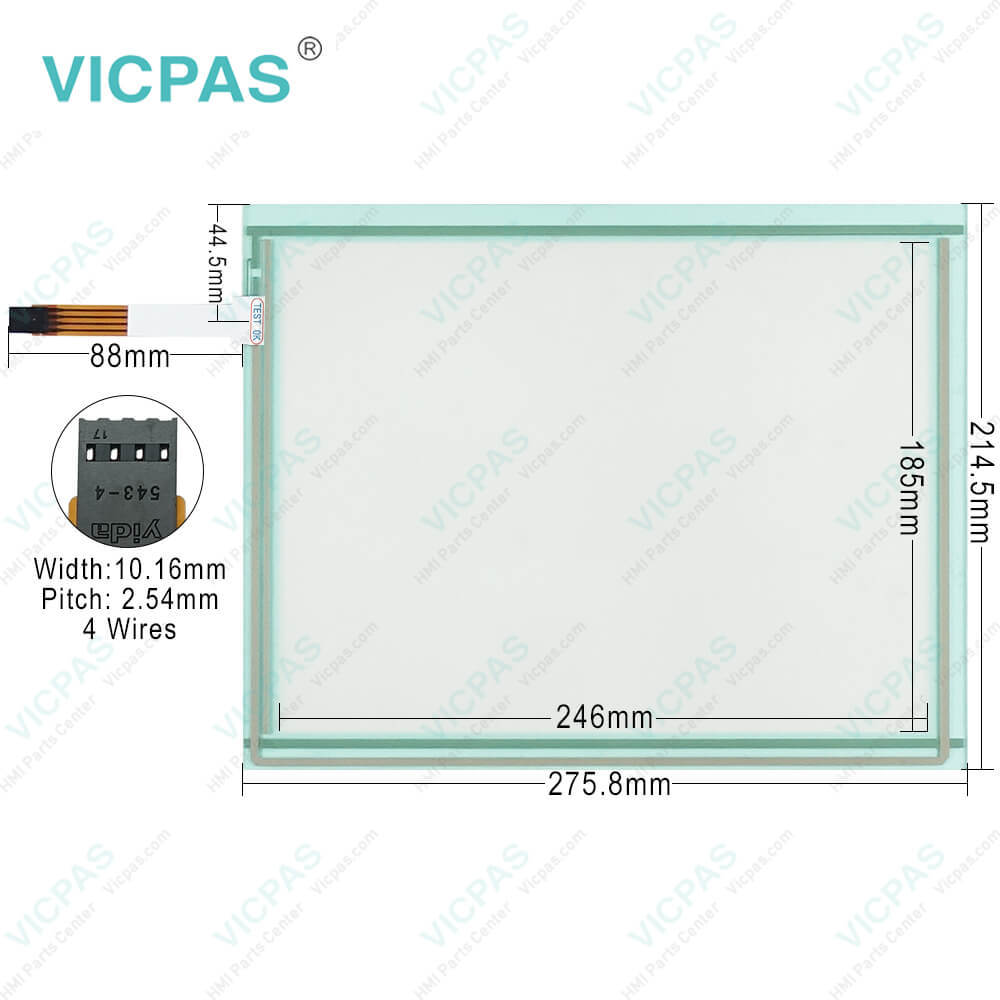

ESA Touch Screen Terminals HCJ 015.8120.906.0 Touch Panel Replacement
Order each part separately is available
HCJ 015.8120.906.0 256-Color TFT LCD 800 x 600 (12.1”) Touch Screen Terminal Repair Kit
HCJ 015.8120.906.0 operator terminals Main characteristics (modeldependant)::
•High resolution graphicdisplays
•Alarms, passwords, recipes
•Use of Windows® fonts)
•Importation of graphicimages in any format
•Moving graphic objects
•Double driver moves databetween two devices
•Integrated Profibus-DP andCAN
ESA HCJ 015.8120.906.0 HMI function allows variables and translations to be exported into filesthat can easily be edited using Excel or a text-editor. Once edited, thefile can be re-imported and VTWIN will automatically associate thetranslations, while the variables will be immediately available to be usedto create new project components
VICPAS supply ESA Touchscreen Terminal HCJ 015.8120.906.0 Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the ESA HCJ 015.8120.906.0 HMI Parts.
| Brand: | ESA |
| Resolution: | 800x600 |
| Backlighting: | CCFL |
| Warranty: | 6-Months Warranty |
| Product Line: | Touch Terminal |
| Display Type: | Graphic LCD TFT |
| Touch Screen Matrix: | 50x40 (16x15) |
| Display area size: | 9.68x7.28 |
| Size: | 12.1" |
| Part Number: | HCJ 015.8120.906.0 |
Related ESA VT595 Part No. :
| ESA VT595 | Description | Inventory status |
| VT595CE1T100 | ESA Terminals HMI VT595CE 1T100 Touch Screen Replacement | In Stock |
| VT595CE0T100 | ESA Terminals HMI VT595CE 0T100 Touch Panel Replacement | In Stock |
| VT595W0PTDP | ESA Terminals HMI VT595W VT595W0PTDP Touch Panel Repair | In Stock |
| VT595W0PTDP | ESA Terminals HMI VT595W VT595W0PTDP Touchscreen Repair | In Stock |
| VT595W0PTCN | ESA Terminals HMI VT595W VT595W0PTCN Touch Screen | In Stock |
| VT595WAPT00 | ESA Terminals HMI VT595W VT595WAPT00 Touch Panel | In Stock |
| VT595WOPTDP | ESA Terminals VT595W VT595WOPTDP HMI Panel Glass Repair | In Stock |
| ESA VT TOUCH | Description | Inventory status |
ESA Operator Panel HMI Manuals PDF Download:
FAQ:
Question: How to operate the HCJ 015.8120.906.0 Terminal with touchscreen?
Answer:To be able to carry out a change in any editable variable field you musttouch the chosen field on the display and a page appears offering theneeded to modify the field.
Question: What is the HCJ 015.8120.906.0 Termination of CAN line?
Answer:The VT in question integratesthe termination resistances of the serial line (typically 120 ohms)which can be inserted by means of a jumper (preset on 1-2, line not terminated).To activate the termination:
• Make sure the device is not connected to the power supply.
• Remove the cover.
• Identify the jumper unit J2.
• Position the jumper between pins 2 and 3 (line terminated).
• Replace the back cover.
• Reconnect the power supply.
Question: What is ESA HCJ 015.8120.906.0 Touch Screen Panel Glass HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
