6AV6643-5MA10-0ND1 Siemen Touch Digitizer Glass Repair

group nameSimatic Multi Panel
Min Order1 piece
brand nameVICPAS
model6AV6643-5MA10-0ND1
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
update timeTue, 05 Nov 2024 02:22:07 GMT

contact supplier

Paramtents

Warranty 365 Days
Brand Siemens
Product Line MP277T Mono 6
Supply Siemens MP277T Mono 6
Size 8.4 inch
model 6AV6643-5MA10-0ND1

Packging & Delivery

Min Order1 piece

Briefing

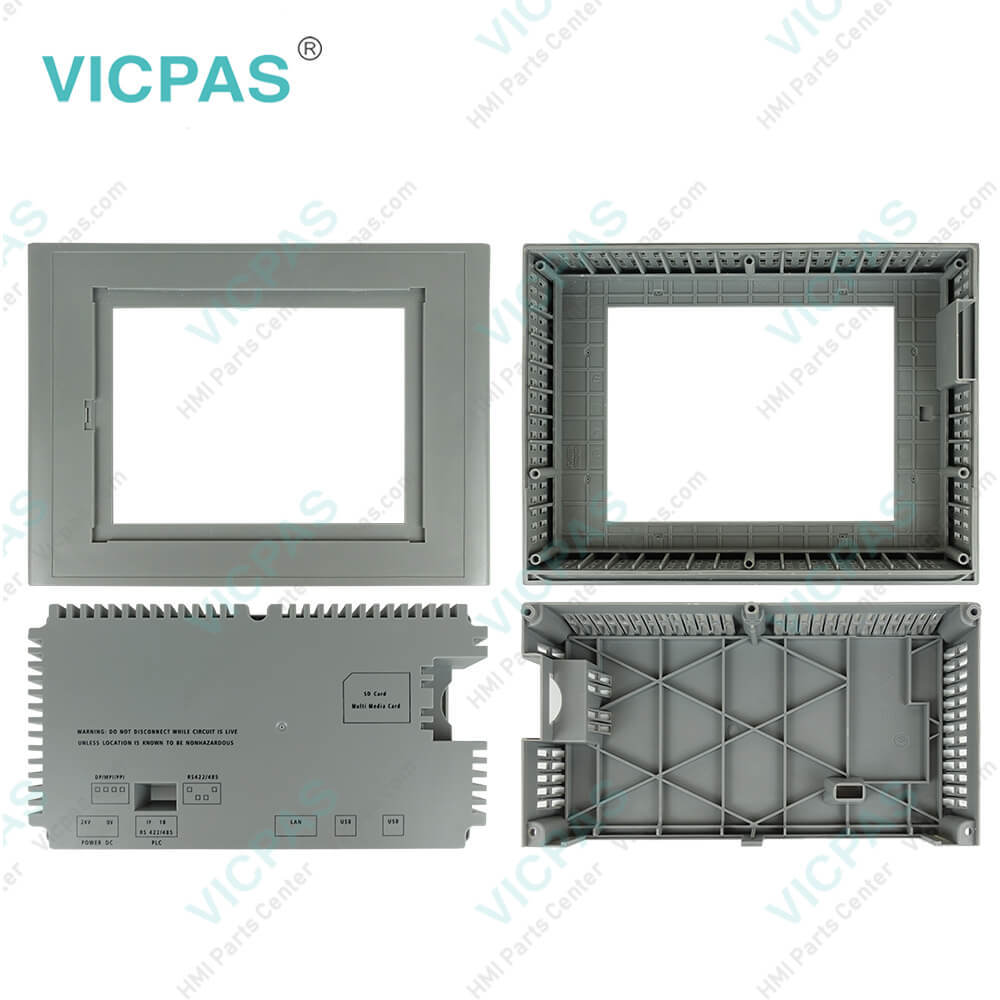

Siemens Simatic Muti Panel MP277-6 touchscreen Overlay LCD Case. 365-day Warranty-Fully Tested-Factory Prices-Fast Shipping.

Detailed

6AV6643-5MA10-0ND1 Siemens SIMATIC Multi Panel MP277T Mono 6" Touchscreen Panel Glass Repair

6AV6643-5MA10-0ND1 Siemens SIMATIC HMI Multi Panel MP277T Mono 6 touchscreen panel glass repair

The MP277-6 6AV6643-5MA10-0ND1 touch screen of the HMI device can be cleaned when it is switched on and a project is running. An operating element must be available in the project with which the clean screen can be called. Once the clean screen is activated, the MP277T Mono 6" 6AV6643-5MA10-0ND1 touch screen operation is locked for a configured period of time. The time the touch screen is locked can be set between 5 and 30 seconds. The time remaining for the lockout is indicated by a progress bar.

The MP277T Mono 6" 6AV6643-5MA10-0ND1 LED for function key F1 also lights up for max. 9.5 minutes. This duration applies to a 100% charge status. The duration reduces as the charge reduces. The LED F1 flashes for 30 seconds. The MP277T Mono 6" 6AV6643-5MA10-0ND1 HMI device then switches off. Runtime is terminated.

The MP277T Mono 6" 6AV6643-5MA10-0ND1 converter is required for the connection of controllers of other manufacturers. Connect the RS 422 to RS 232 converter to the RS 422 / RS 485 interface. The converter converts the input signals to RS-232 signals.

VICPAS supply 6AV6643-5MA10-0ND1 Siemens MP 277 T Mono 6" touch panel and overlay. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.

Contact Best Price

Specifications:

The table below describes the parameters of the 6AV6643-5MA10-0ND1 Siemens MP277 HMI Parts.

Part Number :	6AV6643-5MA10-0ND1
Screen diagonal:	8.4 in
Design of display:	TFT
Warranty:	365 days Warranty
Product Line:	Siemens MP277T Mono 6"

Active power input, typ.:	36 W
MTBF backlighting (at 25 °C):	50 000 h
Number of colors:	65 536
Mounting position:	vertical
Type of supply voltage	DC

Related Simatic MP277T Mono Part No. :

Siemens MP277T mono	Description	Inventory status
6AV6634-5MA10-0ND0	Siemens Simatic MP277T mono	In Stock
6AV6643-5MA10-0ND0	MP277T mono 6" MOSCA	Available Now
6AV6643-5MA10-0ND1	SIMATIC MP277T Mono 6"	In Stock
6AV6643-5MA10-0ND2	MP 277 T transverse design 5.7" monochrome	In Stock
6AV6643-6CB01-0GH0	MP 277 T transverse design 5.7" monochrome	Available Now
SIMATIC MP 277 T	Description	Inventory status

Siemens MP277 HMI Manuals PDF Download:

Siemens Simatic MP277 Panel manual

FAQ:

Question: How to set the MP277T Mono 6" 6AV6643-5MA10-0ND1 device name of the HMI device?

Answer:1. Enter the device name for the HMI device in the "Device name" text box.
2. Enter a description for the HMI device in the "Device description" text box.
3. Confirm your entries.
The dialog box and the screen keyboard are closed.
The device name for the HMI device is now set.

Question: How to setting the Siemens MP277T Mono 6" HMI 6AV6643-5MA10-0ND1's Date and Time?

Answer:
1. Select the appropriate time zone for the HMI device in the "Time Zone" selection box.
How to setting the Siemens MP277T Mono 6
2. Touch the "Apply" button to confirm your entry.The time of day shown in the "Current Time" field is adjusted correspondingly to the selected time zone.
3. Set the date in the selection box.
4. Set the current time of day in the "Current Time" text box.
5. If you want to switch from standard time to daylight saving time, select the "Daylight saving time currently in effect" check box.When you press the "Apply" button, the time is brought forward by one hour.
6. If you want to switch from daylight saving time to standard time, deactivate the "Daylight saving time currently in effect" check box.When you press the "Apply" button, the time is brought back by one hour.
7. Confirm your entries.The dialog box closes.The settings for the date and time of day have now been changed.
