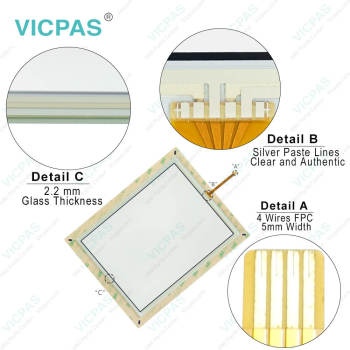

Beijer iX T10F-2 630005301 Front Overlay Touch Panel
group nameiX TxX Operator Panels
-
Min Order1 piece
brand nameVICPAS
modeliX T10F-2
payment methodWestern Union, T/T, PayPal, Credit Card
-
update timeFri, 08 Nov 2024 23:49:02 GMT
Paramtents
Brand Beijer
Warranty 365 Days
Product Line iX TxX
Resolution 800 × 480 pixel
Supply Beijer iX T10F-2 Protective Film Touchscreen
Part Number 630005301
Packging & Delivery
Min Order1 piece
Briefing
Detailed
Beijer HMI iX T10F-2 630005301 Touch Panel Protective Film Replacement
Order each part separately is available
The iX T10F-2 is is a 10-inch industrial operator panel with high-resolution touch-screen and modern design. iX T10F-2 Protective Film HMI Panel Glass model combines IP65 grey plastic housing with the full version of the iX HMI software, making iX T10F-2 Touch Screen Panel Glass Front Overlay a cost-effective yet advanced HMI. The iX T10F-2 panel offers Ethernet, serial and USB ports as standard.
The iX T10F-2 panel adds strength to Beijer Electronics' total HMI offer including industrial panels, specialized panels designed for rugged and marine environments and even panels with integrated CODESYS soft control and soft motion.VICPAS supply Beijer iX T10F-2 Touch Panel Front Overlay with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 630005301 Beijer iX T10F-2 HMI Parts.
| Brand: | Beijer |
| Part number: | 630005301 |
| Size: | 10.4 INCH |
| Warranty: | 365 Days Warranty |
| Product Line: | iX T10F-2 |
| Size diagonal: | 800x480 pixel |
| Display type: | TFT-LCD |
| Touch type: | Resistive |
| Storage temperature: | -20° to + 60°C |
| Operating temperature: | -10° to + 50°C |
Beijer iX T10F-2 Touch Panel HMI Manuals PDF Download:
FAQ:
Question: What is Beijer iX T10F-2 Touchscreen and Overlay HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Question: How to ground the iX TxX Series Operator Panel?
Answer:
1. Connect a 2.5mm2 wire between the operator panel’s quick-connect plinth and the panel’s chassis, see 2 in drawing above.
2. Connect a 6mm2 or 4mm2 wire or grounding braid between the operator panel’s chassis and the closest grounding point on the door, see 3 in drawing above.
3. Connect a strong but short grounding braid between the door and the devicecabinet, see 4 in drawing above.
4. Twist the cables onto the 24VDCfeed, see 5 in drawing above. Minimumcross-section of the cable is 2.5mm2.2 turns around the ferrite core provide 4 times the suppression of 1 turn.3 turns around the ferrite core provide 9 times the suppression of 1 turn.
Question: Why the Beijer iX T10F-2 HMI have the chemical resistance?
Answer:Autoflex EBA180L covers the overlay surrounding the screen.
Common misspellings:
6300030160005301
630005031
6300053O1
6330005301
