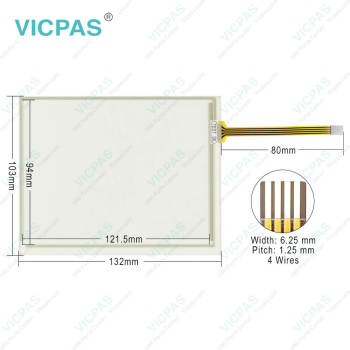

Panasonic AIG32MQ03DE Protective Film Panel Glass
group namePanasonic GT Series
-
Min Order1 piece
brand nameVICPAS
modelAIG32MQ03DE
payment methodWestern Union, T/T, PayPal, Credit Card
-
update timeThu, 14 Nov 2024 14:33:49 GMT
Paramtents
Brand Panasonic
Size 5.7 inch
Warranty 365 Days
Product Line Panasonic GT Series
Supply GT32-E GT32M-E Touch Screen and Overlay
Part Number AIG32MQ03DE
Shipping 2-4 workdays
Packging & Delivery
Min Order1 piece
Briefing
Detailed
Panasonic GT32-E GT32M-E AIG32MQ03DE Front Overlay Touch Panel Replacement
Order each part separately is available
Precautions when connecting Panasonic GT AIG32MQ03DE
-If noise is a problem, use a shielded cable and employ countermeasures such as installing a ferrite core if necessary. Also, take measures so that the shielding doesn't peel off and noise such as static electricity does not interfere.
-The number of AIG32MQ03DE Touch Screen Panel Glass Front Overlay units, transmission distance and baud rate may differ depending on the device connected. Verify with the AIG32MQ03DE Touch Panel Protective Film device being used.
-The maximum cable length for RS232C type is 15 m, also RS422 (5 V) type is 30 m.
-The maximum transmission distance is 500 m for the 24 V RS422 type.
-When connecting to the RS485, it may not be connected depending on the timing for switching between the transmission and reception at the external device. Please check it using the actual equipment.
The Panasonic GT32-E GT32M-E AIG32MQ03DE Protective Film Touch Digitizer Glass terminal unit setting varies according to the external device to be connected. Confirm it before setting a AIG32MQ03DE HMI Panel Glass Front Overlay terminal unit.
Specifications:
The table below describes the parameters of the Panasonic GT32-E AIG32MQ03DE Touch Screen Monitor Front Overlay HMI Parts.
| Backlight: | White LED |
| Brand: | Panasonic |
| Warranty: | 365 Days |
| Product Line: | Panasonic GT32-E |
| Resolution: | 320 (W) × 240 (H) dots |
| Ambient temperature: | 0 to +50 °C +32 to +122 °F |
| Display Type: | TFT monochrome LCD |
| Part Number: | AIG32MQ03DE |
| Power supply: | 24 V DC |
| Touch Size: | 5.7" |
Related Panasonic GT Series HMI Part No. :
| Panasonic GT32-E | Description | Inventory status |
| AIG32MQ03DE | Panasonic GT32M-E Touch Screen Front Overlay Replacement | In Stock |
| AIG32MQ05DE | Panasonic GT32-E GT32M-E Touch Panel Protective Film Repair | Available Now |
| AIG32TQ03DE | Panasonic GT32-E GT32T-E HMI Touch Screen Glass Front Overlay | Available Now |
| AIG32TQ05DE | Panasonic GT32-E GT32T-E Touchscreen Protective Film Repair | In Stock |
| Panasonic GT32-E | Description | Inventory status |
Panasonic GT Series HMI Manuals PDF Download:
FAQ:
Question: What to DO If Panasonic AIG32MQ03DE Touch Screen Panel is dim？
Answer:
1) The power voltage may be low.
Check the capacity of the power supply unit if it is enough for the GT's power consumption.
2) The contrast is set too low.
Bring up the system menu and adjust the contrast.
3) The AIG32MQ03DE backlight is off due to the [Backlight Auto-off] setting in the [Setup] of the GT configuration settings in GTWIN.
Touching any area of the AIG32MQ03DE screen lights that area. If a switch part is set on the touched area, the area will not light even if touched. To change the setting, change the content of the backlight auto-off settings.
Question: What to DO If Panasonic GT32-E GT32M-E AIG32MQ03DE Touch Screen is blank？
Answer:
1) Power is not on.
Supply the power supply to the Panasonic AIG32MQ03DE Touch Digitizer Glass Protective Film unit as per specifications.
2) (When only lamp and message parts are configured to the base screen) Value of substitute reference device value does not exist in substitute data.
Check the address of the substitute reference device and the device values on the PLC side.
Common misspellings:
AIG3MQ03DEAIG32MQ3DE
AIG23MQ03DE
A1G32MQ03DE
AIG32MQ03DDE
