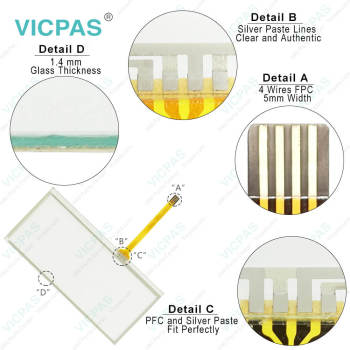

Panasonic GT12 AIG12MQ04D HMI Panel Glass Overlay

group namePanasonic GT Series
Min Order1 piece
brand nameVICPAS
modelAIG12MQ04D
payment methodWestern Union, T/T, PayPal, Credit Card
update timeWed, 13 Nov 2024 03:56:27 GMT

contact supplier

Paramtents

Brand Panasonic
Size 5.7 inch
Warranty 365 Days
Product Line Panasonic GT Series
Supply GT12 GT12M0 Touch Screen and Overlay
Part Number AIG12MQ04D
Shipping 2-4 workdays

Packging & Delivery

Min Order1 piece

Briefing

Panasonic GT12 GT12M0 AIG12MQ04D Front Overlay Touch Glass Repair. 12-months Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

Panasonic GT12 GT12M0 AIG12MQ04D HMI Panel Glass Protective Film Replacement

Order each part separately is available

Panasonic GT12 GT12M0 AIG12MQ04D Touch Screen Front Overlay Repair Replacement

Features and Functions of Panasonic GT Series
Analog touch panel provided
As an analog touch panel is provided, AIG12MQ04D Protective Film Touch Screen Panel Glass allows maximum flexibility in the switch layout and size.
Screens can be created easily, using a special screen creation tool Terminal GTWIN.
AIG12MQ04D Touch Screen contents can be easily created using the dedicated Terminal GTWIN tool. Screens are put together simply by selecting parts from libraries and positioning them in place. Various parts for numerous applications are provided such as 256-color 3D parts.
Screen data of the other models can be used with the model conversion function.
Panasonic GT12 GT12M0 AIG12MQ04D Front Overlay Touch Screen Panel Glass data can be converted from the low-resolution model to the high-resolution model, e.g. from GT01 to GT11, from GT21 to GT32.
The communication methods support RS232C/RS422 (RS485)
The communication methods to PLCs support RS232C/RS422(RS485). Also, it can be connected to PLCs manufactured by other companies.
Can be installed in a small space.
As the Panasonic GT series is a small and thin-shaped body, it can be installed in a small space. Also, as the projecting part from a wall surface is 4 mm, it looks neat after installation. The GT01, GT02, GT02L, GT11, GT12 and GT21 can be installed in vertical orientation.
Monochrome 8-gradation (GT12)/16-gradation (GT32M-E) display function is available.
The monochrome 8-gradation and 16-gradation displays can be selected as well as the existing monochrome 2-gradation display so that the screen can be displayed finely.
Easily shows a current state changing the backlight on the monochrome type.
For the monochrome type (3-color LED backlight type), changing in the backlight color makes it easy to grasp a current state at a glance. "Green, orange, red" type and "White, red, pink" type is available for the 3-color LED backlight type.
Structure adapted to surrounding environments
IP65. It has a dust-proof, waterproof and drop-proof structure. (IP67 for GT02, GT12 and GT32-E)
High-intensity LED provided (LED backlight type)
As the high-intensity LED is provided, the AIG12MQ04D Protective Film Touch screen panel is bright, and the backlight does not need to be replaced.

Contact Best Price

Specifications:

The table below describes the parameters of the Panasonic GT12 GT12M0 AIG12MQ04D Touch Digitizer Film HMI Parts.

Ambient temperature:	0 to +50 °C +32 to +122 °F
Brand:	Panasonic
Part Number:	AIG12MQ04D
Product Line:	Panasonic GT12M0
Touch Size:	4.6"

Backlight:	3-color LED
Display Type:	STN monochrome LCD
Power supply:	24 V DC
Resolution:	320 (W) × 120 (H) dots
Warranty:	12-Month Warranty

Related Panasonic GT Series Part No. :

Panasonic GT12	Description	Inventory status
AIG12MQ02D	Panasonic GT12 GT12M0 Touch Screen Panel Front Overlay Repair	In Stock
AIG12MQ03D	Panasonic GT12 GT12M0 Front Overlay Touch Membrane	In Stock
AIG12MQ04D	Panasonic GT12 GT12M0 Touch Glass Front Overlay Repair	In Stock
AIG12MQ05D	Panasonic GT12 GT12M0 Touch Digitizer Glass Overlay Repair	Available Now
AIG12MQ12D	Panasonic GT12 GT12M1 MMI Touch Screen Front Overlay Replacement	In Stock
AIG12MQ13D	Panasonic GT12 GT12M1 HMI Touch Screen Protective Film	Available Now
AIG12MQ14D	Panasonic GT12 GT12M1 HMI Panel Glass Protective Film	Available Now
AIG12MQ15D	Panasonic GT12 GT12M1 Touch Screen Monitor Front Overlay	In Stock
Panasonic GT12	Description	Inventory status

Panasonic GT Series HMI Manuals PDF Download:

GT series Connection with other companies' PLCs Manual

GT series General-purpose serial communication Manual

GT Series MODBUS(RTU mode) Slave Manual

GT series User's Manual

Panasonic GT01 GT01R GT05 GT11 GT21C GT32 Series PDF

FAQ:

When performing installation work, make sure to observe the following:

Answer:
 Never obstruct the slits of the Panasonic GT AIG12MQ04D Touch Digitizer Glass Front overlay unit.
 Make sure that no foreign matter enters inside through the slits. If conductive foreign matter enters inside, it may malfunction or product failure.

Clearance when the Panasonic GT AIG12MQ04D is installed:

Answer:When installing other parts to the panel or wiring cables to it, provide a clearance around the panel to prevent cables from being damaged and to facilitate the installation work.
