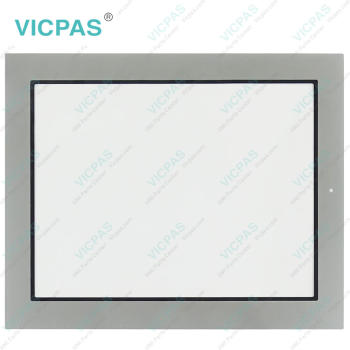

Proface 3580208-02 AST3501-T1-D24 Panel Glass Protective Film
group nameST3000 Series
-
Min Order1 piece
brand nameVICPAS
modelST-3501T 3580208-02 AST3501-T1-D24 PFXST3501TAD
payment methodWestern Union, T/T, PayPal, Credit Card
-
update timeFri, 08 Nov 2024 21:46:46 GMT
Paramtents
Brand Proface
Size 10.4 inch
Warranty 365 Days
Product Line Proface ST3000 Series
Supply ST3000 Touch Screen Protective Film
Part Number ST-3501T 3580208-02 AST3501-T1-D24 PFXST3501TAD
Shipping 2-4 workdays
Packging & Delivery
Min Order1 piece
Briefing
Detailed
Proface ST3000 3580208-02 AST3501-T1-D24 PFXST3501TAD Front Overlay Touch Panel Replacement
Order each part separately is available
ST-3501T 3580208-02 AST3501-T1-D24 PFXST3501TAD 10.4" Touchscreen Front Overlay Multi-Port Operator Interface Features:
• 65,536 Colors, Clear, Bright, 640 x 480 or 800 x 600 resolution, TFT Display
• 64-bit RISC 266Mhz CPU for Ultra-Fast Screen Refresh and Data Sampling
• No Grid Analog 3580208-02 AST3501-T1-D24 PFXST3501TAD Touch Panel for Improved Visibility and Precise Part Placement
• Supports Up to Four Protocol Drivers Simultaneously
• High-Speed Application Transfer, 10 Times Faster than Conventional Operator Interfaces
• 10 Base-T/100 Base-TX Ethernet, USB, Serial (MPI) and CompactFlash™ Communication Interfaces
• Audio Output, Alarm, Buzzer Remote Reset Interfaces
• Video Camera Support using Optional GP3000- VM01 Video Mix Module
VICPAS supply Pro-face ST-3501T 3580208-02 AST3501-T1-D24 PFXST3501TAD Protective Film and Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the Proface ST3000 3580208-02 AST3501-T1-D24 PFXST3501TAD Touch Screen Monitor Front Overlay HMI Parts.
| Ambient temperature: | 0°C (32°F) to 50°C (122°F) |
| Display Resolution: | 640 x 480 pixels |
| Part Number: | 3280035-41 |
| Product Line: | Proface ST3000 |
| Touch Size: | 10.4" |
| Brand: | Proface |
| Display Type: | TFT Color LCD |
| Power supply: | 24 V DC |
| Storage Temperature: | -20°C (-4°F) to 60°C (140°F) |
| Warranty: | 365 Days |
Related Proface ST3000 Series HMI Part No. :
| Proface ST3000 | Description | Inventory status |
| AST3201-A1-D24 | Proface ST3000 ST-3200 Touch Screen Monitor Front Overlay | In Stock |
| AST3211-A1-D24 | Proface ST3000 ST-3200 Touch Screen Protective Film Replacement | In Stock |
| AST3301-B1-D24 | Proface ST3000 ST-3300 Touch Panel Protective Film Repair | Available Now |
| AST3301-S1-D24 | Proface ST3000 ST-3300 Touchscreen Protective Film Repair | In Stock |
| AST3301-T1-D24 | Proface ST3000 ST-3300 HMI Touch Screen Glass Protective Film | Available Now |
| AST3301W-B1-D24 | Proface ST3000 ST-3300 Touch Screen Panel Front Overlay Repair | In Stock |
| AST3301W-S1-D24 | Proface ST3000 ST-3300 Front Overlay Touch Membrane | In Stock |
| AST3302-B1-D24 | Proface ST3000 ST-3300 Touch Glass Front Overlay Repair | In Stock |
| AST3401-T1-D24 | Proface ST3000 ST-3400 Touch Digitizer Glass Overlay Repair | Available Now |
| AST3501-C1-AF | Proface ST3000 ST-3500 HMI Panel Glass Protective Film | Available Now |
| AST3501-C1-D24 | Proface ST3000 ST-3500 HMI Touch Screen Protective Film | In Stock |
| AST3501-T1-AF | Proface ST3000 ST-3500 MMI Touch Screen Front Overlay Replacement | In Stock |
| AST3501-T1-D24 | Proface ST3000 ST-3500 Front Overlay HMI Touch Screen Glass | Available Now |
| AST3501W-T1-D24 | Proface ST3000 ST-3500 Touch Screen Panel Protective Film Repair | In Stock |
| Proface ST3000 | Description | Inventory status |
Proface ST3000 Series HMI Manuals PDF Download:
FAQ:
Question: Switches do not respond. So let me know how to check the 3580208-02 AST3501-T1-D24 PFXST3501TAD touch panel on the display unit.
Solution: For check method of 3580208-02 AST3501-T1-D24 PFXST3501TAD touch panel in online, please refer to the following.
1. Enter offline to check the 3580208-02 AST3501-T1-D24 PFXST3501TAD touch panel.
Please enter the offline mode to execute the following self-diagnosis.
(1) For the display unit of the analog 3580208-02 AST3501-T1-D24 PFXST3501TAD touch panel technology, the analog 3580208-02 AST3501-T1-D24 PFXST3501TAD touch panel is corrected (calibration settings).
Please check if the switch responds or not by setting the GP unit to online after the calibration.
(2) Select the [Check Touch Panel] option and check that the touched area lights up properly.
(3) If the problem continues after steps (1) and (2), the 3580208-02 AST3501-T1-D24 PFXST3501TAD display unit may be faulty.
2. Corrective Response for the case that you cannot enter offline mode
When the 3580208-02 AST3501-T1-D24 PFXST3501TAD display unit cannot enter offline mode, try the following measures.
(1) The [System Menu] used to enter offline mode may be set to be hidden.
If the system menu does not open, in GP-Pro EX, from [Display Unit], [Menu and Error Settings], the [Show System Menu] property is set to setting to display it, and then transfer the project file again.
If the 3580208-02 AST3501-T1-D24 PFXST3501TAD Protective Film Touch Screen display unit can enter offline mode after the project file is transferred, follow the steps described in [・ When you enter offline mode], above.
(2) If the 3580208-02 AST3501-T1-D24 PFXST3501TAD Touch Panel Front Overlay display unit cannot enter offline mode even after step 1), the display unit may be faulty.
Common misspellings:
3580208-02 AST3501-T1-D24 PFXST350TAD3580208-02 AST350-T1-D24 PFXST3501TAD
3580208-02 AST3501-T1-D42 PFXST3501TAD
358020B-02 AST3501-T1-D24 PFXST3501TAD
3580208-02 AST3501--T1-D24 PFXST3501TAD
