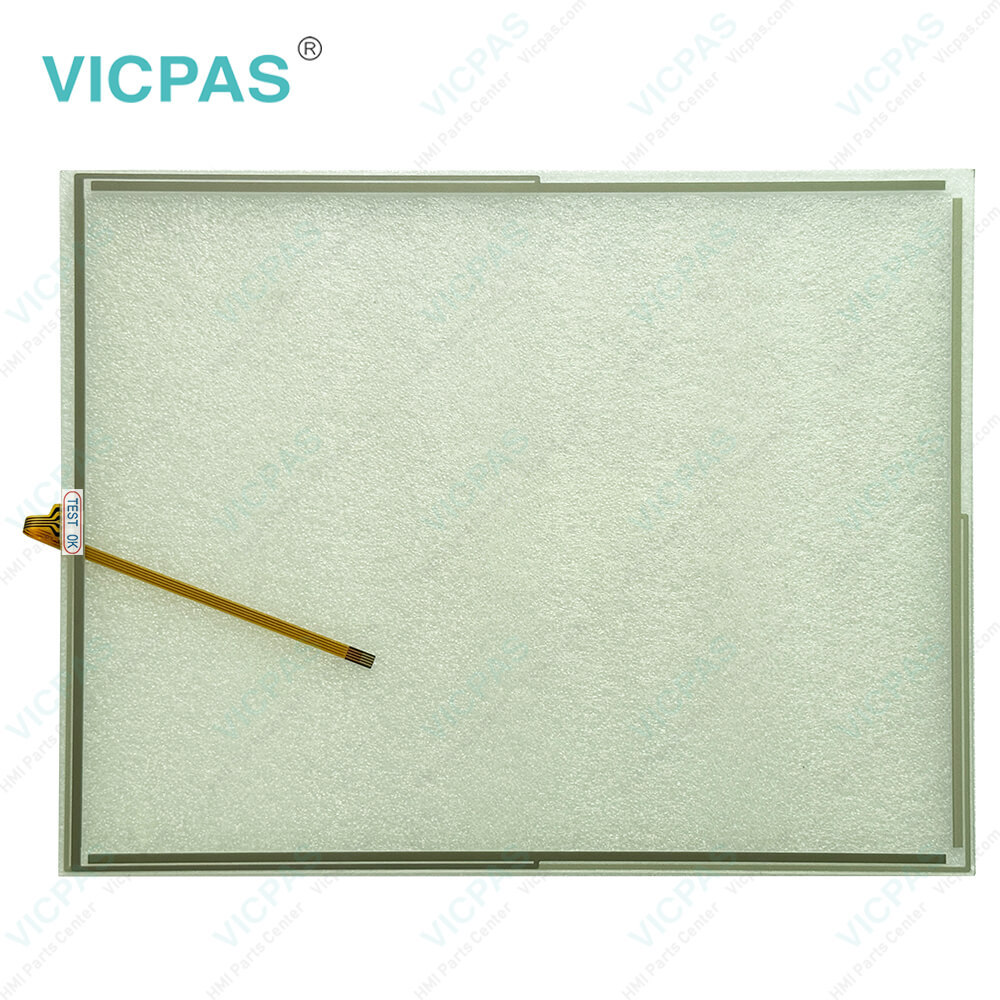

Delta DOP-115WX Front Overlay Touch Glass Repair

group nameOther Delta HMI Replacement
Min Order1 piece
brand nameVICPAS
modelDOP-115WX
payment methodWestern Union, T/T, PayPal, Credit Card
update timeThu, 07 Nov 2024 22:41:40 GMT

contact supplier

Paramtents

Brand Delta
Size 15 inch
Warranty 365 Days
Product Line Delta DOP-100 Series
Supply DOP-115WX Front Overlay Touch Digitizer Glass
Shipping 2-4 workdays

Packging & Delivery

Min Order1 piece

Briefing

Delta DOP-115WX Touch Membrane Front Overlay Replacement. 365 Days Warranty-Fully Tested-Factory Prices-Fast Shipping.

Detailed

Delta DOP-100 DOP-115WX Protective Film HMI Panel Glass Repair Replacement

Order each part separately is available

Delta DOP-100 DOP-115WX Front Overlay Touch Screen Repair Replacement

Different from the setting methods for the DOP-B and DOP-H series HMIs that use continuous Word addresses, DOP-W and DOP-100 series DOP-115WX Touch Screen Panel Glass Protective Film HMI use non-continuous addresses. Thus, DOP-115WX Front Overlay Touchscreen Panel HMI alarms can be triggered with either Bit or Word addresses, which is more flexible and user-friendly. In addition, alarm messages now support dynamic modification. In the old version, the displayed temperatures on the alarm messages were fixed, e.g. 100 degrees; now you can add ％d1 to the alarm message and use the monitoring address in [Alarm Settings] to input the value, so the DOP-115WX Touch Screen Monitor Front Overlay HMI displays the modified value when the alarm is triggered next time.

Alarm message supports up to 4,096 data entries. DOP-100 DOP-115WX Protective Film Touch Digitizer Glass HMI also provides a batch tasks tool for you to quickly complete the alarm group settings, allowing you to input the alarm group number easily. [Alarm History Table] provides more powerful functions: you can use the sorting and filter function to quickly view the alarm messages.

Contact Best Price

Specifications:

The table below describes the parameters of the Delta DOP-100 DOP-115WX Touch Digitizer Protective Film HMI Parts.

Cooling Method:	Natural air circulation
Backlight:	LED Back Light
Brand:	Delta
Product Line:	Delta DOP-100
Touch Size:	15"

Display Colors:	65,536 Colors
Display Type:	TFT LCD
Operation Temp.:	0 °C ~ 50 °C
Resolution:	1024 x 768 pixels
Warranty:	12-Month Warranty

Related Delta DOP-100 Series Part No. :

Delta DOP-100 HMI	Description	Inventory status
DOP-108IG	Delta DOP-100 Series Touch Screen Protective Film Replacement	In Stock
DOP-110CG	Delta DOP-100 Series Protective Film Touch Panel Repair	Available Now
DOP-110CS	Delta DOP-100 Series Touchscreen Protective Film Repair	In Stock
DOP-110IG	Delta DOP-100 Series Protective Film HMI Panel Glass	Available Now
DOP-110IS	Delta DOP-100 Series Front Overlay Touch Screen Monitor	In Stock
DOP-110WS	Delta DOP-100 Series HMI Touch Screen Glass Protective Film	Available Now
DOP-112MX	Delta DOP-100 Series Touch Screen Panel Front Overlay Repair	In Stock
DOP-112WX	Delta DOP-100 Series Front Overlay Touch Membrane	In Stock
DOP-115MX	Delta DOP-100 Series Touch Glass Front Overlay Repair	In Stock
DOP-115WX	Delta DOP-100 Series Touch Digitizer Glass Overlay Repair	Available Now
Delta DOP-100 Series	Description	Inventory status

Delta DOP-100 Series HMI Manuals PDF Download:

Delta DOP-100 New Functions Operating Instruction Manual

DELTA HMI DOP-103WQ-107WV-110WS Instruction Sheet

Delta Human Machine Interface DOP-100 Series

DOP-100 Series Transition Manual

DOP-100 User Manual

DOP-103BQ Instruction Sheet

FAQ:

Question: What is the half-life of Delta DOP-115WX HMI Panel Glass Protective Film backlight?

Answer: The half-life of DOP-115WX backlight is defined as original luminance being reduced by 50% when the maximum driving current is supplied to DOP-115WX Front Overlay Touchscreen HMI. The life of LED backlight shown here is an estimated value under 25°C normal temperature and humidity conditions.

Question: Can I apply the customized view for Delta's CNC Solution A Series to the B Series?

Answer: Yes, please follow the instructions below:
• Open the software panel project of the A Series (.dpb) with the DOPSOFT tool in the CNCSoft-B software.
• Configure the B Series models that the customized view will be applied to.
• Select the view project template of the B Series (.dpa) to be merged with the view.
• Check whether the name and content of the merged page are correct.In DOPSOFT, select Option > Configuration > Group Screen. Select SOFT and check the property settings.
