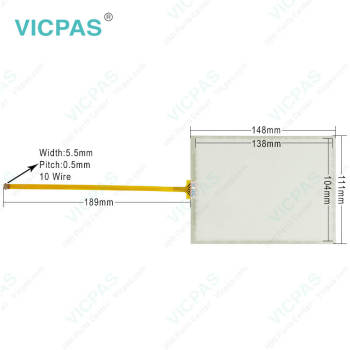

PanelView 5510 2715P-T7WD Touch Panel Overlay Repair

group namePanelView 5510
Min Order1 piece
brand nameVICPAS
model2715P-T7WD
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
update timeThu, 07 Nov 2024 22:42:35 GMT

contact supplier

Paramtents

Brand Allen Bradley
Product Line Allen-Bradley PanelView 5510 Repair Kit
Parts Touch Digitizer Monitor, Overlay, LCD Display
Shipping 2-3 workdays
Size 7-inch
Warranty 365 Days

Packging & Delivery

Min Order1 piece

Briefing

2715P-T7WD PanelView 5510 Front Overlay Touchpanel Glass Display. 365 Days Warranty-Fully Tested-Factory Prices-Fast Shipping.

Detailed

Allen-Bradley PanelView 5510 HMI 2715P-T7WD Touch Screen Monitor Front Overlay Repair Replacement

Order each part separately is available

Allen-Bradley PanelView 5510 HMI 2715P-T7WD Touch Screen Front Overlay Replacement

The PanelView 5510 terminals contain EtherNet/IP embedded switch technology. The 2715P-T7WD Touch Digitizer Monitor Protective Film LCD Display terminal communicates with ControlLogix controllers over an Ethernet connection with device level ring (DLR) or linear network topologies. Star technology is also supported when using switches. The PanelView 5510 2715P-T7WD HMI Touch Screen Front Overlay LCD Display terminal can reside on EtherNet/IP networks that run integrated motion and CIP Sync applications without adverse performance. The 2715P-T7WD Touch Screen Monitor Front Overlay LCD Display terminal is not a consumer or producer of CIP Sync or motion packets.

During runtime, the PanelView™ 5510 terminal runs HMI projects. A project is configured and downloaded to your 2715P-T7WD Resistive Touch Screen Protective Film LCD Display terminal from the View Designer application. The project launches each time the terminal restarts. The 2715P-T7WD Touch Panel Glass Front Overlay LCD Display terminal exchanges data values with the controller, animates the displayed data, and responds when you press keys or touch a screen or element on a screen. During runtime, you can perform these tasks:

• Navigate screens and their graphic elements

• View and manage alarms

• View and perform operations on a trend chart

• Display error information

• Configure 2715P-T7WD HMI Touch Panel Protective Film LCD Display terminal settings and view diagnostic information

VICPAS supply Allen Bradley PanelView 5510 HMI 2715P-T7WD Touch Screen Monitor, Front Overlay and LCD Display with 365 Days warranty and support Urgent Worldwide Shipping.

Contact Best Price

Specifications:

The table below describes the parameters of the 2715P-T7WD PanelView 5510 Parts.

Part Number:	2715P-T7WD
Backlight:	LED, non-replaceable
Brightness:	300 cd/m2 (Nits)
Status Indicators:	STS (green), ERR (red)
Input Voltage:	24V DC nom (18…30V DC)

Color Depth:	24-bit color graphics
View Area(W x H):	152 x 91 mm
Display Resolution:	800 x 480 WVGA, 5:3
Display Type:	Color TFT LCD
Warranty:	365 Days

Related Allen Bradley PanelView 5510 Terminals Part No. :

PanelView 5510	Description	Inventory status
2715P-T7CD	PanelView 5510 2715P-T7CD Touchpanel Digitizer Overlay Repair	In Stock
2715P-T7CD-B	2715P-T7CD-B PanelView 5510 Panel Glass Front Film Replacement	In Stock
2715P-T7CD-K	PanelView 5510 2715P-T7CD-K Overlay HMI Glass Monitor Repair	In Stock
2715P-B7CD	2715P-B7CD PanelView 5510 Membrane Keyboard Touch Glass Display Repair	Available Now
2715P-B7CD-B	2715P-B7CD-B PanelView 5510 7'' Panel Glass Keypad Membrane LCD Display	Available Now
2715P-B7CD-K	PanelView 5510 2715P-B7CD-K Touchscreen Membrane Switch Display Repair	In Stock
2715P-T7WD	PanelView 5510 2715P-T7WD 7'' Touch Panel Overlay Repair	In Stock
2715P-T7WD-B	2715P-T7WD-B PanelView 5510 7'' Protective Film Glass Display Repair	Available Now
2715P-T7WD-K	PanelView 5510 2715P-T7WD-K 7'' Glass Panel Front Overlay Repair	Available Now
2715P-T9WD	2715P-T9WD PanelView 5510 Touchscreen Protective Film LCD Display	In Stock
2715P-T9WD-B	2715P-T9WD-B PanelView 5510 Overlay Touch Glass LCD Display Repair	Available Now
2715P-T9WD-BSK	PanelView 5510 2715P-T9WD-BSK Panel Glass Protective Film Display Repair	In Stock
2715P-T9WD-K	PanelView 5510 2715P-T9WD-K 9'' Front Overlay Touch Panel Replacement	Available Now
PanelView 5510 HMI	Description	Inventory status

PanelView 5510 HMI Manuals PDF Download:

PanelView 5510 Terminals User Manual

PanelView 5510 Terminals Specifications

PanelView 5510 Terminals Specifications Technical Data

FAQ:

Question: What is the size of 2715P-T7WD Touch Digitizer Glass, Front Overlay and LCD Display?

Answer: The size of 2715P-T7WD Touch Screen Panel, Protective Film and LCD Display are 7-inch.

Question: What is the Panelview 5510 2715P-T7WD HMI parts price?

Answer: Submit a fast quote, send VICPAS an email for best price.

Question: How to apply the 2715P-T7WD front overlay?

Answer:

1. Pull the tab from one of the short sides and partially peel the liner away from adhesive layer.

2. Center the overlay over the bezel and carefully position the adhesive surface on the 2715P-T7WD Resistive Touch Screen LCD Display Screen terminal. While the protective liner is still covering the rest of the overlay, verify that it is properly centered.

3. Slowly peel off the rest of the liner while using a soft cloth to press the overlay on the screen. Make sure that the overlay lies flat with no bubbles or warps.

4. With a soft cloth or finger, press around the edges of the overlay to seal it, and remove any air bubbles trapped in the adhesive.
