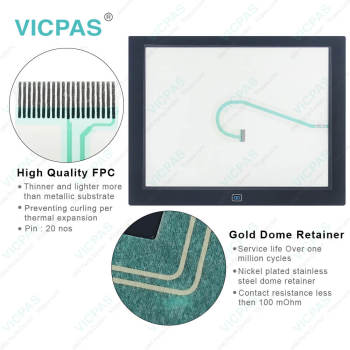

2715P-T10CD PanelView 5510 Overlay Glass Display Repair
group namePanelView 5510
-
Min Order1 piece
brand nameVICPAS
model2715P-T10CD
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
-
update timeThu, 07 Nov 2024 20:51:10 GMT
Paramtents
Brand Allen Bradley
Size 10.4 inches
Shipping 2-3 workdays
Supply 2715P-T10CD Touch Screen, Overlay, LCD Display
Product Line Allen-Bradley PanelView 5510 Repair Kit
Warranty 365 Days
Packging & Delivery
Min Order1 piece
Briefing
Detailed
Allen-Bradley PanelView 5510 HMI 2715P-T10CD Protective Film Resistive Touch Panel Repair Replacement
Order each part separately is available
The PanelView 5510 2715P-T10CD HMI Touch Screen Protective Film LCD Display terminal includes these features and capabilities:
• Tightly integrated control and design environment allows information to be shared between the PanelView 5510 2715P-T10CD Resistive Touch Screen Front Overlay LCD Display terminal and the Logix platforms.
• The Studio 5000® environment provides one point of access for the Studio 5000 View Designer® and Studio 5000 Logix Designer® applications.
• PanelView 5000 2715P-T10CD Touch Digitizer Glass Protective Film LCD Display terminal is compatible with the following controllers using firmware V27 or later: ControlLogix 5570 and 5580 controllers and CompactLogix 5370, 5380, and 5480 controllers.
• Ethernet communication that supports Device Level Ring (DLR), linear, or star network topologies.
• High-speed human machine interface (HMI) button control and easily configured navigation menu.
• Supports a maximum of 4000 Logix-based alarms per controller.
• Supports a maximum of 500 user-defined screens.
• Automatic Diagnostics capability.
VICPAS supply Allen Bradley PanelView 5510 HMI 2715P-T10CD Touchscreen, Front Overlay and LCD Display with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 2715P-T10CD PanelView 5510 Parts.
| Part Number: | 2715P-T10CD |
| Relative Humidity: | 5…95% without condensation |
| Storage Temperature: | - 25°C - 70°C |
| Operating Temperature: | 0°C - 55°C |
| Display Type: | Color TFT LCD |
| Warranty: | 365 Days |
| Input Voltage: | 24V DC nom (18…30V DC) |
| USB Host Ports: | 0.5A at 5V DC |
| Backlight: | LED, non-replaceable |
| Brightness: | 300 cd/m2 (Nits) |
Related Allen Bradley PanelView 5510 Terminals Part No. :
| PanelView 5510 | Description | Inventory status |
| 2715P-T10CD | PanelView 5510 2715P-T10CD Front Overlay Touch Glass LCD Display Repair | In Stock |
| 2715P-T10CD-B | 2715P-T10CD-B PanelView 5510 Touch Screen Protective Film LCD Display Repair | In Stock |
| 2715P-T10CD-K | PanelView 5510 2715P-T10CD-K LCD Display Touchscreen Overlay Repair | In Stock |
| 2715P-B10CD | 2715P-B10CD PanelView 5510 Keypad Membrane Touchscreen Repair | Available Now |
| 2715P-B10CD-B | 2715P-B10CD-B PanelView 5510 10.4'' Keypad Screen LCD Display Relacement | Available Now |
| 2715P-B10CD-K | PanelView 5510 2715P-B10CD-K Membrane Switch Touch Glass Repair Repair | In Stock |
| 2715P-T12WD | PanelView 5510 2715P-T12WD 12.1'' Touch Panel Overlay Replacement | In Stock |
| 2715P-T12WD-B | 2715P-T12WD-B PanelView 5510 12.1'' Protective Film Glass Display Repair | Available Now |
| 2715P-T12WD-BSK | PanelView 5510 2715P-T12WD-BSK 12.1'' Glass Panel Front Overlay Repair | Available Now |
| 2715P-T12WD-K | 2715P-T12WD-K PanelView 5510 Touchscreen Protective Film LCD Display | In Stock |
| PanelView 5510 HMI | Description | Inventory status |
PanelView 5510 HMI Manuals PDF Download:
FAQ:
Question: How to connect the PanelView 5510 2715P-T10CD Resistive Touch Panel Front Overlay LCD Display operator terminal to a DC power source?
Answer:
1. Verify that the wiring is not connected to a power source.
2. Strip 7 mm (0.28 in.) of insulation from the ends of the wires.
3. Secure the DC power wires to the marked terminals (+ and –) on the terminal block.
4. Secure the functional earth (FE) ground wire to the GND terminal on the terminal block.(Connect the GND terminal to a low-impedance FE ground.)
5. Apply power to the operator terminal.
Question: How to remove paint or grease from the bezel that is properly mounted in a NEMA, UL Type, or IP rated enclosure?
Answer:
1. Rub lightly with isopropyl alcohol (70% concentration).
2. To remove residue, use a mild soap or detergent solution.
3. Rinse with clean water.
Question: How to clean the PanelView 5510 2715P-T10CD display?
Answer:
1. Disconnect power from the 2715P-T10CD Touch Panel Glass Protective Film LCD Display terminal at the power source.
2. To clean the display and help prevent scratches, use a clean sponge or soft cloth with mild soap or detergent.
3. Dry the display with a chamois or moist cellulose sponge to avoid water spots.
Common misspellings:
215P-T10CD
2715P-T1CD
2715-PT10CD
2715P-1T0CD
2715P-T110CD
