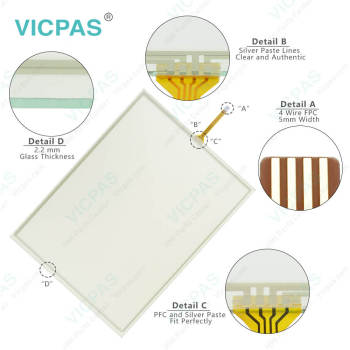

PP845 3BSE042235R1 Protective Film Glass Screen Repair
group namePanel 800
-
Min Order1 piece
brand nameVICPAS
modelPP845 3BSE042235R1
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
-
update timeSat, 09 Nov 2024 09:42:23 GMT
Paramtents
Warranty 365 Days
Product Line Panel 800
Types Touch Panel Glass and Protective Film
Shipping 2-3 workdays
Size 10.4 inches
Packging & Delivery
Min Order1 piece
Briefing
Detailed
Panel 800 PP845 3BSE042235R1 Front Overlay Touch Digitizer Glass Repair
Order each part separately is available
The Panel 800 operator panel is developed to satisfy the demands of humanmachine communication. Built-in functions such as displaying and controlling text, dynamic indication, time channels, alarm and recipe handling are included.
The operator panel work, for the most part, in an object-oriented way, making it easy to understand and use. The configuration operation of the panel is made in a personal computer, using the configuration tool Panel Builder 800. The project is then transferred and stored in the PP845 3BSE042235R1 operator panel.
The PP845 3BSE042235R1 operator panel can be connected to many types of automation equipment, such as PLCs, servos or drives.
VICPAS supply Panel 800 PP845 3BSE042235R1 Touch Screen Panel and Protective Film with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the PP845 3BSE042235R1 Panel 800.
| Part Number: | PP845 3BSE042235R1 |
| Touch Material: | Polyester on glass |
| Part Type: | New |
| Backlight: | LED |
| Warranty: | 365 Days |
| Diagonal (inches): | 3.8” widescreen |
| Overlay Material: | Autotex F157/F207 * |
| Active Area Of Display: | 70.1 x 52.6 mm |
| Display Resolution: | 320 × 240 pixels |
| Display Type: | TFT-LCD |
Related Panel 800 Terminals Part No. :
| Panel 800 | Description | Inventory status |
| PP815A 3BSE042239R1 | Panel 800 PP815A Front Overlay Touch Membrane | In Stock |
| PP815A 3BSE042239R2 | Panel 800 Series PP815A Touch Glass Front Overlay Repair | In Stock |
| PP820A 3BSE042243R1 | Panel 800 Series PP820A Membrane Keyboard Keypad Repair | Available Now |
| PP820A 3BSE042243R2 | Panel 800 PP820A HMI Panel Glass Protective Film | Available Now |
| PP825A 3BSE042240R1 | Panel 800 Series PP825A Touch Screen Monitor Front Overlay | In Stock |
| PP826 3BSE042244R1 | Panel 800 Series PP826 Membrane Keypad Switch Replacement | In Stock |
| PP826A 3BSE042244R3 | Panel 800 Series PP826A HMI Operator Panel Keypad | Available Now |
| PP835 3BSE042234R1 | Panel 800 Series PP835 Protective Film Touchscreen Repair | In Stock |
| PP835A 3BSE042234R2 | Panel 800 Series PP835A HMI Protective Film Touch Screen Glass | Available Now |
| PP836 3BSE042237R1 | Panel 800 Series PP836 Operator Keyboard Replacement Repair | In Stock |
| PP836A 3BSE042237R2 | Panel 800 Series PP836A Switch Membrane Repair Replacement | In Stock |
| Panel 800 Repair | Description | Inventory status |
Panel 800 HMI Manuals PDF Download:
FAQ:
Question: How to install the PP845 3BSE042235R1 operator terminal?
Answer:
1. Unpack and check the delivery. If damage is found, notify the supplier.
2. Disconnect the PP845 3BSE042235R1 operator panel from the power supply.
3. Remove the plastic cover from the expansion port.
4. Secure the expansion module in position, using the provided screws.
5. Connect the PP845 3BSE042235R1 operator panel to the power supply.
Question: How to ground the PP845 3BSE042235R1 operator panel?
Answer:
1. The operator panel’s mounting clamps do not provide a secure grounding connection between the panel and the device cabinet.
2. Connect a 2.5 mm² wire between the operator panel’s quick-connect plinth and the panel chassis.
3. Connect a 6 or 4 mm² wire or grounding braid between the panel’s chassis and the closest grounding point on the door.
4. Connect a strong but short grounding braid between the door and the device cabinet.
5. Twist the cables onto the 24 V DC feed.
6. A ferrite core suppresses disturbances to the 24 V feed. 2 turns around the ferrite core provide 4 times the suppression of 1 turn. 3 turns around the ferrite core provide 9 times the suppression of 1 turn.
Common misspellings:
PP85 3BSE042235R1
PP845 3BSE04235R1
PP854 3BSE042235R1
PP845 3BSE024235R1
PP845 3BSE0042235R1
