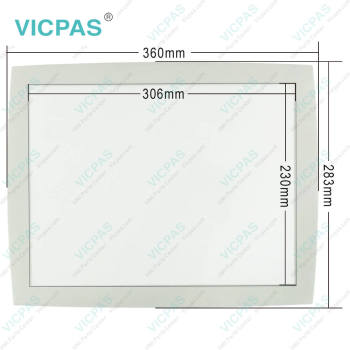

PP865A 3BSE042236R2 HMI Touch Panel Film Repair

group namePanel 800
Min Order1 piece
brand nameVICPAS
modelPP865A 3BSE042236R2
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
update timeSat, 09 Nov 2024 06:25:55 GMT

contact supplier

Paramtents

Warranty 365 Days
Product Line Panel 800
Types Touch Screen Monitor and Protective Film
Shipping 2-3 workdays
Size 15 inches

Packging & Delivery

Min Order1 piece

Briefing

PP865A 3BSE042236R2 Front Overlay Resistive Touch Panel Repair. 365 Days Warranty-Fully Tested-Factory Prices-Fast Shipping.

Detailed

Panel 800 PP865A 3BSE042236R2 Touch Digitizer Monitor Front Overlay Replacement

Order each part separately is available

PP865A 3BSE042236R2 Touch Panel Glass Front Overlay Replacement

The description of the PP865A 3BSE042236R2 operator terminal:

Reverse side material: Powder-coated aluminum

Serial port RS232C: 9-pin D-sub contact, male with standard locking screws 4-40 UNC.

Real time clock battery: Rechargeable battery.

Keyboard material/Front panel: Touch screen: Polyester on glass, 1 million finger touch operations. Overlay: Autotex F157/F207 *.

Serial port RS422/RS485: 25-pin D-sub contact, chassis-mounted female with standard locking screws 4-40 UNC.

Real time clock: ±20 PPM + error because of ambient temperature and supply voltage. Total maximum error: 1 min/month at 25 °C Temperature coefficient: -0.034±0.006 ppm/°C2

Display: TFT-LCD. 1024 x 768 pixels, 64K color. CCFL backlight lifetime at the ambient temperature of +25 °C: >35,000 h.

UL, cUL approvals (when procuct or packing is marked): UL 1604 Class I, Div 2 / UL 508 / UL 50 4x indoor use only

VICPAS supply Panel 800 PP865A 3BSE042236R2 Resistive Touch Panel and Front Overlay with 365 Days warranty and support Urgent Worldwide Shipping.

Contact Best Price

Specifications:

The table below describes the parameters of the PP865A 3BSE042236R2 Panel 800.

Part Number:	PP865A 3BSE042236R2
Diagonal (inches):	15” widescreen
Relative Humidity:	5 - 85 % non-condensed
Warranty:	365 Days
Display Type:	TFT-LCD

Backlight:	CCFL
Touch Material:	Polyester on glass
Overlay Material:	Autotex F157/F207 *
Active Area Of Display:	304.1 x 228.1 mm
NEMA:	4x indoor use only

Related Panel 800 Terminals Part No. :

Panel 800	Description	Inventory status
PP815A 3BSE042239R1	Panel 800 PP815A Front Overlay Touch Membrane	In Stock
PP815A 3BSE042239R2	Panel 800 Series PP815A Touch Glass Front Overlay Repair	In Stock
PP820A 3BSE042243R1	Panel 800 Series PP820A Membrane Keyboard Keypad Repair	Available Now
PP820A 3BSE042243R2	Panel 800 PP820A HMI Panel Glass Protective Film	Available Now
PP825A 3BSE042240R1	Panel 800 Series PP825A Touch Screen Monitor Front Overlay	In Stock
PP826 3BSE042244R1	Panel 800 Series PP826 Membrane Keypad Switch Replacement	In Stock
PP826A 3BSE042244R3	Panel 800 Series PP826A HMI Operator Panel Keypad	Available Now
PP835 3BSE042234R1	Panel 800 Series PP835 Protective Film Touchscreen Repair	In Stock
PP835A 3BSE042234R2	Panel 800 Series PP835A HMI Protective Film Touch Screen Glass	Available Now
PP836 3BSE042237R1	Panel 800 Series PP836 Operator Keyboard Replacement Repair	In Stock
PP836A 3BSE042237R2	Panel 800 Series PP836A Switch Membrane Repair Replacement	In Stock
Panel 800 Repair	Description	Inventory status

Panel 800 HMI Manuals PDF Download:

Compact Product Suite Pane 800 5.1 Data sheet

3BSE043448R501 en Panel 800 PP865 5.1 Hardware and Installation

FAQ:

Question: How to install the PP865A 3BSE042236R2 operator terminal?

Answer:

1. Unpack and check the delivery. If damage is found, notify the supplier.

PP865A 3BSE042236R2 Touch Panel Front Overlay Repair

2. Place the panel cut out where the PP865A 3BSE042236R2 operator panel is to be situated, draw along the outer sides of the holes and cut according to the markings.
