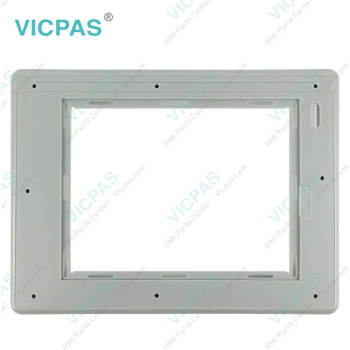

2711P-RBT10 Display Module Front Overlay Touch Glass LCD Enclosure
group nameDisplay Modules
-
Min Order1 piece
brand nameVICPAS
model2711P-RBT10
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
-
update timeSat, 09 Nov 2024 01:43:33 GMT
Paramtents
Brand Allen Bradley
Warranty 365 Days
Product Line Display Module
Size 10.4 Inch
Supply PanelView Plus Touch Screen Panel Repair
Parts 2711P-RBT10 Touch Screen Protective Film
Packging & Delivery
Min Order1 piece
Briefing
Detailed
2711P-RBT10 PanelView Plus Touch Screen Panel, Protective film, LCD Screen, Plastic Cover Body, Mounting Clips, Label, Gasket Repair Replacement
Order each part separately is available
VICPAS supply Panelview Plus 2711P-RBT10 protective film, touchscreen, LCD Display Screen, Housing, Mounting Clips, Label, Gasket for repair replacement, make the HMI running. We provide a 365 days VICPAS warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing.
The discontinued Allen Bradley Panelview Plus 2711P-RBT10 is an operator terminal that enables the user to interface with their machine. This Panelview allows the user to connect using FactoryTalk View Machine Edition software and a Ethernet and RS-232 communication port with a 1761-NET-ENI communication cable(s). The user is able to control the HMI using the Touchscreen to input information and data. This unit is powered using 85-264 VAC power. The most common Series are: Series A, B, C, D, E, F, G and the most common firmware is not applicable. EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network that supports real time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with application transfers and printing as well. The EtherNet/IP screen displays and allows the user to modify some of the EtherNet/IP communication settings for a PanelView terminal. The 2711P-RN20 Ethernet communication module is available for the 700 to 1500 terminals if another Ethernet port is required. The module has its own unique IP address. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connections. The parameters are downloaded with the application.
Specifications:
The table below describes the parameters of the 2711P-RBT10 PanelView Plus Touchscreen Panel Glass Protective Film.
| Part Number: | 2711P-RBT10 |
| Product Line: | Display Module |
| Screen Diagonal: | 10.4 in |
| Warranty: | 365 Days Warranty |
| Input Power: | 24 VDC |
| Software: | Panelbuilder 32 |
| Mounting Position: | vertical |
| Input Type: | Touchscreen |
| Communication: | Remote I/O and RS-232 Printer Port |
| Firmware: | 4.00-4.48 |
Related PanelView Plus Series Part No. :
| Display Modules | Description | Inventory status |
| 2711P-RBB7 | Allen Bradley PanelView Plus Series Terminal Keypad Touch Panel LCD Display Plastic Case | In Stock |
| 2711P-RBB12 | Allen-Bradley PanelView Plus HMI Membrane Keyboard Touchscreen LCD Screen Plastic Shell | In Stock |
| 2711P-RBB15 | Allen Bradley PanelView Plus Touch Screen Glass Switch Membrane LCD Display HMI Case | Available Now |
| 2711P-RBK7 | Allen-Bradley PanelView Plus Keyboard Membrane LCD Display Screen Plastic Cover Body | In Stock |
| 2711P-RBK10 | Allen Bradley PanelView Plus Series Operator Panel Keypad LCD Display Panel Plastic Shell | In Stock |
| 2711P-RBK12 | Allen-Bradley PanelView Plus Membrane Switch Keypad LCD Display Plastic Cover Body | In Stock |
| 2711P-RBK15 | Allen-Bradley PanelView Plus Membrane Keyboard Keypad LCD Display Screen HMI Case | Available Now |
| 2711P-RBT7 | Allen-Bradley PanelView Plus Front Overlay Touch Screen Monitor LCD Screen Housing Repair | In Stock |
| 2711P-RBT10 | Allen Bradley PanelView Plus HMI Panel Glass Protective Film LCD Display Plastic Case | Available Now |
| 2711P-RBT12 | Allen-Bradley PanelView Plus Touch Digitizer Front Overlay LCD Display Panel Housing | In Stock |
| 2711P-RBT15 | Allen-Bradley PanelView Plus Touch Screen Panel Protective Film LCD Screen Enclosure | In Stock |
| Allen-Bradley HMI | Description | Inventory status |
AB Panelview Plus Manuals PDF Download:
FAQ:
Question: What is the input type of PanelView Plus 2711P-RBT10?
Answer: The input type of 2711P-RBT10 is a touchscreen. The touchscreen of PanelView Plus is a color display that offers an analog resistive touch screen for touch input.
Question: Does Allen Bradley 2711P-RBT10 have extended features?
Answer: This PanelView Plus 2711P-RBT10 does not have extended features.
Question: Question:How to connect Allen Bradley PanelView Plus 2711P-RBT10 DC power?
Answer:Follow these steps to connect the terminal DC power.
1. Verify that the terminal is not connected to a power source.
2. Secure the DC power wires to the terminal block.
Follow the markings on the terminal blocks and the terminal for proper connections.
3. Secure the earth/ground wire to the earth/ground terminal screw at the bottom of the display.
Question: What is the 2711P-RBT10 PanelView Plus touch screen panel price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Question: What type of display does the Allen Bradley Display Module 2711P-RBT10 have?
Answer: The 2711P-RBT10 touchscreen has a multicolor LCD as its display type.
Common misspellings:
2711P-RBT1
271P-RBT10
2711PR-BT10
2711P-R8T10
2711PP-RBT10
