2711-NP2 Mounting Clips for PanelView Plus 700 to 1500 Terminals

group nameAllen Bradley touch screen repair
Min Order1 piece
brand nameVICPAS
model2711-NP2
payment methodWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
update timeFri, 08 Nov 2024 09:24:36 GMT

contact supplier

Paramtents

Brand Allen Bradley
Warranty 365 Days
Product Line Mounting Clips
Supply 2711-NP2 Mounting Clips Repair
Parts 2711-NP2 Mounting Clips

Packging & Delivery

Min Order1 piece

Briefing

Allen Bradley 2711-NP2 Mounting Clips for 700 to 1500 terminals. Brand New-365 Days Warranty-Fully Tested-Factory Prices-Fast Shipping

Detailed

2711-NP2 Mounting Clips for PanelView Plus 700 to 1500 Terminals Repair

VICPAS supply 2711-NP2 Mounting Clips for PanelView Plus 700 to 1500 Terminals repair replacement, make the HMI running. We provide a 365 days VICPAS warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing.

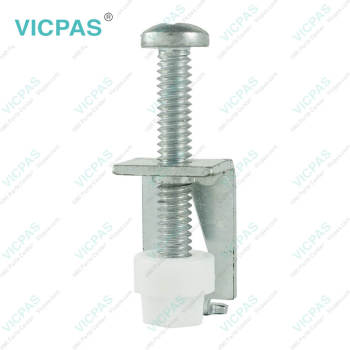

The Allen Bradley 2711-NP2 Mounting Clip is a high-performance product designed specifically for industrial automation equipment. Made from high-strength metal materials, this mounting clip offers exceptional durability and stability, capable of enduring harsh industrial environments. Its robust structure ensures secure installation of equipment, helping to prevent displacement or damage due to vibration or impact.

The 2711-NP2 Mounting Clip is particularly suited for securing and installing the 2711P series panel displays. Its precise design allows for firm fixation of the display, ensuring safety and stability during operation. This mounting clip can adapt to various complex installation conditions and boasts excellent corrosion resistance, making it suitable for use in high humidity, high temperature, and other adverse environments.

In addition to its outstanding physical properties, the Allen Bradley 2711-NP2 Mounting Clip is also very easy to install. Users can effortlessly complete the installation and setup by following the provided instructions. Whether for assembling new equipment or maintaining and upgrading existing systems, this metal mounting clip is an ideal choice, significantly enhancing the operational efficiency and overall stability of the equipment.

Contact Best Price

Related Mounting Levers Mounting Clips Series Part No. :

Mounting Levers	Description	Inventory status
2711-NP2	Mounting Clips for Allen-Bradley PanelView Plus 700 to 1500 Terminal	Available Now
2711P-RMCP	Mounting levers for PanelView 5310, 5500, 5510, and PanelView Plus 7 Performance	In Stock
2711P-RMCS	Allen Bradley PanelView Plus 7 Standard Terminals Mounting Levers	In Stock
2711P-RTFC	Replacement Mounting Levers for PanelView Plus 400 and 600 Terminals	In Stock
2711P-RTMC	Replacement Mounting Clips for PanelView Plus 700 to 1500 Terminals	Available Now
77158-008-51	Mounting Clips for PanelView Plus 700 to 1500 Terminals Replacement	In Stock
77158-008-52	Mounting Clips for PanelView Plus 700, 1000, 1250, 1500 Terminals	Available Now
77158-008-53	Allen-Bradley PanelView Plus 700, 1000, 1250, 1500 Mounting Clips	In Stock
77162-009-51	Mounting Levers for PanelView Plus 400 and 600 Terminals Replacement	In Stock
Mounting Clips	Description	Inventory status

Allen Bradley Mounting Clips Mounting Levers Manuals PDF Download:

PanelView Mounting Levers Installation Instructions

PanelView Plus 7 Performance Terminals Technical Data

PanelView Plus 7 Standard Terminals Mounting Levers

PanelView Plus Terminals User Manual

FAQ:

Question: Mount the 700 to 1500 Terminal in a Panel

Solution: Mounting clips secure the terminal to the panel. The number of clips you use (4, 6, or 8) varies by terminal type.
Mount the 400 or 600 Terminal in a Panel
Follow these steps to mount a 700 to 1500 terminal in a panel.
1. Cut an opening in the panel by using the panel cutout shipped with the terminal.
2. Make sure the terminal sealing gasket is properly positioned on the terminal.
This gasket forms a compression-type seal. Do not use sealing compounds.
Mount the 400 or 600 Terminal in a Panel
3. Install the legend strips before installing the terminal if you are using keypad legend strips on keypad terminals.
Be careful not to pinch the legend strip during installation.
4. Place the terminal in the panel cutout.
5. Slide the ends of the mounting clips into the slots on the terminal.
Mount the 400 or 600 Terminal in a Panel
6. Tighten the mounting clip screws by hand until the gasket seal contacts the mounting surface uniformly.

7. Tighten the mounting clips screws to a torque of 0.90…1.1 Nm (8…10 lb•in) by using the specified sequence, making sure not to overtighten.
Mount the 400 or 600 Terminal in a Panel
