2600W AC/DC submersible pump solar pumping system solar powered submersible water pump solar well pump kits

2600W AC/DC submersible pump solar pumping system solar powered submersible water pump solar well pump kits

group name4/5DFS AC/DC SOLAR PUMP
Min Order1 piece
brand nameDIFFUL
model4/5DFS33.8-41-2600
payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Cash
update timeFri, 08 Nov 2024 07:38:19 GMT

contact supplier

Paramtents

Type Shielded water-filled motor solar pump
Pump Body Material 304 Stainless steel
impeller Material 304 Stainless steel
Application Poultry Farming,Irrigation,Drip Irrigation
Package type wooden case
Warranty 2 years

Packging & Delivery

Min Order1 piece

Briefing

Shielded water-filled motor solar water pump.
2600W, max head：41m，max flow：33.8m3/h

Detailed

2600w ac/DC SHIELDED WATER-FILLED MOTOR SOLAR water PUMP WITH S/S IMPELLER

shielded water filled motor solar pump 4/5DFS33.8-41-2600

Model	DC Voltage range	AC Voltage range	Power	Max flow	Max head
4/5DFS33.8-41-2600	60-380Vmp （60-440VOC）	90-240VAC	2600W	33.8m3/h	41m

Outlet	Pump size	Cable	PV	Connection mode	Pump body
2.5”	5”	2m	330W*9	in series	5DFS20/2

4/5DFS33.8-41-2600 SOLAR PUMP

4/5DFS33.8-41-2600 solar pump Performance curve

SHIELDED WATER-FILLED MOTOR ADVANTAGE

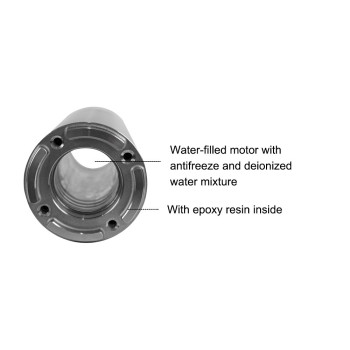

4/5DFS33.8-41-2600 solar pump water filled motor

- Motor with antifreeze and deionized water mixture. Will not cause any water pollution.

- The coil is a fully enclosed structure and filled with epoxy resin. The motor is not easy to be damaged, and the service life is prolonged.

- Submerging depth can reach 150 meters.

4/5DFS33.8-41-2600 solar pump motor

- Graphite bearings are waterproof, wear-resistant, and have a long service life.

- Pottery-plated rotor shaft, not easy to rust, wear-resistant, long service life.

- Advanced brushless dc motor, saving energy and offering maximum.

Built-in intelligent controller ADVANTAGE

- Built-in controller, with MPPT and DSP Technology, offering the easiest and simplest installation.

- Intelligent frequency conversion algorithm, maximizing efficiency and saving energy.

- Can be powered from solar panels, mains, or power generators, guaranteeing operation day or night.

- In DC mode, the MPPT function can achieve over 99% efficiency.

- In AC mode, the power factor correction function can make the power factor exceed 0.99.

- Dry-running protection, Reverse protection, Over-load protection, Over-current protection, Over-voltage protection, Phase loss protection.

HOW TO CHOOSE A PUMP

Confirm you technical requiremt

How deep is your well(bore hole)?

How far is the distance between tank and well?

What's you requirement about the flow(L/H)?

Compare your requiremt with out product

Calculate"Actual Pump Head"and find the proper pump with the right head.

Then you can choose the pump you want according to different folw and prices.

4/5DFS33.8-41-2600 solar pump application
