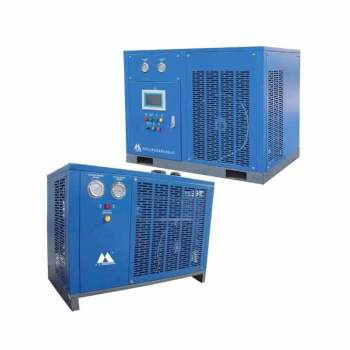

group nameRefrigerated air dryer
Min Order1 unit
brand nameSHANLI
modelSLAD-25NF
payment methodL/C, T/T
update timeTue, 05 Nov 2024 14:47:13 GMT
Air inlet temperature ≤45°C
Cooling way Air-cooled
Ambient temperature ≤38°C
Pressure dew point 2~10°C
Air inlet pressure 0.6~1.0MPa
Pressure loss ≤3% of inlet pressure
Place of origin Hangzhou, China
Configuration Stationary
Warranty 1 year
Color depend on requirement
Size185cm x 80cm x 170cm
Weight540.00kg / unit
Min Order1 unit
Technical Specifications
● IHI air dryer
● Pressure range: 0.6-1.6 Mpa
● Max air inlet temp.: 60 Deg C
● Max ambient temp.: 50 Deg C
● Max cooling water inlet temp.: 38 Deg C
● Cooling method: air cooled type / water-cooled type
● Pressure dew point: 2-10 Deg C
● Power: 220/380V-1PH-50HZ
● Refrigerant: R-22 (R-407C, R-134A as optional)
Note: IHI air dryer without metal box board for over 80 m3/ min. Other special standards can be customized.
Main Components
Compressor:Copeland,Bitzer or Performer
Heat exchanger:Aluminum plate fin type
Expansion Valve:Danfoss
By Pass Valve:Danfoss
Auto Drainer:Electronic Drainer
Working Principle
IHI air dryer makes the water vapor in the compressed air condenses into droplets through cooling so as to achieve the
purpose of reducing moisture content. Condensed droplets are discharged by the automatic drainage system.
Annotation:
1. Cooling medium compressor | 6. Manual valve | 11. Hot gas by-pass valve |
---|---|---|
2. Air condenser | 7. Cooling medium sight glass | 12. Water volume adjustable valve |
3. Water condenser | 8. Expansion valve | 13. Pre-cooling gas |
4. Magnetic valve | 9. Automatic drainer | 14. Evaporator |
5. Drying filter | 10. Gas water separator | 15. Effective separator |
Performance Parameters
IHI air dryer | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Model | Capacity | Voltage | Fan Power | Pipe Diameter | N.W | Length | Width | Height | |||
(l/s) | (Nm3/min) | (Nm3/h) | (cfm) | (V) | (W) | (Kg) | (mm) | (mm) | (mm) | ||
SLAD-0.5NF | 11 | 0.65 | 39 | 23 | 220 | 1x50 | G1" | 45 | 640 | 450 | 650 |
SLAD-1NF | 20 | 1.2 | 72 | 42 | 220 | 1x50 | G1" | 70 | 700 | 470 | 670 |
SLAD-2NF | 42 | 2.5 | 150 | 107 | 220 | 1x100 | G1" | 110 | 700 | 570 | 749 |
SLAD-3NF | 60 | 3.6 | 216 | 127 | 220 | 1x135 | G1" | 130 | 750 | 570 | 750 |
SLAD-4.5NF | 83 | 5 | 300 | 177 | 220 | 1x230 | G1 1/2" | 150 | 920 | 640 | 759 |
SLAD-6NF | 113 | 6.8 | 408 | 240 | 220 | 2x135 | G1 1/2" | 160 | 1050 | 640 | 762 |
SLAD-8NF | 142 | 8.5 | 510 | 300 | 220 | 2x135 | G2" | 200 | 980 | 750 | 1238 |
SLAD-10NF | 182 | 10.9 | 654 | 385 | 380 | 2x190 | G2" | 250 | 1090 | 770 | 1238 |
SLAD-12NF | 213 | 12.8 | 768 | 452 | 380 | 2x190 | G2" | 250 | 1090 | 770 | 1238 |
SLAD-15NF | 267 | 16 | 960 | 565 | 380 | 2x190 | DN65 | 310 | 1460 | 750 | 1604 |
SLAD-20NF | 367 | 22 | 1320 | 777 | 380 | 2x230 | DN65 | 410 | 1670 | 800 | 1623 |
SLAD-25NF | 447 | 26.8 | 1608 | 947 | 380 | 2x230 | DN80 | 540 | 1820 | 800 | 1673 |
SLAD-30NF | 533 | 32 | 1920 | 1131 | 380 | 2x420 | DN80 | 640 | 1900 | 860 | 1855 |
SLAD-40NF | 725 | 43.5 | 2610 | 1537 | 380 | 3x230 | DN100 | 740 | 2200 | 930 | 1920 |
SLAD-50NF | 883 | 53 | 3180 | 1873 | 380 | 3x420 | DN100 | 880 | 2450 | 900 | 2090 |
SLAD-60NF | 1117 | 67 | 4020 | 2368 | 380 | 4x420 | DN125 | 1010 | 2140 | 1450 | 1767 |
SLAD-80NF | 1500 | 90 | 5400 | 3180 | 380 | 4x550 | DN125 | 1300 | 2070 | 1600 | 1986 |
SLAD-100NF | 1833 | 110 | 6600 | 3887 | 380/3/50 | 6x550 | DN150 | 2000 | 2700 | 1600 | 1996 |
Company Information
● Hangzhou Shanli Purify Equipment Corp., was formed in 1997, as a IHI air dryer company.
● The workshop at integrated engineers and contractors has a dedicated team, which is continuously engaged in
upbringing of new technologies for greater efficiency.
● The company was involved in supplying of IHI air dryer, desiccant air dryers, compressed air filters, oil water
separators and water chillers as a manufacturer, exporter and supplier.
Why to chose Shanli?
1. Quality:
● Certification: CE, ISO-9001, ISO-14001 and 26 patents to ensure unmatched quality of our product assortment.
● Stringent quality control mechanism: updating the involved technology as per prevailing international standards;
● Stable performance: using premium grade raw material from highly reputed manufacturers, likeDanfoss, Emerson, Performer,
2. Customer:
● Some of major cooperated customers (from our wide range of customers ) have been enlisted below for reference:
S.NO. | VALUED CUSTOMERS | S.NO. | VALUED CUSTOMERS | S.NO. | VALUED CUSTOMERS |
---|---|---|---|---|---|
1 | Atlas Copco | 2 | BOGE Kompressoren | 3 | Ingersoll Rand |
4 | CompAir Air Compressors | 5 | Sinopec Group | 6 | Sullair Asia |
3. Scale:
● Shanli purify has become one of largest manufacturers in purifying industry of China with annual sales turnover USD 22 million.
● Shanli air dryer has a wide range of customers who have full faith in our service delivery, warranty, quality and workmanship.
4.Comprehensive Product Line
Shanli supply Air cooled IHI air dryer,water cooled IHI air dryer,normal temperature IHI air dryer and
high temperatuer IHI air dryer.
Shanli provide Heatless adsorbent air dryer,heated adsorption air dryer,Heat of Compression desiccant air dryer and
Blower Purge adsorption air dryer.
Energy ‐ saving Products
It includes Zero purge Heat of Compression adsorption air dryer,Zero purge Blower Purge desiccant air dryer and
Other Products
This series include Pre-cooler machine, Water chiller, Heat recovery unit for air compressor, air Filter and air filter element.
5.Technical Force
Technical research and development capabilities: 35 R& D personnel, including five senior engineers, 12 engineers, 18
assistantengineers. (Innovation) Award Fund has set up, the company so far has 30patents.
Product Applications
There are still some areas and applications where Shanli air dryers can be used, such as power construction, packing food,
making ship, cleaning medical molding,removing EDM recast and discoloration, finishing and texturing injection mold cavities,
cleaning orifices in turbine blades,engraving optical lenses,cleaning and preparation of semi-precious stones and jewelry, etc.
Package and Shipment
● Packing details: Wooden crate pallet plus foam board and bubble film, Full closed wooden case. 1pcs/each package
(for stationary desiccant air dryer)
● Transportations: sea transport, rail transport, air transport, road transport, LCL/ FCL container transport or as requested
● Trade terms: FOB, CFR, CIF and EXW, DDP, etc.
● Delivery time: in 20 days after receiving deposit (customized machines not included)
