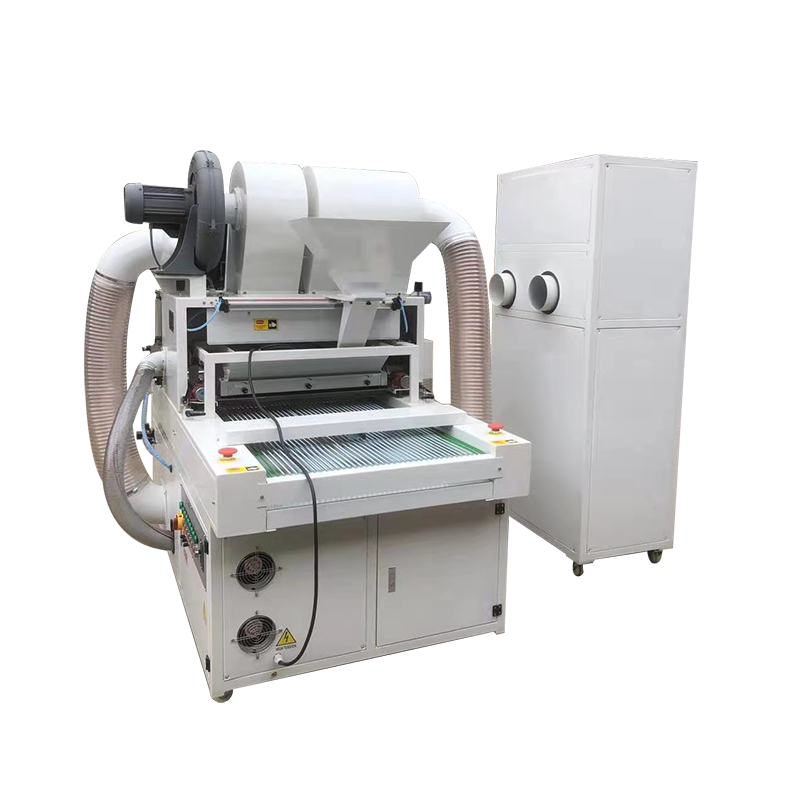

Hot Melt Powder Coating Machine For Heat Transfer Stickers
group nameHot Melt Powder Dusting Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-SF80S
payment methodT/T
-
update timeSat, 21 Sep 2024 08:50:22 GMT
Paramtents
Transmission belt width 800mm
Width of Power coating 650mm
Thickness of material 1~5mm
Voltage AC380V
Weight 3500KG
Application area plastic film , label roll
MAX. POWDER COATING 2 Kg/㎡
POWDER RANGE 60-300 m
MAX. BELT SPEED 20m/min
Packging & Delivery
Weight3500.00kg / set
Min Order1 set
Briefing
Detailed
The hot melt powder coating machine is a post-printing equipment that replaces the traditional manual hot melt powder sprinkler. It is suitable for the hot melt powder sprinkler process on transfer products such as clothing trademarks, heat transfer, wallpaper, paper, film, etc. It has the function of powder sprinkler and residual powder recovery in one go, and is easy to use, flexible to adjust, high in work efficiency, and free of dust pollution. All transmission parts of the machine are frequency-controlled and can be directly connected to the fully automatic screen printing machine, achieving perfect results for the hot melt powder sprinkler process on paper, film, wallpaper, etc. with high surface requirements. If required by the process, the drying equipment can be directly connected to the back of the machine.
★Application
| Model: TX-SF80S | Belt width: 800mm |
|---|---|
| MAX. SHEET WIDTH: 600MM | MAX. THICKNESS: 5MM |
| MAX. POWDER COATING: 2 Kg/M2 | POWDER RANGE: 60-300 m |
| TOTAL POWER: AC380V / 4.1KW | RATED VOLTAGE: AC380V , |
| MAX. BELT SPEED: 20m/min | Weight: 3500KG |
★MAIN FEATURES:
