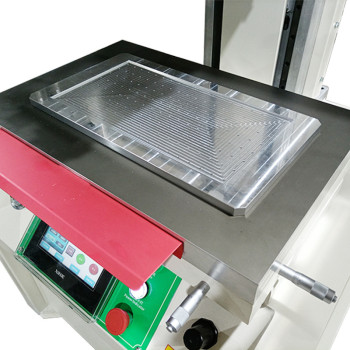

Servo Flat Screen Printing Machine with High Printing Precision TX-3050SF
group nameSemi-Automatic Flat Screen Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-3050SF
payment methodT/T
-
update timeSat, 21 Sep 2024 17:31:10 GMT
Paramtents
Printing color 1 color
Operating mode semi-automatic
Printing speed 800pcs/h
Maximum mesh frame size 500*700mm
Printing size 300*500mm
Voltage / power 220V/2.5KW
Dimensions 900*600*1650mm
Use Paper Printer, Label Printer, Card Printer, Tube P
Printing Thickness ≤450mm
Packging & Delivery
Weight230.00kg / set
Min Order1 set
Briefing
It is suitable for screen printing of permanent magnets, electronic panels PCB boards and other products.
Detailed
Application
The servo plane screen printing machine is suitable for high-precision positioning screen printing of permanent magnets, electronic panels, glass panels, ceramic substrates, metal signs, PCB boards and other products.
Specifications
|
Model: TX-3050SF
|
Printing area: 300*500mm
|
Platform size: 400*600mm
|
|
|
Printing thickness: ≤200mm
|
Printing accuracy: ±0.02mm
|
Maximum screen frame: 500*900mm
|
|
|
Printing pressure: 0.5-0.7Mpa
|
Power supply: 220V/2.0KW
|
Maximum number of idling prints: 1400 (PCS/H)
|
|
|
Gross weight: 230(KG)
|
Machine size: 900*600*1650mm
|
Packing size: 1100*750*1800mm |
|
Features
1. Mitsubishi PLC man-machine interface controller makes the operation full of humanization.
2. Vertical structure, the screen frame lift up and down, and the head printer move left and right.
3. Printing and lift of screen frame adopt independent driver, ensure the coordinating action, the stable and adjustable speed.
4. Panasonic servo system drives printing, photocell eye control the printing travel, independent adjustment.
5. Micro registration handle in horizontal and vertical direction make more precise and convenient color registration.
6. Manual, semi auto and auto printing mode are available to choose. The digital control of interval time in auto printing mode can be set from 1 to 9 seconds.
7. Independent printing head up-and-down movementdevice makes the installation and disassembly of scraper, ink blade, and screen frame more convenient.
8. Side clamps adjusting device make the adjustment of screen frame easier.
9. Screen distance adjusting hand wheel can adjust the screen frame quickly.
10. Safety protection device is equipped to ensure the safety of operator.
Machine Details Display
