Semi Automatic Screen Printing Machine For Cylinder Head Gaskets
group nameSemi-Automatic Flat Screen Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-5080ST
payment methodT/T
-
update timeTue, 05 Nov 2024 11:54:04 GMT
Paramtents
Printing color 1 color
Operating mode semi-automatic
Printing speed 1000pcs/h
Printing size 500*800mm
Table Size 600*900mm
Max Frame Size 800*1200mm
Max printing speed 1000pcs/h
Printing Thickness 30mm
Dimension 1460*1150*1650mm
Weight 50KG
Packging & Delivery
Weight520.00kg / set
Min Order1 set
Briefing
Be applied to the flat printing for glass, nameplate, stickers, credit card, Ceramic colored paper, wooden toy puzzles，PCB,SMT tin ointment, and membrane switches in electronic industry .It is also applicable to the flat printing such as golden and silver cardboard ,metal sheet, and other products with the material of PVC, which have high requirement in overprinting.
Detailed
Introduction Semi-automatic Screen Printing Machine For Cylinder Head Gaskets
Application:
Be applied to the flat printing for glass, CD, nameplate, stickers, credit card, Ceramic colored paper, wooden toy puzzles，PCB,SMT tin ointment, and membrane switches in electronic industry .It is also applicable to the flat printing such as golden and silver cardboard ,metal sheet, and other products with the material of PVC, which have high requirement in overprinting.
Main performance
1.Vertical structure with the motor driven printing plate goes up and down vertically, and the motor driven print head moves left/right.
2. Single chip controlled circuit, printing and plate goes up and down using independent driving source.
3. Pneumatic controller controls the printing knife moves up and down, photocell eye controls the stroke, which is independent to tune.
4. Set manual/semi-automatic /automatic three modes , the break time of printing is digital controlled.
5. Independent designed head rising and down setting, makes it convenient to clean the scraping blade/reclaiming blade、screen plate during loading and unloading.
6. Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.
Specification
Model | TX-5080ST | |||||||
Table Size | 600x900mm | |||||||
Substrate Thickness | 0-25 mm | |||||||
Max Printing Area | 500×800mm | |||||||
Printing speed | 1000 pcs/h | |||||||
Maximum screen frame size | 800*1200mm | |||||||
Stacking Height | 300mm | |||||||
Worktable Displacement | ±5mm | |||||||
Power Consumption | 380V/50HZ / 3.2KW | |||||||
Printing pressure | 4.0~6.0 kfg/c㎡ | |||||||
Machine Dimension | 1460*1150*1650mm | |||||||
Machine Weight | 520KG | |||||||
Machine image

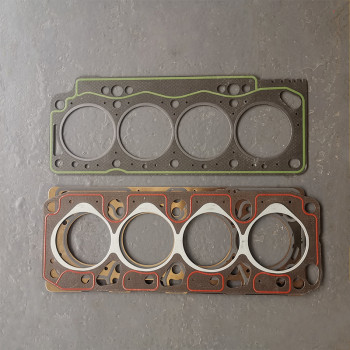

Printing samples
