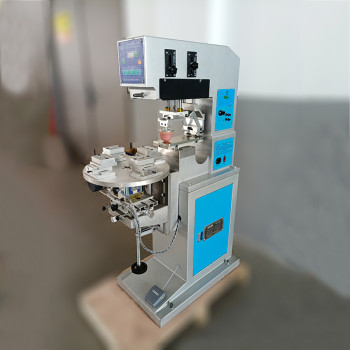

Semi-Automatic Four-Station Rotary Table Single-Color Pad Printing Machine
group nameSemi-Automatic Pad Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTXD-225-90C
payment methodWestern Union, T/T
-
update timeSat, 21 Sep 2024 13:21:43 GMT
Paramtents
Plate size 225×100mm
Max Printing size 80*120mm
Max printing Speed 1000pcs /hour
Drive Electro-Pneumatic
Power 220V /110V /50Hz 50w
Compressed Air 5-6MPA
Dimensions (L*W*H) L 840* W 540* H1470mm
Weight 118kg
Packging & Delivery
Weight120.00kg / set
Min Order1 set
Briefing
This rotary monochromatic pad printer is suitable for precision printing on flat, curved and irregular surfaces with relatively small printing areas on materials such as metal, glass, ceramics, plastic, wood and leather.
Detailed
Application
⦁ Electric, switch, socket, fuse, circuit breaker, button, knob
⦁ Plastic; Hanger, plug, brush, glasses, glass cover
⦁ Automotive; plastic and metal parts, hoses.
⦁ Promotional items; hotel eqipments, pen/pencil, lighter, bottle, cap, lipstick, nail polish bottle
Product Parameters
Plate size： 225×100mm
Oil cup diameter: 90mm
Max Printing size：80*120mm
Max printing Speed：1000pcs /hour
Drive: Electro-Pneumatic
Power: 220V/110V 50W
Compressed Air: 5-6MPA
Dimensions (L*W*H): 840*540*1470mm
Weight: 118KG
Main Features
①The microcomputer controls each function action, the operation is simple and convenient.
②The oil roller is inked, easy to assemble and disassemble and clean.
③ There is a five-digit automatic counter.
④The machine structure adopts high-quality aluminum alloy, which is light and strong.
⑤ Independent up and down stroke and speed adjustment of the plastic head.
⑥Automatic balance scraper, clean and clean ink.
⑦The front and back lines can be empty without dropping the glue head to prevent the ink from drying
out when it stops for a while.
⑧A model that can complete a single product's two colors at a time. The shuttle table has accurate color registration, saves operating procedures without positioning, and increases work efficiency. The two-color shuttle pad printing machine can also be used as a monochrome pad printing machine or a monochrome double-head pad printing machine. Used, is
an enhanced version of the monochrome printing machine.
Details
Printing sample
