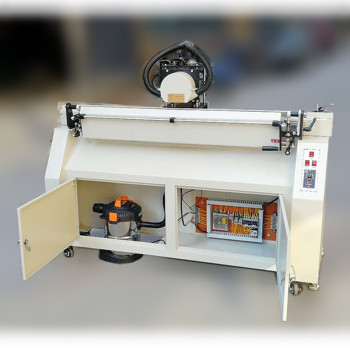

TAOXING Screen Printing Automatic Squeegee Sharpening Machine Scraper Sharpener 1000mm width
group nameScraper Grinder
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-MD1000A
payment methodT/T
-
update timeFri, 08 Nov 2024 11:07:44 GMT
Paramtents
Grinding length 1000mm
Grinding motor 3.3KW
Motor Power 120W
Grind angle 0 -45 degree
Vacuum power 1320kW
Adjustment L/R 0-8cm
Adjustment Upper/lower approx 25-30mm
Grinding method Automatic
Power input 220V / 50Hz
Machine dimension 1550x620x1000mm
Packging & Delivery
Size170cm x 80cm x 120cm
Weight230.00kg / set
Min Order1 set
Briefing
Screen printing squeegeee automatic sharping machine
It is automatic machine for screen printing sharping on the PU squeegee Su as 0° to 45 °
Applicable to Rubber PU squeegee size 800mm, 1000mm, etc.
Custom size is available
It is automatic machine for screen printing sharping on the PU squeegee Su as 0° to 45 °
Applicable to Rubber PU squeegee size 800mm, 1000mm, etc.
Custom size is available
Detailed
Introduction
Application:
screen printing squeegeee automatic sharping machine
It is automatic machine for screen printing sharping on the PU squeegee Su as 0° to 45 °
Applicable to Rubber PU squeegee size 800mm, 1000mm, etc.
Custom size is available
1) Automatic grinding
2) Angle adjustable for squeegee
3) Vacuum cleaner for automatic cleaning grinding dust
4) Long-lasting motor, with 2 years warranty
5) Easy operation
Main Features
1) The shape of the whole machine adopts high temperature electrostatic spraying, which has the advantages of corrosion resistance, wear resistance and not easy to aging.
2) The grinding wheel can be adjusted with step-less speed change, stable balance, and automatically change steering with the stroke direction.
3) The grinding stroke adopts a motor + precision linear guide, which alternates back and forth at a constant speed, smoothly sliding.
4) Lever-type glue squeegee, fast and stable clamping, and the squeegee length/grind angle can be adjusted synchronously.
5) Equipped with a dirt vacuum cleaner to suck debris, the suction path will automatically turn with the stroke to reduce industrial pollution, so as to achieve a dust-free and environmentally friendly working environment.
6) There is no sense of pressure during grinding, the squeegee is not deformed, and there is no wavy phenomenon to ensure grinding accuracy.
7) The grinding angle is 0-45 degrees to match various brand squeegees to give full play to the printing efficiency, wide range of use, and easy operation without professional skills.
Detailed Images
Specification
Technical Parameters
Model: TX-MD1000A
Grinding length: 1000mm
Grinding motor: 330kW(Taiwan)
Motor Power: 120W
Grind angle: 0 -45 degree
Vacuum power: 1320kW
Adjustment L/R: 0-8cm
Adjustment Upper/lower： 0-10cm
Grinding method： Automatic
Power input： 220V / 50Hz
Machine dimension： 1550x620x1000mm
