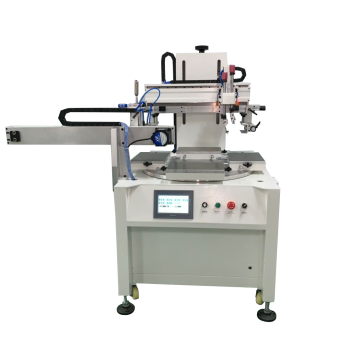

Brake Pad Printing Machine Rotary Table with Take-off Screen Printing Machine High Productivity TX-2030FT
group nameSemi-Automatic Flat Screen Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-2030FT
payment methodT/T
-
update timeSat, 21 Sep 2024 17:50:50 GMT
Paramtents
Max Dia ∮240mm
Fixture diameter ∮360mm
Fixture height 100mm
Maximum printing thickness 120mm
Precision platform ±0.03mm
Precision trimming range ±10mm
Printing speed 1200-1500 pcs/h
Applicable air 6-8kg/cm2
Weight About 400kg
Ground to the bottom of the disc 730mm±10mm
Dimensions 720*1000*1950mm
Packging & Delivery
Weight400.00kg / set
Min Order1 set
Briefing
Screen printing of various thicknesses, specializing in screen printing of acrylic, glass, plastic panels and other products
Detailed
Introduction
Application
Screen printing of various thicknesses, specializing in screen printing of acrylic, glass, plastic panels and other products.Specification
Model: TX-2030P-4T
Max Dia: ∮240mm
Fixture diameter: ∮360mm
Fixture height: 100mm
Maximum printing thickness: 120mm
Precision platform:±0.03mm
Precision trimming range: ±10mm
Printing speed: 1200-1500time/H
Applicable air： 6-8kg/cm2
Weight：About 400kg
Ground to the bottom of the disc：730mm±10mm
Features
★Main performance
1. Three-station turntable design,Reduce printing waiting time,effectively improve production.
2. Table rotation mechanism is Taiwan Precision 80DT divider,Accurate positioning and fast speed,No noise and vibration,,long service life.
3. The rotating chassis adopts aluminum alloy plate disk,The fixture discs are all made of hard oxidation special process, which is precise and durable, easy to clean;
4. Up and down lifting and left and right printing are controlled by servo motors,The printing speed is adjustable,With imported precision double linear guide,Smooth and precise operation;
5. PLC control+ LCD ,Touch screen operation panel,Sensitive operation,Perfect function;The whole machine is equipped with multiple protection systems to ensure safe and reliable operation;
6. Left and right stroke photoelectric switch limit, manual adjustment of screen printing stroke;
7. The scraper constant pressure device ensures the pressure in the printing is stable;
Machine image
Printing samples
